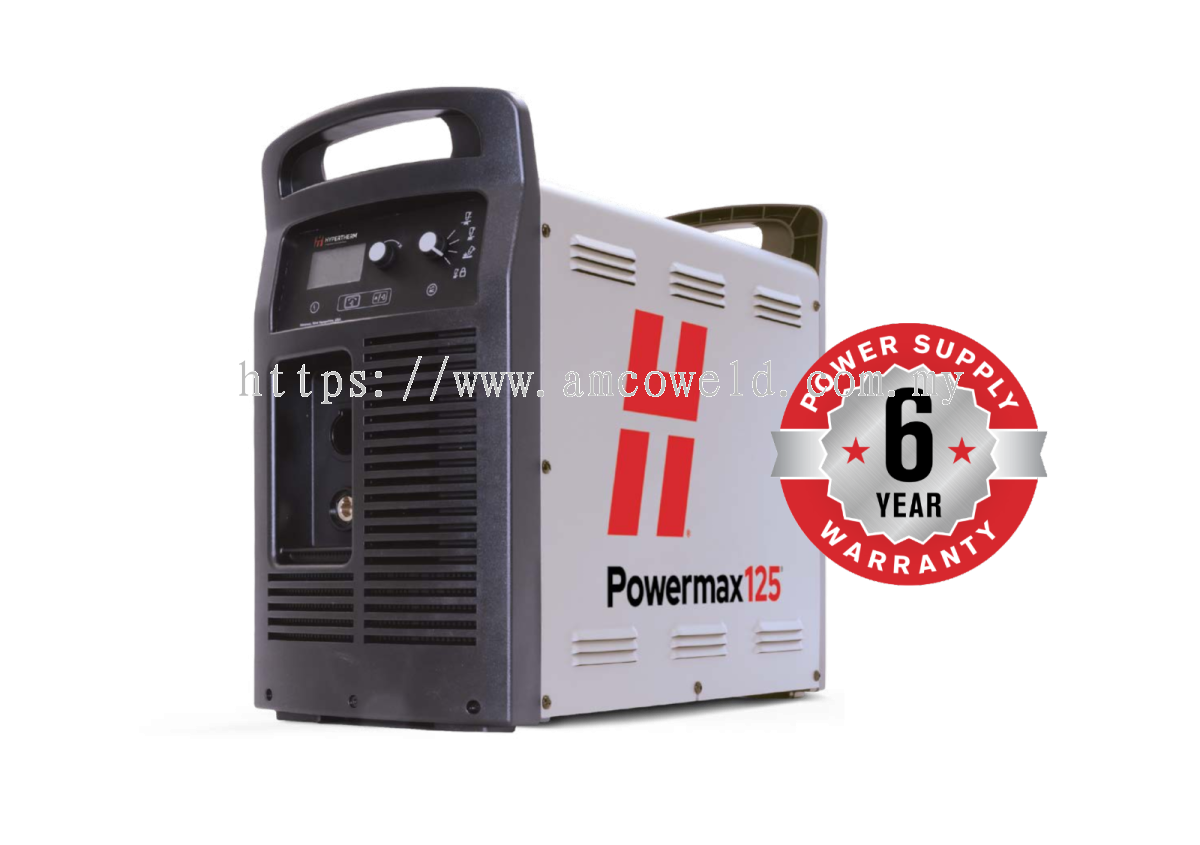

The Hypertherm Powermax125 is a high-performance plasma cutting system engineered for heavy-duty cutting and gouging applications. Delivering maximum power, a 100% duty cycle, and advanced Smart Sense technology, it provides fast, precise cutting and efficient metal removal for industrial fabrication and automation environments.

Highlighted product features:
Easy to use
• No need to change the air pressure – Smart Sense™ technology ensures it’s correctly set
• Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting
• Superior cut and gouge quality lets you spend less time on grinding and edge preparation
• Electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused
• 100% duty cycle maximizes your operating time

Low operating costs
• Eleven Duramax Hyamp™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, extended reach cutting, and robotic cutting
• Six types of consumables for drag cutting, fine feature cutting, flush cutting, mechanized cutting, plus maximum control and removal gouging

Industry-leading reliability
Powermax plasma cutters are known to last decades in the field, minimizing maintenance and downtime
• Power supplies and torches are engineered for rugged industrial environments
• Each Powermax component is tested to perform reliably in demanding conditions
• SpringStart™ technology ensures consistent starting and a more reliable torch

Cut capacities

Cut capacity	Thickness	Cut speed
Recommended	38 mm (1-1/2")	457 mm/min ( 18 ipm)
	44 mm (1-3/4")	250 mm/min (10 ipm)
Severance (hand cutting)	57 mm (2-1/4")	125 mm/min (5 ipm)
Pierce*	25 mm (1")

*Pierce rating for handheld use or with automatic torch height control

Gouge capacity	Metal removal rate	Groove profile
Typical gouge	12.52 kg/hr (27.6 lbs/hr)	4.3–7.9 mm D x 6.1–9.9 mm W (0.17–0.31" D x 0.24–0.39" W)

Torch output**	21.9 kW
	125 A x 175 V ÷ 1000 W = 21.9 kW

**Higher output voltage at the torch plus efficiently designed consumables result in a faster, cleaner cut.

SPECIFICATIONS - CSA (for use in the Americas and Asia, except China)

Input voltages (± 10%)	80/600 V, 3-PH, 50/60 Hz
Input current @ 12.2 kW	480/600 V, 31/24 A
Output current	30–125 A
Rated output voltage	175 VDC
Duty cycle @ 40° C (104° F)	100% @ 125 A, 480/600 V, 3-PH
Open circuit voltage (OCV)	320 VDC
Weight with 7.6 m (25') torch	480 V 47.9 kg (105.7 lbs)
Weight with 7.6 m (25') torch	600 V 47.5 kg (104.7 lbs)

SPECIFICATIONS - CE (for use in Europe, Australia & New Zealand - RCM, Serbia, UK - UKCA, Ukraine, and other countries where accepted)

Input voltages (± 10%)	400 V, 3-PH, 50–60 Hz
Input current @ 12.2 kW	380 V, 3-PH, 38 A
Input current @ 12.2 kW	400 V, 3-PH, 36 A
Output current	30–125 A
Rated output voltage	175 VDC
Duty cycle @ 40° C (104° F)	100% @ 125 A, 380/400 V, 3-PH

Open circuit voltage (OCV)	305 VDC
Weight with 7.6 m (25') torch	380 V 45.2 kg
Weight with 7.6 m (25') torch	400 V 48.9 kg

SPECIFICATIONS - CCC (for use in China)

Input voltages (± 10%)	380 V, 3-PH, 50/60 Hz
Input current @ 12.2 kW	380 V, 3-PH, 38 A
Input current @ 12.2 kW	400 V, 3-PH, 36 A
Output current	30–125 A
Rated output voltage	175 VDC
Duty cycle @ 40° C (104° F)	100% @ 125 A, 380/400 V, 3-PH
Open circuit voltage (OCV)	290 VDC
Weight with 7.6 m (25') torch	380 V 45.2 kg
Weight with 7.6 m (25') torch	400 V 48.9 kg

General specifications:

Dimensions with handles	483 mm D; 233 mm W; 430 mm H (19” D; 9.2” W; 17” H)
Gas supply	Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate/pressure	Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi)
Recommended gas inlet flow rate/pressure	Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi)

Input power cable length	3 m (10')
Power supply type	Inverter – IGBT
Engine drive requirement	40 kW or 50 kVA for full 125 A output
Electrical efficiency	91%–92%
Recyclability	100%
Warranty	Power supply: 6-year, Torch: 1-year
