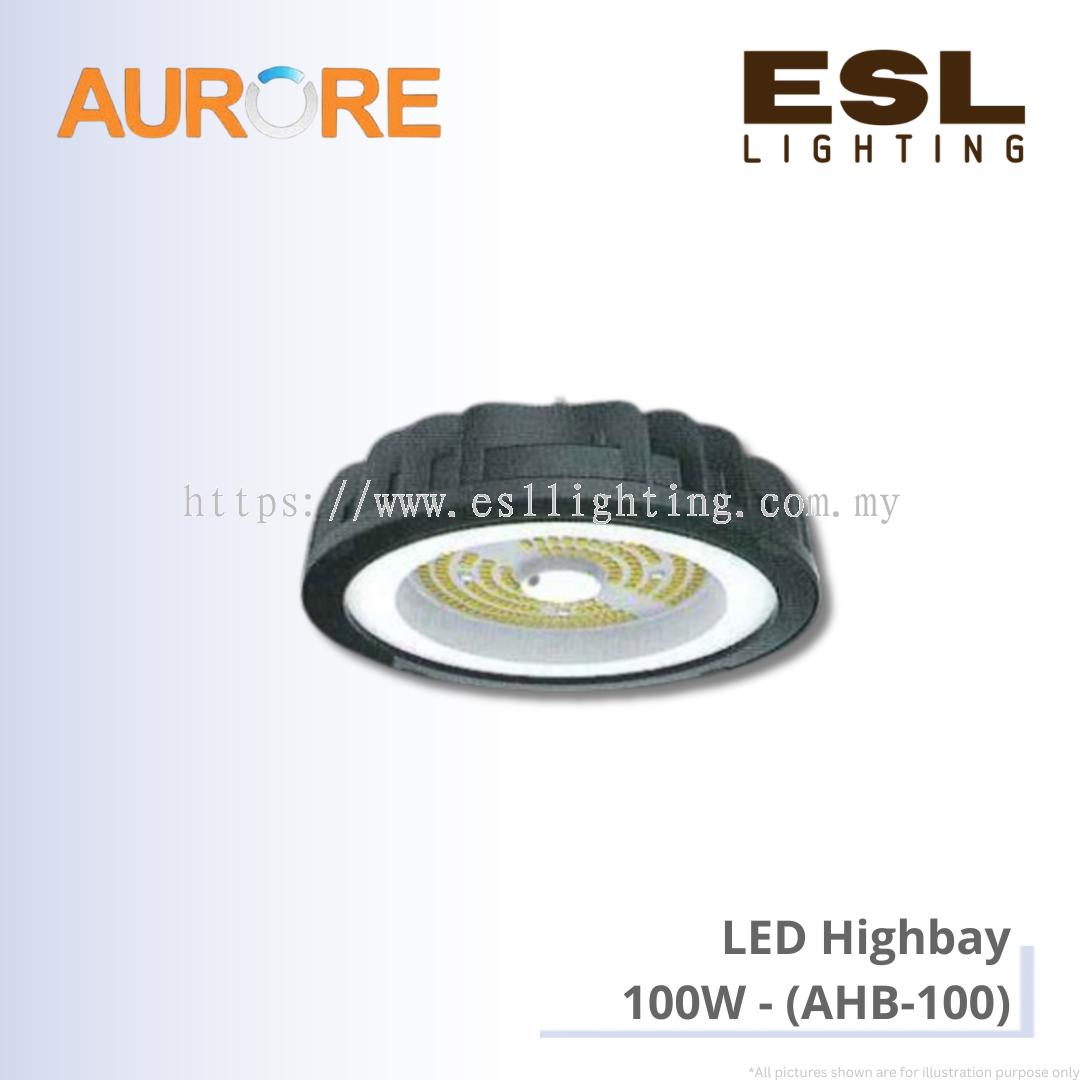

AURORE 100W Highbay LED Light AHB-100

The AURORE LED Highbay 100W (Model: AHB-100) is a high-performance commercial and industrial LED fixture engineered for commercial spaces, factories, workshops, and high-ceiling warehouses across Malaysia. Delivering an impressive output of 12,000 lumens at 120 lm/W, it offers maximum brightness while cutting energy consumption by up to 60% compared to traditional metal halide or sodium bay lights. Designed with a wide 115° beam angle and a custom Ø 355*100mm aluminium reflector, the AHB-100 provides superior light distribution, eliminating dark zones across working floors. Operating on standard 220–240V AC with options for 4000K (Cool White) and 6500K (Daylight) color temperatures, this long-life fixture (30,000-hour rating) delivers high color fidelity (RA≥80) to improve operational safety and productivity in demanding workspace environments.

Full Description:

High-Lumen Output for Industrial Spaces

Lighting quality directly impacts workplace efficiency, accuracy, and safety. The AURORE AHB-100 LED Highbay 100W delivers a powerful 12,000 lumens of clean illumination. Whether installed in logistics hubs, automotive workshops, manufacturing plants, or retail storehouses, the AHB-100 maintains consistent brightness across expansive overhead areas. The high efficiency of 120 lm/W ensures that facility owners enjoy optimal lux levels without incurring excessive electricity costs.

Engineered Thermal & Optical Control

Featuring a compact main body (Ø 220*60mm) paired with a high-grade aluminium reflector (Ø 355*100mm), the AURORE AHB-100 optimizes heat dissipation while controlling beam directivity. The included reflector manages glare and maximizes the 115° beam angle, making it ideal for ceiling clearance heights between 4 meters to 8 meters. The heavy-duty aluminium structure aids heat transfer, protecting internal driver components and extending operational life under hot Malaysian indoor conditions.

Natural Color Rendering & Dual CCT Options

With a Color Rendering Index (RA) of ≥80, the AURORE AHB-100 renders colors accurately, reducing strain during detail-oriented assembly or stock identification. Facilities can choose between two specialized Color Temperatures (CCT):

4000K (Cool White): Ideal for commercial showrooms, hypermarkets, and assembly lines where a balanced, comfortable visual environment is required.
6500K (Daylight): Preferred for industrial plants, logistics hubs, and processing factories requiring maximum visual alertness and crisp white light.

Energy Savings & Low Maintenance

Rated for 30,000 operating hours, the AURORE AHB-100 drastically reduces replacement frequency and maintenance overheads compared to legacy HID fixtures. Designed for local power grids with an input range of 220-240V AC, it operates reliably without suffering performance drops from typical voltage fluctuations. Switching to AURORE 100W Highbay LEDs provides immediate energy savings, helping facilities achieve green energy compliance while lowering operational expenditures.

Specifications

Item: AHB-100
Wattage: 100W
Input Voltage: 220-240V
Colour Temperature (CCT): 4000K/6500K
RA:80
Lumens: 12000lm
Beam Angle: 115°
Lifetime: 30000 hrs
Lamp Size: Ø 220*60
Aluminium Reflector Size: Ø 355*100

Q1: What ceiling height is suitable for a 100W LED highbay light?
A:A 100W LED highbay light like the AURORE AHB-100 (12,000 lumens) is ideal for ceiling heights between 4 to 8 meters (13 to 26 feet). Its wide 115° beam angle provides even lighting coverage across floor surfaces at this mounting height.

Q2: How many lumens does a 100W LED highbay produce?
A:The AURORE AHB-100 100W LED Highbay produces 12,000 lumens, yielding an energy-efficient luminous efficacy of 120 lumens per watt (lm/W).

Q3: Which color temperature is better for factory lighting: 4000K or 6500K?
A:6500K (Daylight) is preferred for heavy industrial, sorting, and warehouse areas because it promotes focus and alertness. 4000K (Cool White) is better suited for commercial showrooms, retail warehouses, and assembly bays where softer visual contrast is required.

Q4: Can the AURORE AHB-100 replace a 250W Metal Halide highbay light?
A: Yes. A 100W LED highbay delivering 12,000 lumens directly replaces a standard 250W traditional Metal Halide or Sodium fixture, cutting power consumption by up to 60% while eliminating warm-up times.

Q5: What is the benefit of the Ø 355mm aluminium reflector on the AURORE AHB-100?
A: The Ø 355*100mm aluminium reflector directs light downwards, minimizes glare for forklift operators, and helps disperse heat away from the core LED chip set.

Q6: What input voltage does the AURORE 100W LED Highbay require in Malaysia?
A:The AURORE AHB-100 operates on 220–240V AC, matching standard commercial and industrial electrical supply specifications across Malaysia.

Q7: What does RA ≥ 80 mean for industrial LED lighting?
A: RA (Color Rendering Index) measures how accurately a light source shows true object colors relative to natural sunlight. An RA ≥ 80 ensures clear color recognition, which is critical for safety signage, wiring tasks, and quality control.

Q8: How long does a 30,000-hour LED highbay light last in daily operation?
A: If operated for 12 hours daily, a 30,000-hour LED highbay light like the AURORE AHB-100 will last approximately 6.8 years with zero lamp replacements.

Q9: Where can I buy 100W LED highbay lights for warehouses in Malaysia?
A: Highbay LED lights can be sourced directly through certified M&E electrical distributors, industrial lighting suppliers, and official online storefronts supplying Malaysia-wide delivery.
