Description

Tohnichi QLLS/CLLS/PQLLS/PCLLS/TiQLLS/YCLLS Torque Wrench

Pokayoke torque wrench with limit switch output to eliminate missed tightening.

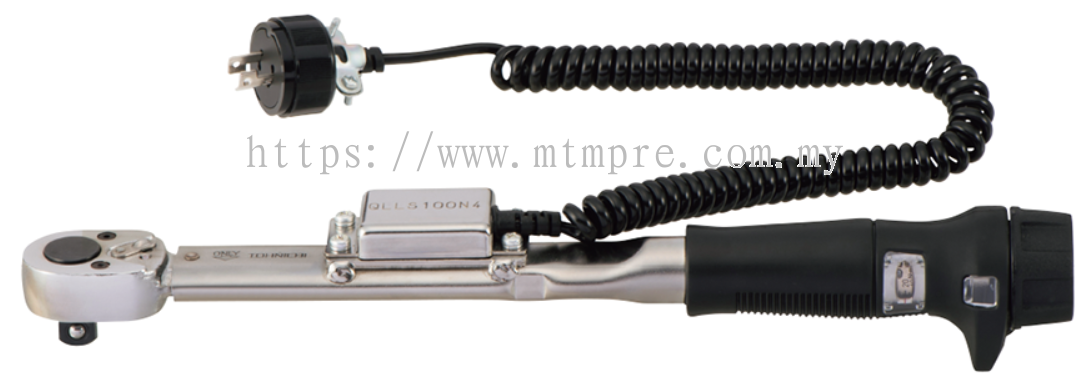

QLLS100N4

PCLLS200NX19D

QLMS15N

You can modify the wireless Pokayoke (error-proofing) torque wrench on your own by using the LS part of your existing LS torque wrench to replace the mounting on the T-FHLS transmitter. Please contact us for details.

Application

Pokayoke (tightening assurance).

Features

Adjustable style torque wrench with limit switch output.
Upon reaching the set torque, the torque wrench "clicks" to complete tightening while the limit switch simultaneously sends out a contact signal.
A limit switch can be connected to a CNA-4mk3 count checker (sold separately) to easily create a tightening count management system.
Signals from a limit switch are captured on a programmable logic controller (PLC) or similar device to establish a Tightening Assurance System using assembly line interlock controls.
LS wrenches are supplied with a durable curl cord.
CLLS, PCLLS, and YCLLS series products are interchangeable head torque wrenches. Tohnichi’s interchangeable head lineup offers the best selection in the world, making these wrenches ideal for your work.
You can modify the wireless Pokayoke (error-proofing) torque wrench on your own by using the LS part of your existing LS torque wrench to replace the mounting on the T-FHLS transmitter. Please contact us for details.
Except for some products, the QLLS/CLLS/PQLLS/PCLLS/TiQLLS/YCLLS Series are compliant with ISO 6789:2017 starting January 2022. For more information, see the technical data “Initiatives for ISO 6789:2017” at the bottom of the screen.

Specifications

MODEL	DIMENSION	WEIGHT [kg]	MODEL	DIMENSION	WEIGHT [kg]	MODEL	DIMENSION	WEIGHT [kg]	MODEL	DIMENSION	WEIGHT [kg]
MODEL	!［mm］	WEIGHT [kg]	MODEL	!［mm］	WEIGHT [kg]	MODEL	!［mm］	WEIGHT [kg]	MODEL	!［mm］	WEIGHT [kg]
QLMS2N-MH	27.3	0.35	CLMS2NX8D-MH	27.3	0.32	PQLMS5N	27.3	0.34	PCLMS5NX8D	44	0.31
QLMS5N-MH	27.3	0.35	CLMS5NX8D-MH	27.3	0.32	PQLMS10N	31.5	0.38	PCLMS10NX8D	49	0.35
QLMS10N-MH	31.5	0.38	CLMS10NX8D-MH	31.5	0.35	PQLMS15N	31.5	0.38	PCLMS15NX8D	49	0.35
QLMS10N		0.48	CLMS10NX8D	31.5	0.45	PQLLS25N	33.5	0.39	PCLLS25NX10D	58.5	0.39
QLMS15N		0.48	CLMS15NX8D	49	0.45	PQLLS50N	48.5	0.57	PCLLS50NX12D	78.5	0.49
QLMS15N-MH		0.38	CLMS15NX8D-MH	49	0.35	PQLLS100N4	80.5	0.82	PCLLS50NX15D	88.5	0.49
QLLS25N5	33.5	0.5	CLLS25N5X10D	58.5	0.47	PQLLS140N	100.5	0.92	PCLLS100NX15D	120.5	0.65
QLLS50N	48.5	0.62	CLLS50NX12D	78.5	0.54	PQLLS200N4	178.5	1.67	PCLLS140NX15D	135.5	0.8
QLLS100N4	80.5	0.86	CLLS50NX15D	88.5	0.54	PQLLS280N	248.5	2.3	PCLLS200NX19D	223.5	1.47
QLLS140N	100.5	0.96	CLLS100NX15D	120.5	0.69	PQLLS420N	448.5	3.8	MODEL	DIMENSION	WEIGHT [kg]
QLLS200N4	178.5	1.57	CLLS140NX15D	135.5	0.84	MODEL	DIMENSION	WEIGHT [kg]	MODEL	!［mm］	WEIGHT [kg]
QLLS280N	248.5	2.47	CLLS200NX19D	223.5	1.37	MODEL	!［mm］	WEIGHT [kg]	YCLLS10N2X10D	67	0.52
QLLS420N	498.5	4.07	CLLS280NX22D	308.5	2.17	TiQLLS180N	178.5	1	YCLLS20N2X10D	67	0.52
			CLLS420NX22D	498.5	3.57	TiLQLLS180N	178.5	1.1	YCLLS40N2X12D	88	0.7
						TiEQLLS360N	355.5	2.5	YCLLS70N2X12D	88	0.7

Notes

SI unit QLMS2N-MH, QLMS5N-MH, CLMS2NX8D-MH, CLMS5NX8D-MH, PQLMS5N, and PCLMS5NX8D, and metric unit products 20QLMS-MH, 50QLMS-MH, 20CLMS-MH, 50CLMS-MH, 50PQMSL, and 50PCLMS are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates will be different from older products. American unit products are not compliant with ISO 6789:2017.

Dimensions

Expand dimensions
