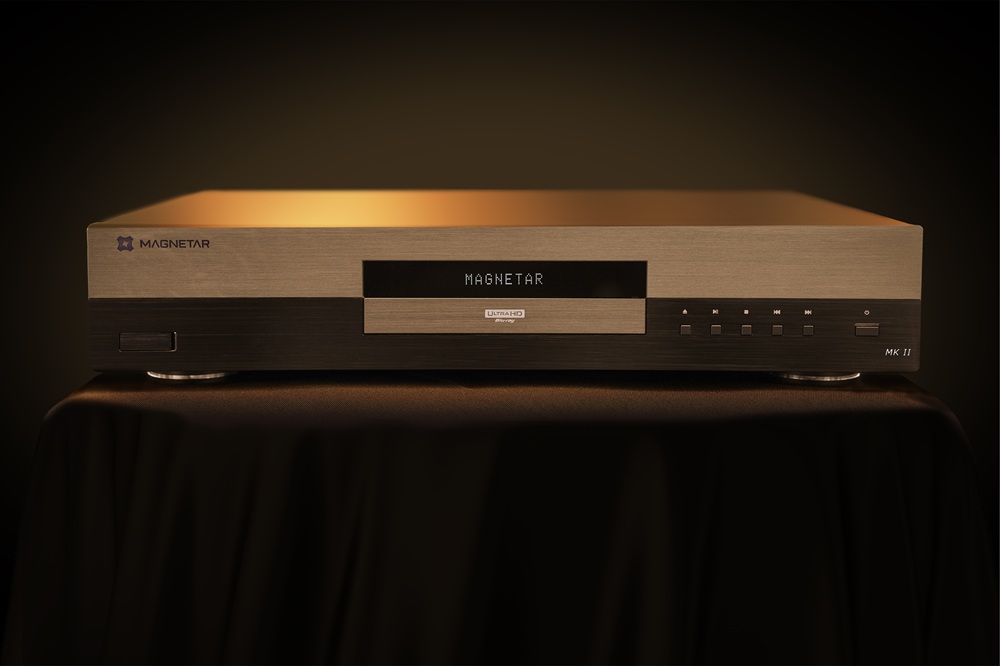

Magnetar UDP 800 MK II - Bluray Player

Magnetar UDP 800 MK II - Bluray Player

~Roon Ready in certification

~Newly redesigned 2.0 audio boards with seven OPA1602 op-amps

~TMDS retiming on HDMI audio port

~Enhanced USB 3.0 system with isolated power

~Upgraded copper wiring and Amphenol/JST connectors

~Control 4 Support

~Crestron Support

Advanced Image/Audio Processing Technology

High-quality copper-core wires are used throughout the device, the in-machine PCB connectors have been upgraded to JST and Amphenol brands, enhancing the stability and reliability of the connections.

Stunning Audio - Visual Quality

Adding the TMDS retiming function to the mainboard’s HDMI AUDIO port, which can effectively compensate for random jitter, provide better signal quality and load-carrying capacity
and further improve the HDMI audio quality, making the sound details richer.

Versatile Compatibility

Adding a USB3.0 HUB chip and redesign the USB3.0 power supply to improve the compatibility and stability of the USB3.0 port, so as to better adapt to USB flash drives and hard drives.
The optimization also enhances the stability of data transmission and increases the transmission speed, thus achieving better sound and picture effects.

Operational Amplifier

Replacing the operational amplifiers with seven OPA1602s.  Its low noise reduces audio distortion for clearer sound. High precision ensures accurate signal reproduction,
creating audiophile-grade sound.

Roon Ready

Roon Ready is a partner program that lets UDP800 MKII auto-connect to Roon without configuration for bit-perfect audio. Working with Roon’s multi-platform music platform,
UDP800 MKII delivers powerful, flexible networked audio with easy setup and top reliability for great listening experiences.


Specification :-

Disc formats

UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE Outputs

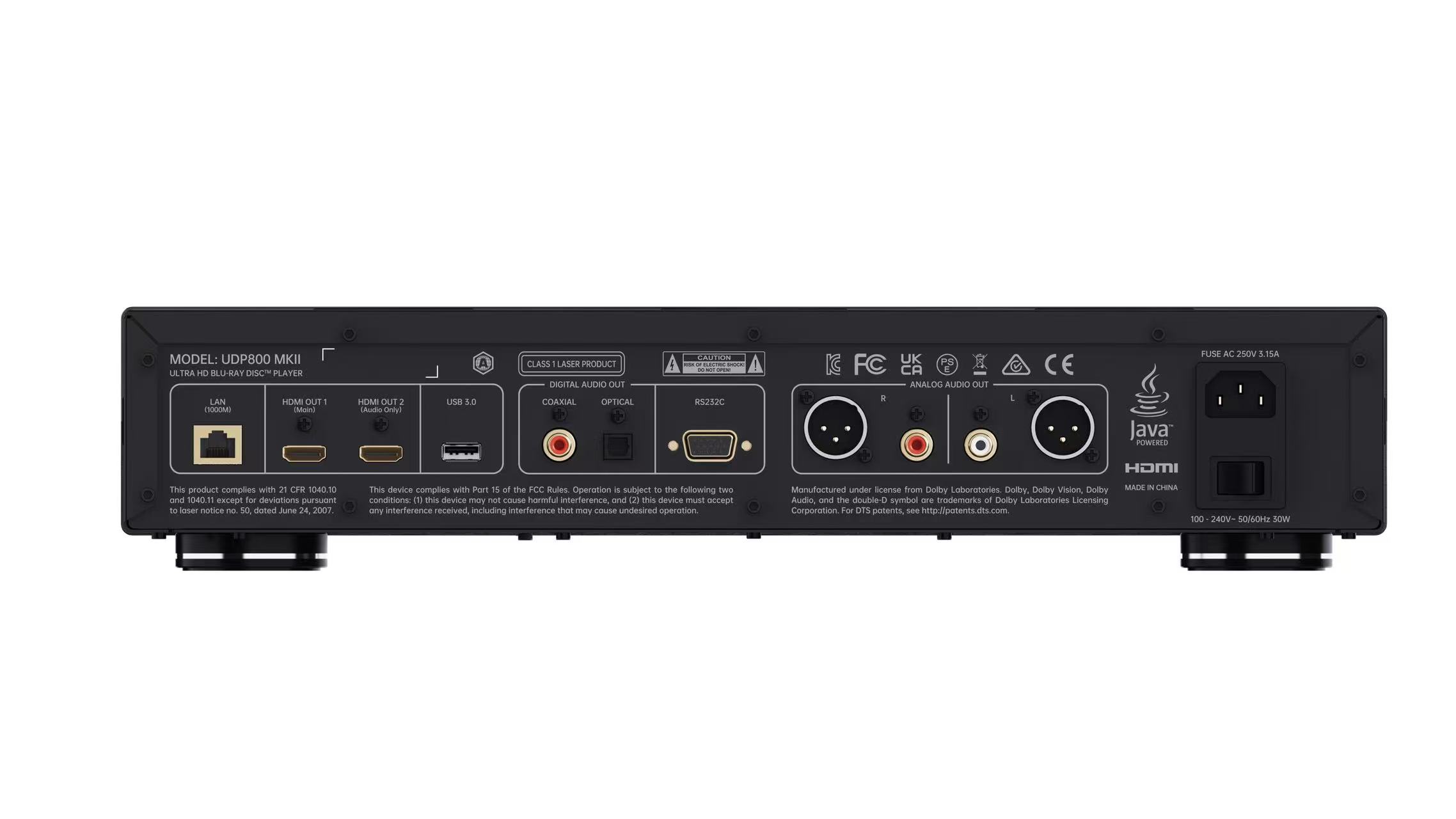

Analog audio : stereo

Independent stereo analog audio: XLR balanced output, RCA output

Optical/coaxial audio: up to 2 channels /192kHz PCM, Dolby Digital, DTS

HDMI audio : up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream

HDMI video : UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct.

Analog audio characteristics

Frequency range : 20Hz-20kHz (±0.05dB)

Signal-to-noise ratio : ≥120dB

Total harmonic distortion + Noise : ≤0.01%

Output level : (RCA) 2. 1±0.2Vrms; (XLR) 4.2±0.4Vrms

Dynamic range: AGT : ≥120dB

Channel separation :  ＞100dB (RCA); ＞120dB (XLR)

Power supply : AC 100-240V ~, 50/60Hz

Power consumption : <30W, Standby<0.5W

Size : 430 mm x 300 mm x 90 mm

Weight : 6.8kg

Operating temperature :  5° C ~ 35° C （41° F ~ 95° F）

Operating humidity : 15% ~ 75%
