Card based controller for access control and time attendance system.

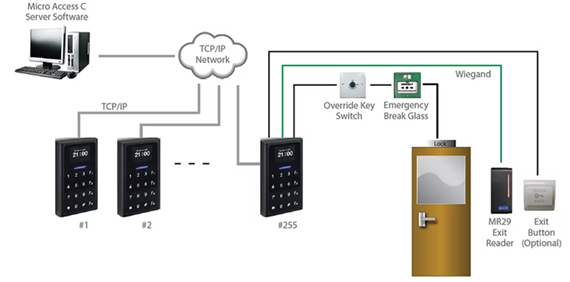

Work as standalone system or link to software via TCP/IP connection.
Support both card and password verification mode.
Built-in web server for real-time control export of logs data and online check logs.
Support real time log PUSH methodology.
Configurable Event Handle and short message service alert thru email.
Designed with auto obtain TCP/IP (DHCP) to simplifies network connection setup.
Available in Mifare format.
Ideal for various environments such as offices, factories, educational
institutions and residential complexes.
| Verification Mode | Card / Password | Time Set/Time Zone/Group | 255/120/255 Sets |
| Capacity | 60,000 Users | Door Opening Time | 0-65535 seconds |
| Log Data | 30,000 | LCD Display | Yes |
| System Log | 1,536 | LED Indication | Blue / Green / Red LED |
| DIO Support | DI: 3 / DO: 1 | Touch Keypad | Yes |
| Communication Interface | Wiegand, TCP/IP | Operation Temperature | 0°C - 55°C |
| WG In & Out | 26 or 34 bits | Operation Humidity | 5% - 80% RH |
| Holiday/Fast Register | Yes/Yesge/Fast Register | Power | DC 9-24V, 1A |
| Function Key | 400 (Auto/Manual) | Weight | 250g |
| Anti-Pass Back/Anti Duress | Yes/Yes | Dimension | 144 x 80 x 18.35 mm |
