MX62 is a state-of-the-art access control designed to offer streamlined installation,
secure communication and enhanced connectivity.
Equipped with Web-Based OSDP and Wiegand support,

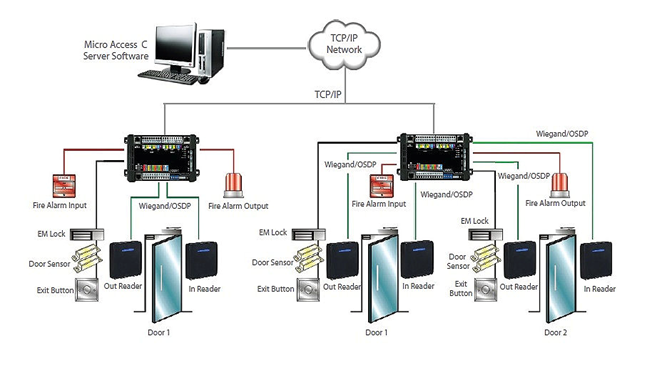

the MX62 ensures flexible connectivity options for single or multi-door access control applications.
Capable of connecting with 4 pcs of Wiegand reader or 4 pcs of OSDP readers.
Easy wiring installation with color-coded terminal blocks.
AES-128 / TLS 1.2 / HTTPS encryption for secure communication against potential threats.
Build-in web server for real time control, export logs data and online check logs.
Flexible IP configuration options with DHCP and static IP mode.
Tailored for building automation, security systems, and industrial environments.
| Door Capacity | 1/2 Doors | DIN Rail Mount | Support |
| Card Capacity | 200,000 | Fire Alarm Input | Yes |
| Access Log Capacity | 500,000 | LED Indication | 5 LED |
| System Log Capacity | 10,000 | Processor / Memory | 32-bits / 16MB Memory |
| OSDP Readers Connection | 4 | TCP/IP Interface | 10/100M base |
| Wiegand.Readers Connection | 4 | Communication with Software | AES-128 / TSL 1.2 / HTTPS |
| Exit Button | 2 | IEEE POE 802.3af/at Compliant | Optional |
| Door Lock Relay | 2 | Extra Event Relay | 4 (Optional) |
| Door Sensor | 2ge/Fast Register | Operation Humidity | 20% - 85% RH |
| Aux. Input | 2 | Power Requirement | DC 12-14V, 1.5A |
| Built-in Event Relay | 2 | Dimension | 183 x 111 x 40 mm |
