MX63 is designed for streamlined setup, saving both time and costs
Optional with 30W PoE (Power over Ethernet) 802.3 to simplifies installation
with power and data over a single cable, reducing the need for additional wiring.

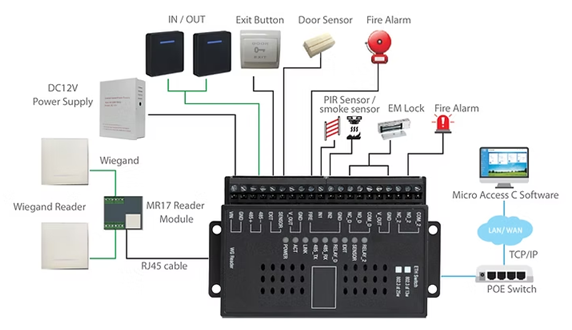

Capable of connecting with 2 pcs of Wiegand reader or 2 pcs of OSDP readers.
User-friendly dip switch settings for quick configuration and operation mode adjustments.
NDDA Compliance to meets the latest security standards, ensuring
robust protection and reliability.
Manage and monitor access control systems seamlessly through
centralized software for enhanced oversight.
Space-saving and easy to install with standard RJ-45 Cat-5e/ Cat-6
cables for fast connectivity.
Comes with five inputs and two outputs for detailed door status
tracking, ensuring comprehensive security coverage.
| Door Capacity | 1Door (On-Board Access) | Clock Battery Backup | 3V Lithium Rechargeable Battery |
| Card Capacity | 20,000 | LED Indication | 9 LED |
| Access Log Capacity | 65,000 | TCP/IP Interface | 10/100 Base-T |
| Access Levels | 255 | Wiegand Format | 26 to 66 bits |
| Verification Mode | Card or PIN or Card + PIN | RS485 | For OSDP reader |
| CPU | ARM 32 bits | Power Consumption | < 200 mA ±5% under DC12V |
| Memory | 16 MB Flash | Operation Voltage | 9 ~ 24V DC / 1A |
| Reader Support | 2 OSDP V1/V2 readers or | Operation Temperature | 0°C ~ 65°C |
| 2 Wiegand readers | |||
| Input | 5: Door Sensor x 1, Exit Button x 1, | Operation Humidity | 5% - 88% RH |
| Aux Input x 2, Fire Alarm x 1 | |||
| Output | 2 Relay: Door Lock Relay x 1, | Weight | 120g / 140g (with POE) |
| Event Alarm relay x 1 | |||
| POE | 802.3 at 30W | Dimension | 121 x 72 x 29 mm |
| (optional 802.3 af 12W) |
