MX60D Multi-Door
Network Door Access Controller

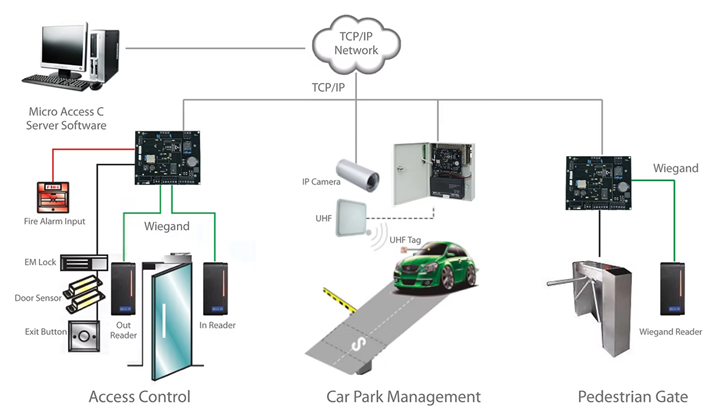

• The Wiegand Door Access Panel is designed to support 1 to 4 doors,
  suitable for variety of access control application and car parking solution.

• Built-in web-based for managing user accounts and system configurations.

• Support real time log PUSH methodology.

• IP Camera integrated if needed for real time image monitoring.

• Configurable Event Handle and short message service alert thru email.

• Economic solution for RFID card access control site.

• Ideal for various environments such as offices, factories,
  educational institutions and residential complexes.

• Optional 4 relay box module for 3 events handle and 1 security or
  energy saving.



  Model	MX60-D1	MX60-D2	MX60-D4
  Door Capacity	1	2	4
  Wiegand Interface	2	4	4
  Exit Button Connection	1	2	4
  EM Lock Connection	1	2	4
  Door Sensor Connection	1	2	4
  Two Ways Access Control	Yes	Yes	No
  Inter-locking	No	Yes	Yes
  Power Consumption	1A	1.5A	2A
  Dimension / Weight	138 x 114 x 27 mm / 150g	200 x 114 x 27 mm / 200g	200 x 114 x 27 mm / 250g
  Power Requirement	DC 9 – 24V	DC 9 – 24V	DC 9 – 24V
  User Capacity	20,000	20,000	20,000
  Access Logs / System Logs	60,000 / 1,500	60,000 / 1,500	60,000 / 1,500
  Time Sets / Time Zones / Group	255 / 120 / 255	255 / 120 / 255	255 / 120 / 255
  Door Opening Time	1-65,535 seconds (adjustable)	1-65,535 seconds (adjustable)	1-65,535 seconds (adjustable)
  Fire Alarm Connection	Yes	Yes	Yes
  TCP/IP Interface	Yes	Yes	Yes
  Wiegand Output	Wiegand 26 or 34 Bits	Wiegand 26 or 34 Bits	Wiegand 26 or 34 Bits
  Max.Range.for.Wiegand .Reader	80 Meters	80 Meters	80 Meters
  Door Access Features	Force door open alarm	Force door open alarm	Force door open alarm
  	First Card Unlock Door	First Card Unlock Door	First Card Unlock Door
  	Multi-card Access	Multi-card Access	Multi-card Access
  	Antipassback	Antipassback	Antipassback
  Operation Temperature	0 ~ 55°C	0 ~ 55°C	0 ~ 55°C
  Operation Humidity	5% ~ 80% RH	5% ~ 80% RH	5% ~ 80% RH
