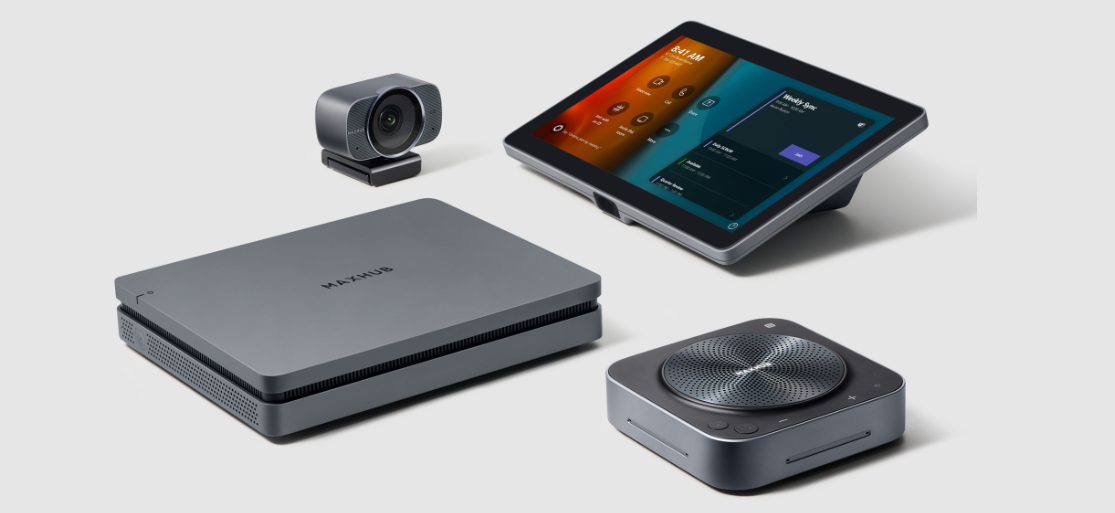

A single cable connects the Windows Compute to the Touch Console and incorporates a high-quality UC BM35 Speakerphone and UC W31 USB Camera. The Kit also helps to facilitate the switch to Microsoft Teams Rooms Smart Spaces for BYOD scenarios, enhancing Teams-native audio and video experiences while accommodating cost-balancing needs.
The MAXHUB XT10-WS kit has undergone a series of stringent Microsoft compatibility and certification processes. It comes with a 3-year advanced replacement warranty and local support, ensuring a seamless user experience and uninterrupted workflow for Microsoft Teams Rooms, while accommodating cost-balancing needs. MAXHUB is one of the largest global one-stop UC endpoint hardware providers for hybrid collaboration meeting solutions, including high-quality display and UC equipment. Our solutions seamlessly integrate with existing meeting systems, unlocking the full potential of boundless collaboration.
| Model | Mini-PC XC13T |
| Product Specification | |
| Type | Mini-PC |
| CPU | 12th Gen Intel i3 |
| Memory | 8GB DDR4 3200MHz SO-DIMM x 2 |
| Storage | 128GB SATA SSD (M.2-2280 SATA3 up to 6Gb/s) |
| Graphics | Intel® UHD Graphics for 12th Gen Intel® Processors |
| Network | 1000Mbps RJ45 |
| Operating System | Windows 11 loT Enterprise SAC |
| I/O Port | |
| USB-A 3.0 | 4 |
| LAN | 1 |
| USB-C (for Teams Rooms Console) | 1 |
| HDMI Out | 1 |
| Audio Out | 1 |
| AC Power | 1 |
| Kensington Slot | 1 |
| Touch Control Panel TCP20T | |
| Display | |
| Size | 10.1 inch |
| Resolution | 1920 (H) x 1200 (V) |
| Frequency Refresh Rate | 60Hz |
| Back Light Unit | ELED |
| Brightness with Glass | Min.250cd/m², Typ.300cd/m² |
| Life Time | ≥ 20000 Hours |
| I/O Port | |
| HDMI In (Content Sharing) | X1 |
| USB-A 2.0 (Table Audio Devices) | X1 |
| USB-C 3.1 (for Connection to XC13T Mini PC) | X1 |
| Audio Out (Headphone, w/o mic) | X1 |
| Accessories (included in the Package) | |
| USB Type-C Cable (Type C-C) 5m / 16.4ft | X1 |
| HDMI Cable 1.8m / 5.9ft | X1 |
| Quick Start Guide | X1 |
| Speakerphone UC BM35 | |
| Audio Features | |
| Microphone | |
| Quantity | X8 |
| Voice Pickup Range | 6m |
| Microphone Frequency Range | (1) USB: 100Hz ~ 12kHz; (2) Bluetooth: 100Hz ~ 7.5kHz |
| Speaker | |
| Sound Channel | 1.1 |
| Output Power | 5W + 3W |
| Maximum Sound Pressure | 80dBSPL@1m |
| Frequency Range | 80Hz ~ 18kHz |
| What’s in the box | |
| 1 x USB Cable(USB-C to USB-A, 1.0m/39.37 inch), Bluetooth dongle (USB-A) | |
| 4K USB Camera UC W31 | |
| Camera Parameters | |
| Output Resolution | (1) H.264/MJ:3840×2160; (2) NV12/YUY2:1920×1080 |
| 4K USB Camera UC W31 | |
| Camera Parameters | |
| Output Resolution | (1) H.264/MJ:3840×2160; (2) NV12/YUY2:1920×1080 |
| Field Of View | FOV(H): 109.1° FOV(V): 74.4° FOV(D): 120° |
| I/O Port | |
| USB-C 3.0 (Device) | X1 |
| Accessories USB Cable (USB-C to USB-A,1.8m/5.9feet ) |
X1 |
| Privacy cover | X1 |
| Hand-tightened screw | X1 |
