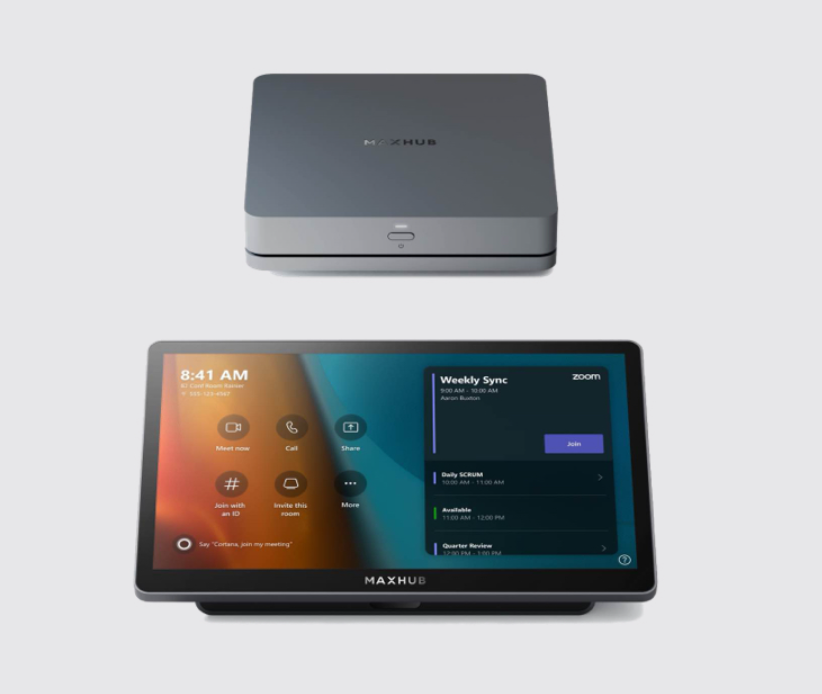

MAXHUB XCore Kit Pro is a Microsoft Teams Rooms conferencing solution designed for medium to large meeting rooms. It includes a touch-screen (11.6-inch) control panel and a mini-PC (12th gen Intel Core i5 processor) running Microsoft Teams Rooms for seamless collaboration. With wireless content sharing and dual-screen display capabilities, it offers a comprehensive and user friendly conferencing experience.
.png)
.png)

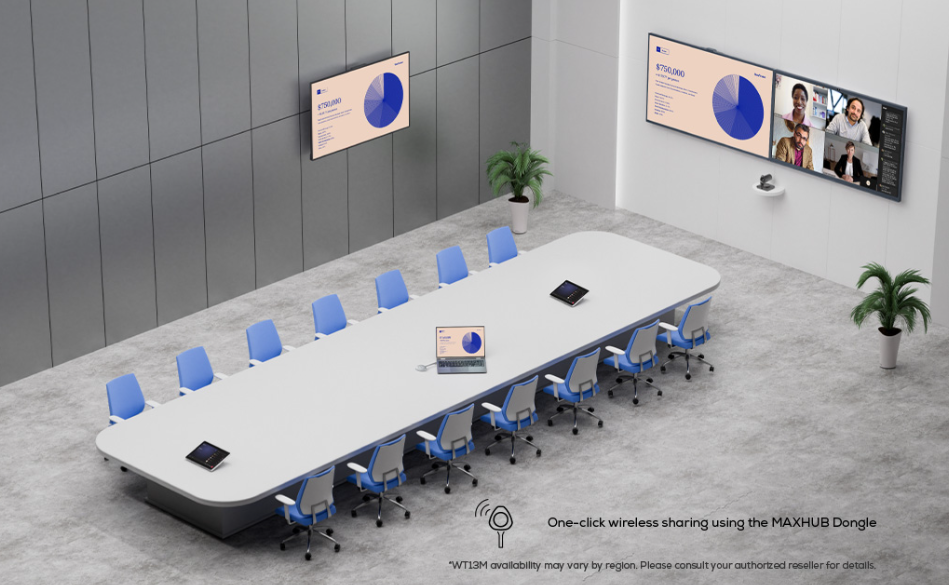

Effortless Video Conferencing with Dual Display & Wireless Sharing
The new bundle facilitates a seamless dual screen display for meeting spaces. Easily initiate wireless content sharing with a single click using the MAXHUB Wireless Dongle, or enjoy exclusive 4K sharing via wired connections.

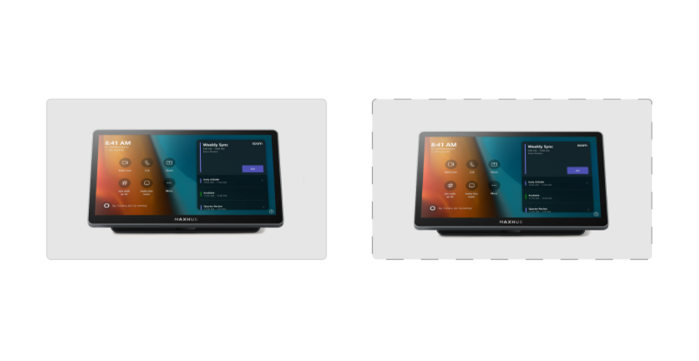

Additional Console for Extra Flexibility
In addition to the dafault console included in the bundle kit, you can extend the setup by adding another console. The is ideal for larger meeting rooms and ensures easier access to meeting controls for all participants.
.png)

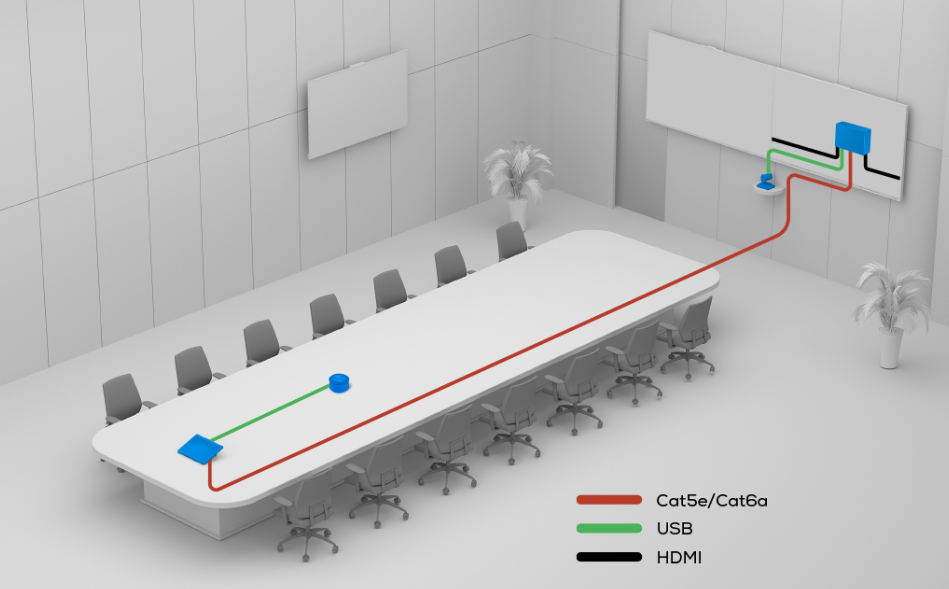

A Single Cable Deployment Fits Rooms of All Sizes
Just one Cat5e/Cat6a cable connects the touch console to the Microsoft Teams Rooms mini PC, enabling flexible placement on the table without distance limits.
.png)

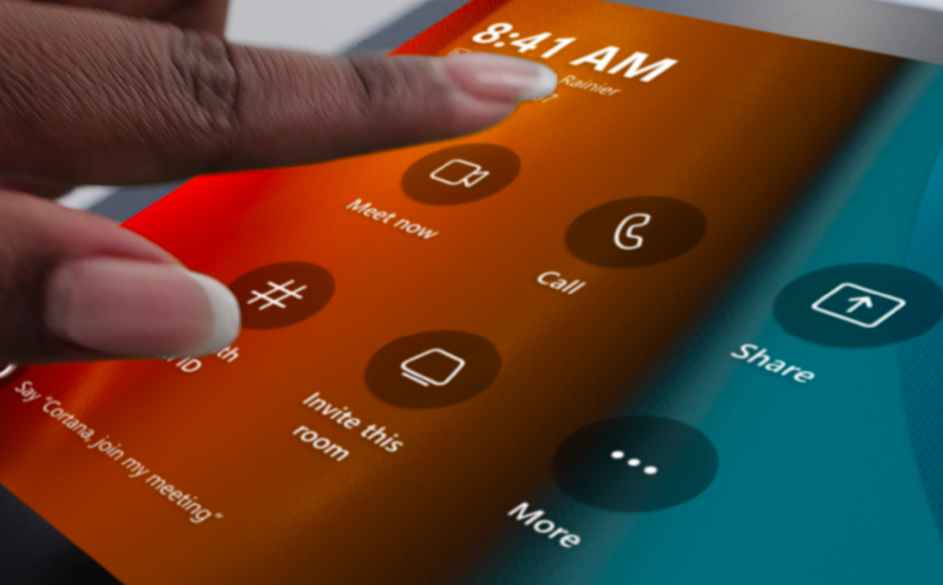

Instant Access with One Click
Just one click on the touch screen to join the meeting and directly control Teams meetings, making it simple and efficient, allowing participants to focus more on the meeting content.
.png)

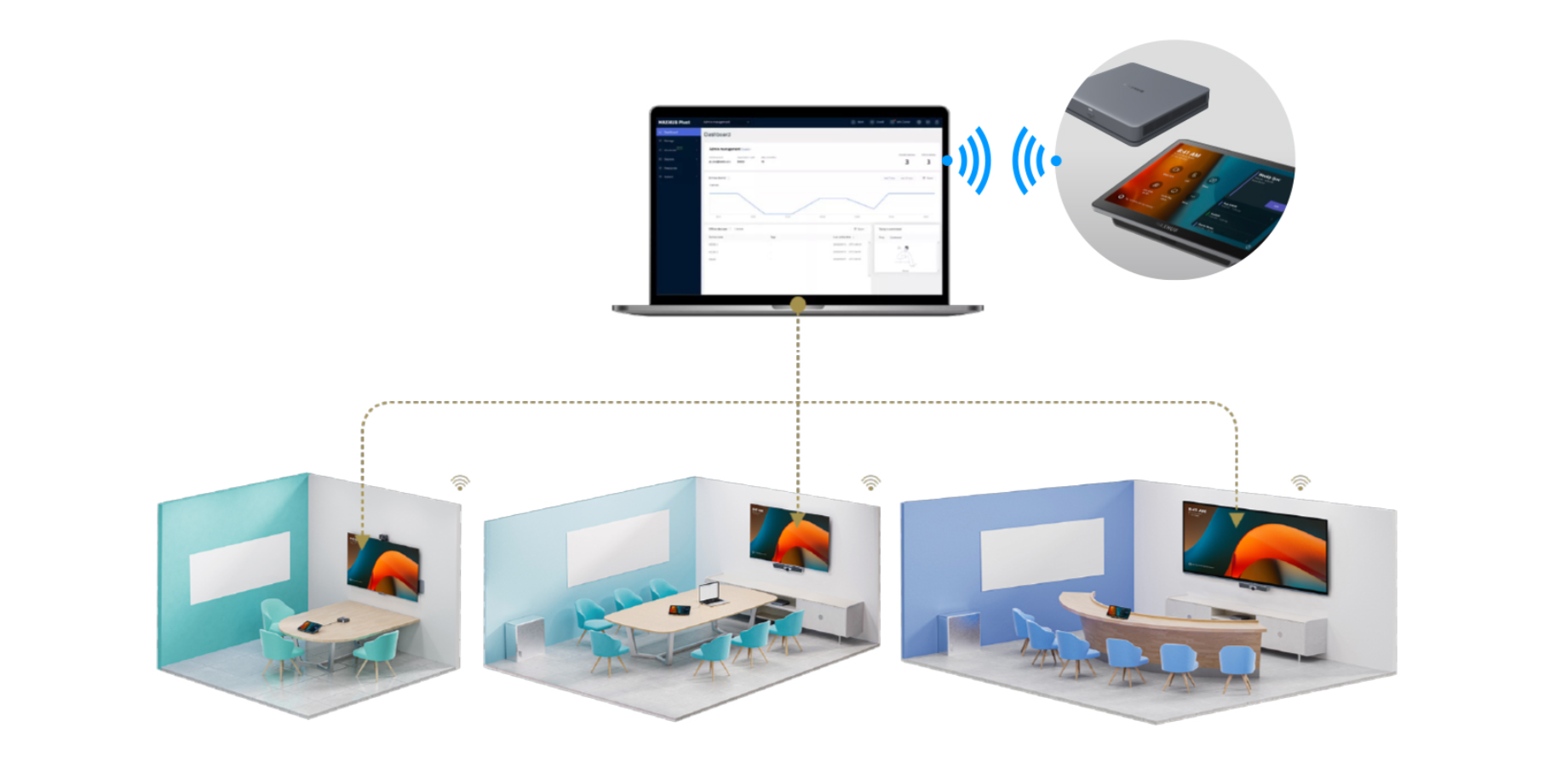

Remote Management
With MAXHUB Pivot. IT managers can easily monitor, control, and update all your room devices remotely.
XC25T Mini-PC SPECIFICATIONS
| Model |
XC25T Mini-PC |
| General Information |
|
| Device Type |
Mini-PC |
| CPU |
12th Gen Intel i5 Processor |
| Memory |
16GB DDR4 |
| Storage |
256GB |
| Graphics |
Intel® UHD Graphics for
12th Gen Intel® Processors |
| Network |
1000base-T |
| Wi-Fi |
Wi-Fi 6 |
| Support Bluetooth |
5.1 |
| Operating System |
Windows 11 loT Enterprise SAC |
| Application |
Microsoft Teams Room |
| Accessories (included in the package) |
|
| Wall Mount Kits |
1 |
| HDMI Cable (3m / 9.8ft) |
2 |
| Power Adapter |
1 |
| Power Cable |
1 |
| I/O Port |
|
| USB-A 3.0 |
4 |
| RJ45 (LAN) |
1 |
| RJ45 (Touch Console) |
1 |
| HDMI OUT |
3 |
| HDMI In (Content Share) |
1 |
| AC POWER |
1 |
| Kensington Slot |
1 |
| Power |
|
| Power Supply Model |
DC Power In |
| Power Requirements |
19.5V 6.15A |
| Max Power Consumption |
120W |
|
|
| Physical Specification |
|
| Product Dimension |
196 × 196 × 40 mm /
16 : 9 7.7 × 7.7 × 1.57 inch |
| Product Weight |
1.12 kg / 2.47 lbs |
Touch Console TCP30T SPECIFICATIONS
| Model |
Touch Console TCP30T |
| Display |
|
| Size |
11.6 inch |
| Resolution |
1920 × 1080 |
| Frequency Refresh Rate |
60Hz |
| Back Light Unit |
ELED |
| Brightness with Glass |
Min.250cd/m2, Typ.300cd/m2 |
| Life Time |
≥20000 Hours |
| Touch System |
|
| Type |
Capacitive Touch |
| Surface Treatment |
Anti-fingerprint, Anti-glare |
| I/O Port |
|
| USB-C (Content Sharing) |
1 |
| USB-A 2.0 (Table Audio Devices) |
1 |
| RJ45 (to connect XC25T mini-PC) |
1 |
| RJ45 ( for optional 2nd touch console) |
1 |
| Audio Out (headphones, without mic) |
1 |
| USB-A 2.0 (for wireless dongle pairing) |
1 |
| Sensor |
|
| Motion Sensor |
PIR Sensor for Auto Wake-up |
| Accessories (included in the package) |
|
| USB-C Cable (1.8m / 5.9 feet) |
1 |
| Ethernet Cable (7.5m / 24.6 ft) |
1 |
| Physical Specification |
|
| Product Dimension |
278x164x82 mm/11x6.4x3.2 inch |
| Product Weight |
1.16 kg / 2.56 lbs |
