MAG CDUS130L
ANTI INTERFERENCE UHF CARD
CDUS130L is anti interference UHF card.

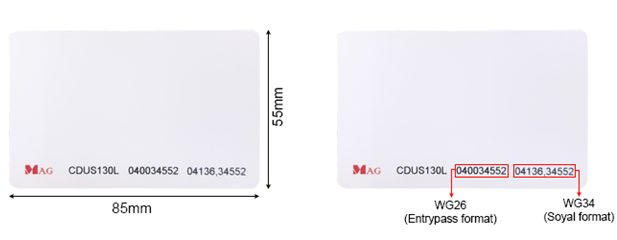

0.84mm thickness. Printed wiegand number on card.
Program card to system is more easy with printed number.
Can be use for AR300U UHF mid range reader or other UHF reader.
Most standard UHF card requires you to hold the card at edge.
This is to maximized antenna area to achieve maximum reading distance.
If your fingers covered a small portion of the card surface, the reading range will drop a lot.
Many users does not realize this correct way of holding UHF card and
they are not able to enjoy the fullest reading range offered by UHF readers.
MAG CDUS130L solves this problem with our advance anti-interference technology.
The antenna coil is designed to compensate small inductance change and maintain
reading range when our fingers convering the small surface on the card.
IMPORTANT note: MAG proximity card support full WG34
consisting of 5 digit site code and 5 digit card code number to ensure no duplication.
We do not accept returns due to card number duplication problem on
legacy system that uses only 5 digit card code.
|
Model |
CDUS130L |
|
Frequency |
UHF 919-923 MHz |
|
Memory |
UHF 240 bits EPC memory |
|
Write Endurance Cycle |
100,000 |
|
Data Retention |
Typical 10 years |
|
Write Protection |
Blockwise |
|
Characteristics |
Wet Inlay, Label |
|
Multi read capability: Yes |
|
Water resitance: Yes |
|
Printing on card |
Yes |
|
Static Pressure |
10 N/mm2 |
|
RF Air Protocol |
ISO / IEC 18000 |
|
Operating Distance |
Typivall ~ 10m on air (Antenna Dependent) |
Anti- interference UHF 6C Long range card (919 MHZ). Passive. Printed UHF card number not in sequence.
