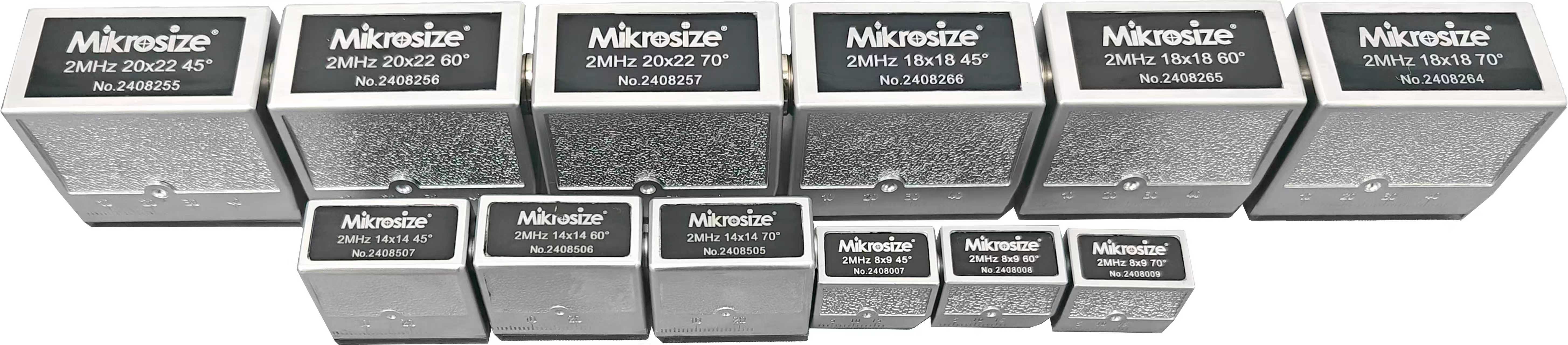

Mikrosize Ultrasonic Flaw Detector Probe

Frequency

2MHz

Crystal Size (mm)

8x9

14x14

18x18

20x22

Angle

45°

60°

70°

45°

60°

70°

45°

60°

70°

45°

60°

70°

Wave Freq.Errors

≤ 10%

Surplus Sensitivity(dB)

≥ 70

≥ 68

≥ 64

≥ 70

≥ 66

≥ 62

≥ 72

≥ 70

≥ 64

≥ 72

≥ 68

≥ 66

Initial Wave of Wide(mm)

≤ 22

≤ 22

≤ 21

≤ 22

≤ 22

≤ 21

≤ 22

≤ 22

≤ 22

≤ 22

≤ 22

≤ 22

Resolution(dB)

≥ 34

≥ 32

≥ 32

≥ 32

≥30

≥ 30

≥ 34

≥ 32

≥ 32

≥ 34

≥ 32

≥ 28

Beam Deflection

≤ ±1°

Forefront Distance(mm)

≤ 11.5

≤ 12.5

≤ 21

≤ 22

≤ 18.5

≤ 21

≤ 20.5

≤ 19.5

Measured K Value

±0.5°

Standard

EN12668-2

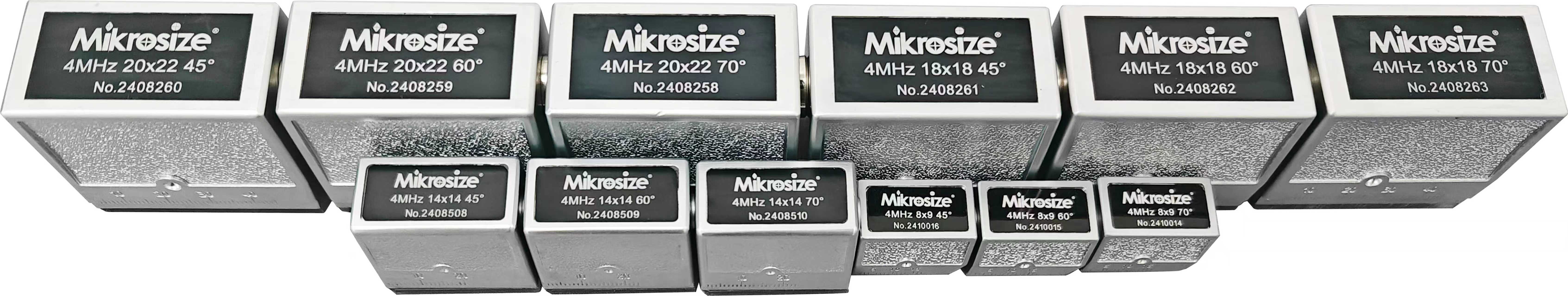

Frequency

4MHz

Crystal Size (mm)

8x9

14x14

18x18

20x22

Angle

45°

60°

70°

45°

60°

70°

45°

60°

70°

45°

60°

70°

Wave Freq.Errors

≤ 10%

Surplus Sensitivity(dB)

≥ 64

≥ 66

≥ 64

≥ 67

≥ 66

≥ 64

≥ 64

≥ 64

≥ 60

≥ 64

≥ 64

≥ 60

Initial Wave of Wide(mm)

≤ 13

≤ 13

≤ 13

≤ 14

≤ 14

≤ 14

≤ 12

≤ 14

≤ 14

≤ 12

≤ 14

≤ 14

Resolution(dB)

≥ 32

≥ 35

≥ 32

≥ 34

≥32

≥ 32

≥ 30

≥ 30

≥ 30

≥ 30

≥ 30

≥ 30

Beam Deflection

≤ ±1°

Forefront Distance(mm)

≤ 11.5

≤ 13

≤ 12

≤ 12

≤ 25

≤ 23

≤ 23

≤ 25

≤ 23

≤ 23

Measured K Value

±0.5°

Standard

EN12668-2

Frequency

4MHz

Crystal Size (mm)

8x9

Angle

45°

        60°

70°

Wave Freq.Errors

≤ 10%

Surplus Sensitivity(dB)

≥ 68

≥ 66

≥ 62

Initial Wave of Wide(mm)

≤ 12

≤ 12

≤ 12

Resolution(dB)

≥ 32

≥ 32

≥ 32

Beam Deflection

≤ ±1°

Forefront Distance(mm)

≤ 11.5

Measured K Value

±0.5°

Standard

EN12668-2

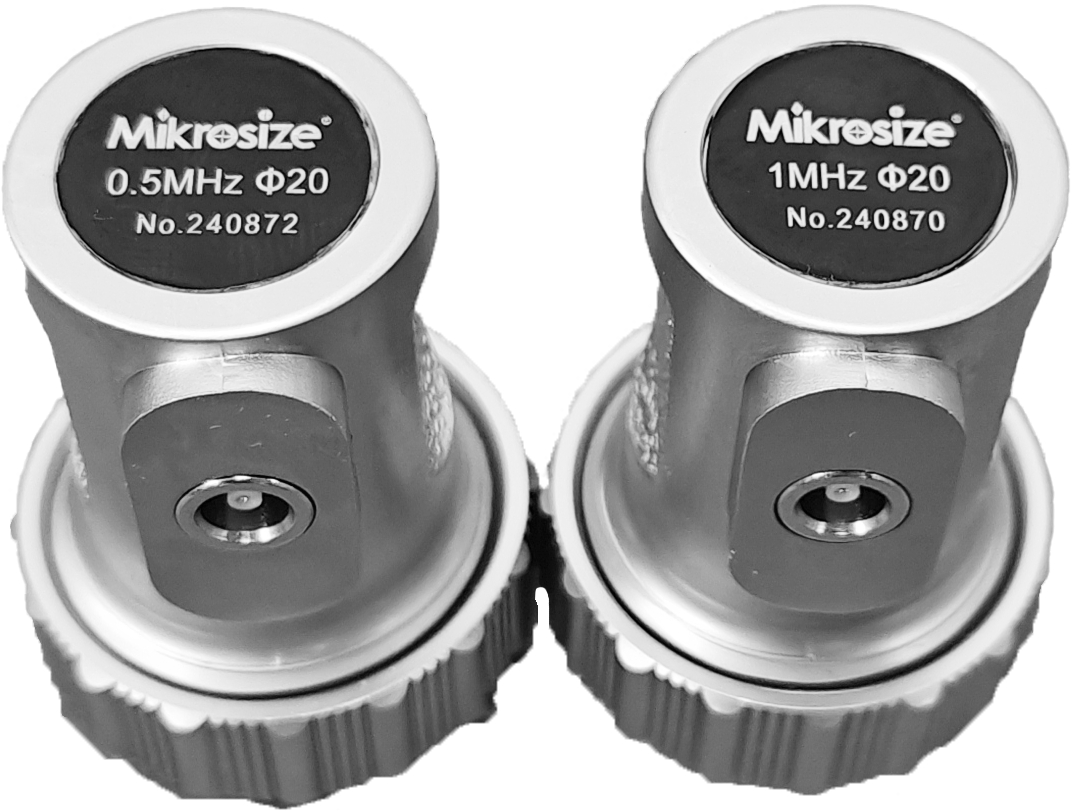

Frequency

0.5MHz

1MHz

Crystal Size (mm)

Φ20

Wave Freq.Errors

≤ 10%

Surplus Sensitivity(dB)

≥ 32

≥ 38

Initial Wave of Wide(mm)

≤ 30

≤ 26

Resolution(dB)

≥ 28

≥ 22

Beam Deflection

≤ ±1°

Standard

EN12668-2

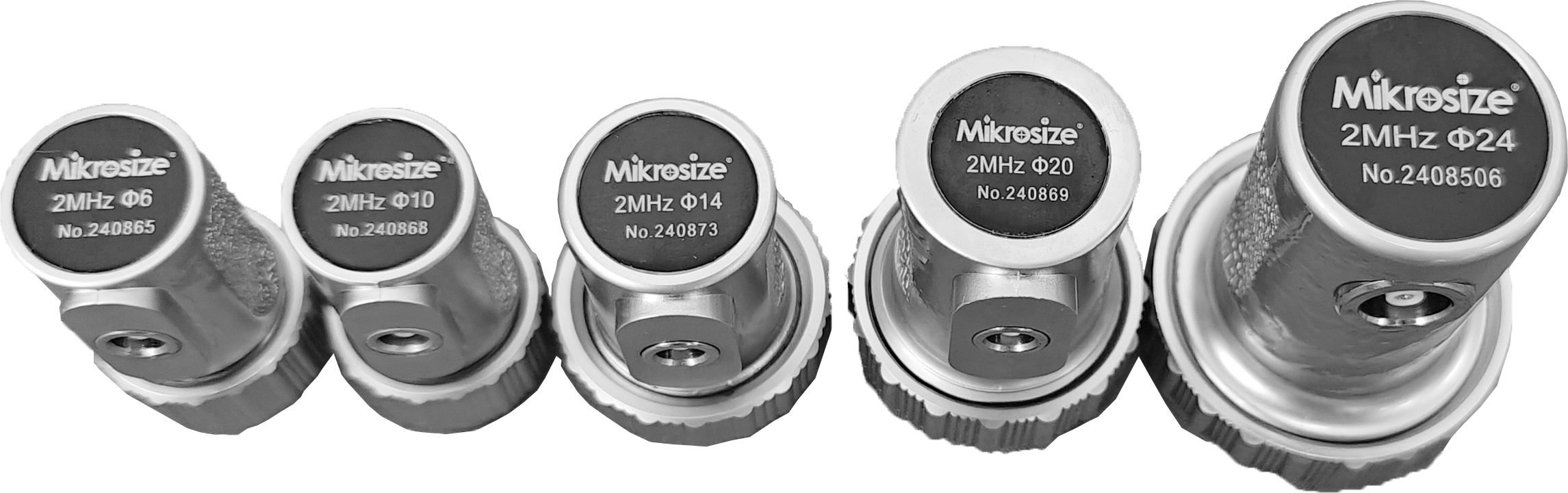

Frequency

                               2MHz

Crystal Size (mm)

Φ6

Φ10

Φ14

Φ20

Φ24

Wave Freq.Errors

≤ 10%

Surplus Sensitivity(dB)

≥ 18

≥ 34

≥ 44

≥ 54

≥ 54

Initial Wave of Wide(mm)

≤ 21

≤ 21

≤ 21

≤ 21

≤ 21

Resolution(dB)

≥ 18

≥ 18

≥ 22

≥ 26

≥ 26

Beam Deflection

≤ ±1°

Standard

EN12668-2

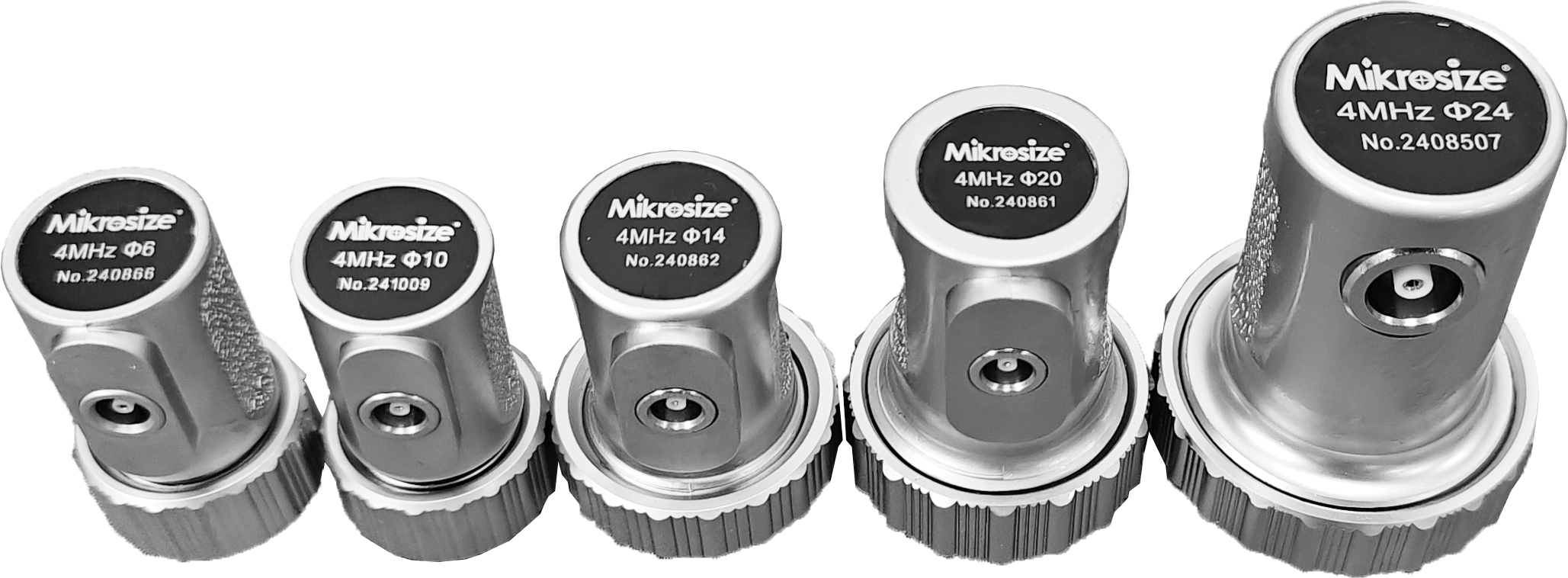

Frequency

                               4MHz

Crystal Size (mm)

Φ6

Φ10

Φ14

Φ20

Φ24

Wave Freq.Errors

≤ 10%

Surplus Sensitivity(dB)

≥ 26

≥ 42

≥ 50

≥ 54

≥ 56

Initial Wave of Wide(mm)

≤ 14

≤ 14

≤ 14

≤ 14

≤ 14

Resolution(dB)

≥ 26

≥ 26

≥ 28

≥ 26

≥ 30

Beam Deflection

≤ ±1°

Standard

EN12668-2

HTP0510250

HTP0510350

HTP0510500

Code

Thickness Measurement Range

Crystal Diameter

Frequency

Operating Temperature

TP0212200

1-200mm

Φ12mm

2MHz

-10℃~60℃

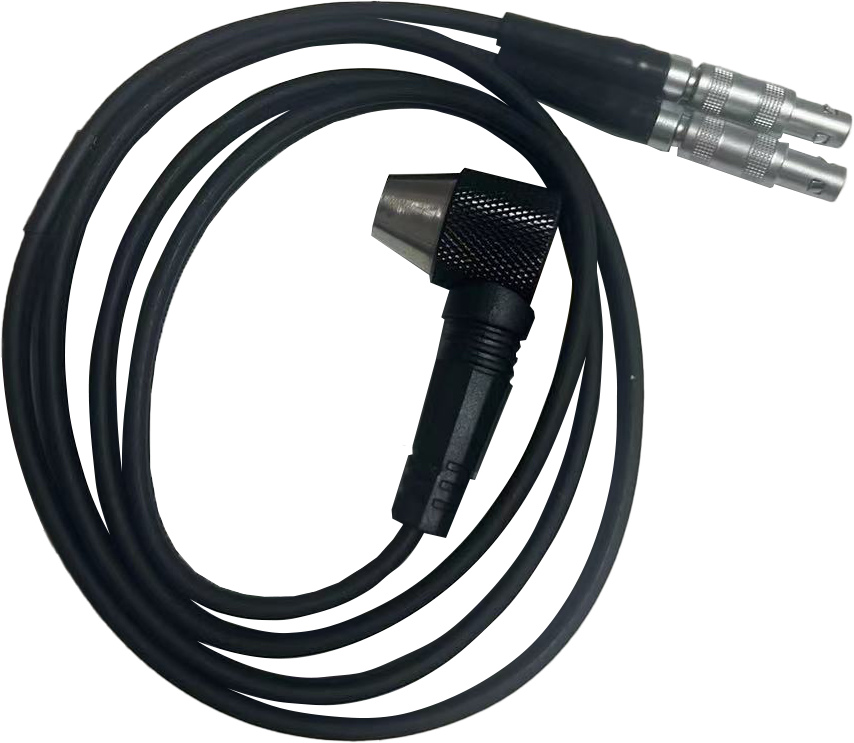

TP0506060

1-60mm

Φ6mm

5MHz

-10℃~60℃

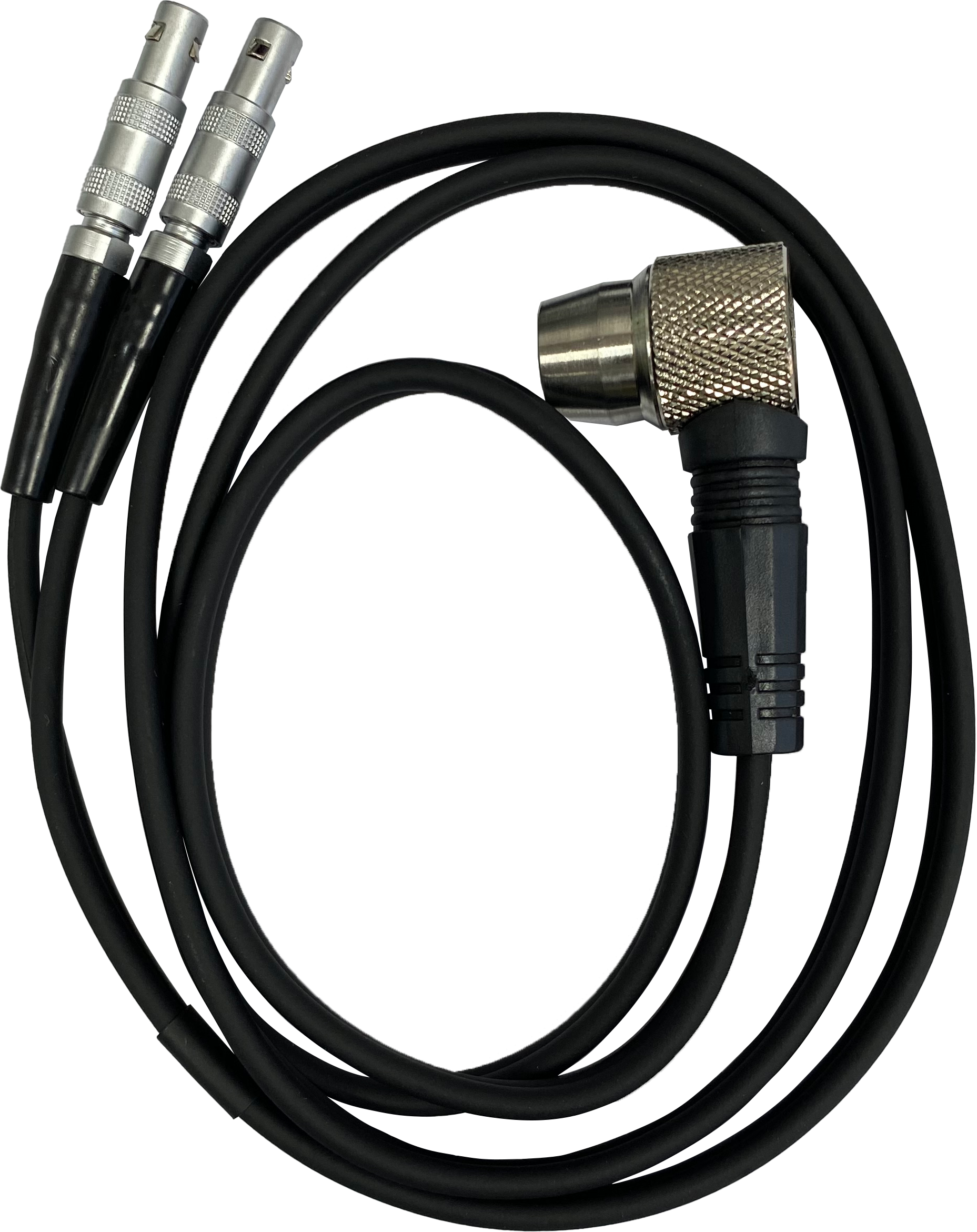

TP0508225

1-225mm

Φ10mm

5MHz

-10℃~60℃

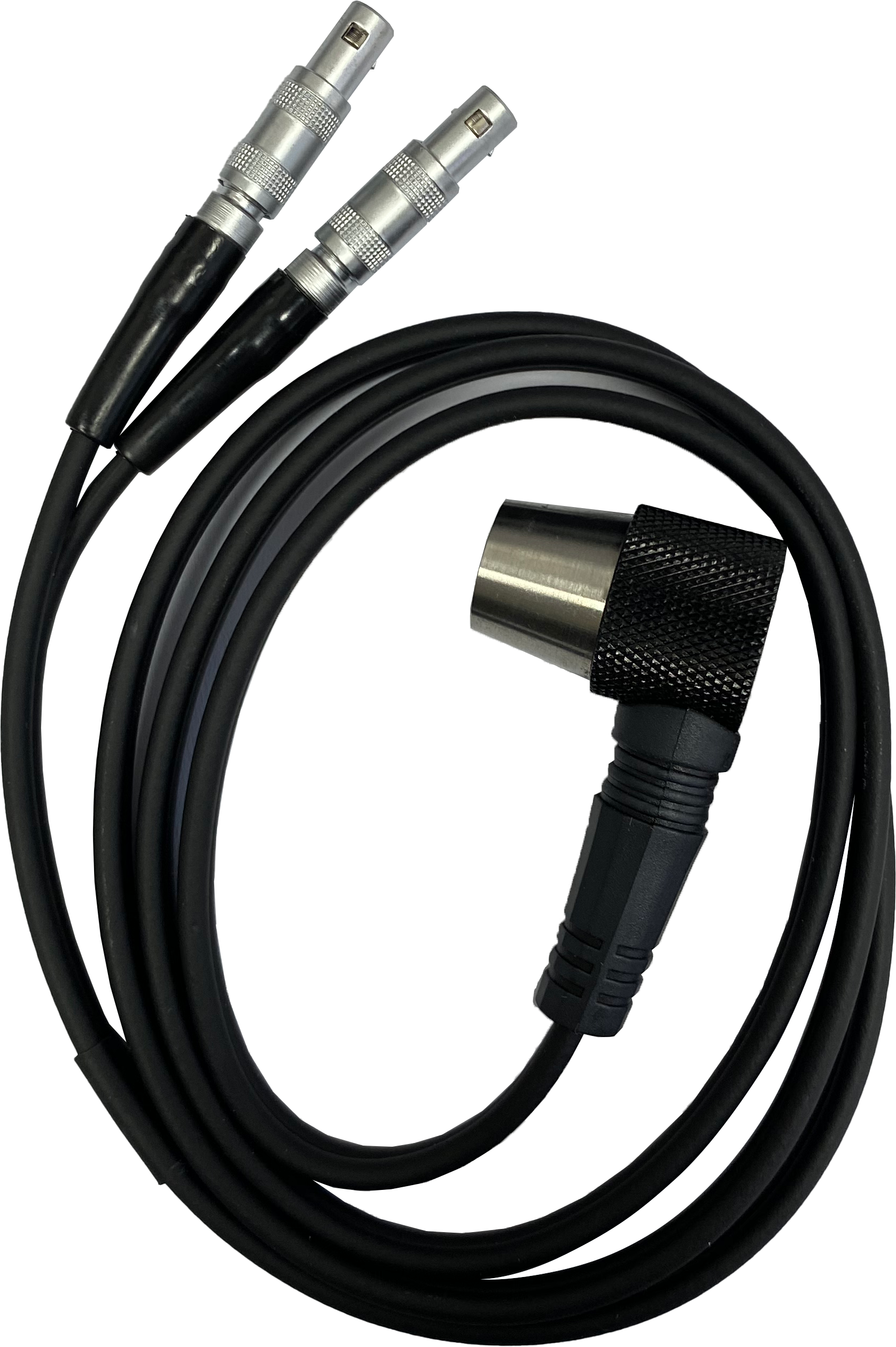

TP0510250

1-250mm

Φ10mm

5MHz

-10℃~60℃

TP0706060

0.8-60mm

Φ6mm

7MHz

-10℃~60℃

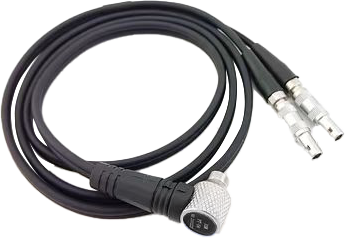

TP1004030

0.75-30mm

Φ4mm

10MHz

-10℃~60℃

HTP0510250

2-220mm

Φ10mm

5MHz

-10℃~250℃

HTP0510350

2-220mm

Φ10mm

5MHz

-10℃~350℃

HTP0510500

2-220mm

Φ10mm

5MHz

-10℃~500℃
