Specifications
- Image Sensor: 1/3” Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
- Slow Shutter: Yes
- Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
- Day/Night Mechanism: IR Cut Filter
- Day/Night Switch: Unified/ Scheduled/ Auto
- Lens Type: Fixed Focal Lens
- Focal Length: 2.8 mm / 4 mm
- Aperture: F2.0
- FOV: 2.8 mm:
Horizontal FOV: 98.8°, Vertical FOV: 53.5°, Diagonal FOV: 117°
4 mm:
Horizontal : 75.2°, Vertical: 40.8°, Diagonal: 88.3°
- Lens Mount: M12
- DORI Distance: 2.8 mm
Detect: 154.2 ft (47 m)
Observe: 62.3 ft (19 m)
Recognize: 29.5 ft (9 m)
Identify: 16.4 ft (5 m)
4 mm
Detect: 193.6 ft (59 m)
Observe: 82 ft (25 m)
Recognize: 39.4 ft (12 m)
Identify: 19.7 ft (6 m)
- Range: Pan: 0° to 353.5°, Tilt: 0° to 75°, Rotate: 0° to 355°
- Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
- Integrated Infrared-White LED: Quantity: 2
IR Range: 98 ft (30 m)*3
White LED Range: 98 ft (30 m)*3
IR Wavelength: 850 nm
- Max. Resolution: 1920x1080
- Main Stream: Frame Rate：
50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
1920x1080, 1280x960, 1280x720
Note:
If the image rotation is set to 90°, the frame rate only supports up to 20fps.
- Sub-Stream: Frame Rate：
50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
848x480,704x576, 640x480, 640x360,352x288, 320x240
Note:
If the image rotation is set to 90°, the frame rate only supports up to 20fps.
- Bit Rate Control: CBR, VBR
- Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
- H.264 Type: High Profile
- H.264+: Main Stream Supported
- H.265 Type: Main Profile
- H.265+: Main Stream Supported
- Video Bit Rate: Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
- Image Settings: Mirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client Software
- Image Enhancement: BLC/3D DNR/HLC/Smart IR
- Wide Dynamic Range: DWDR
- SNR: ≥ 52 dB
- Image Parameters Switch: Yes
- Privacy Masking: Up to 4 Masks
- Region of Interest(RoI): 1 Region
- OSD Setting: Yes
- Audio Communication: N/A
- Audio Input: Yes (Built-in Microphone)
- Audio Output: N/A
- Audio Compression: Yes
- Audio Sampling Rate: 8 KHz
- Environment Noise Filtering: Yes
- Audio Bit Rate: 64 Kbps(G.711 alaw)
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP
- ONVIF: Yes
- API: Open Network Video Interface (Profile S/T)
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- Client: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
- Web Browser: Google Chrome 57 and above
Firefox 52 and above
Safari 11 and above
Microsoft Edge 91 and above
- Cloud: Yes
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Smart Event: Intrusion Detection
Line-Crossing Detection
Region Entering Detection
Region Exiting Detection
People Detection
Vehicle Detection
- Basic Event: Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts)
Camera Tampering
Exception (Illegal Login)
- Alarm Linkage: Upload to FTP server
Push Notifications
Send to Alarm Server
Email Alarm
- Network Interface : 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
- Alarm: N/A
- Reset Button: N/A
- Power : DC Power Port
- On-board Storage: N/A
- Built-in Microphone: Yes; Records Anything Going on within a 15 ft (4.6 m) Radius of the Camera
- Built-in Speaker: N/A
- Audio: N/A
- Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Storage Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Operating Humidity : 95% or Less (Non-Condensing)
- Storage Humidity: 95% or Less (Non-Condensing)
- Package Content: VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
- Material: Metal
- Net Weight: 0.5 Kg
- Power Supply : 12V DC ± 5%, Max. 6.3 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 6.7 W
- Protection: IP67 Waterproof, IK10 Vandal Proof
- Product Dimensions (L x W x H): 4.5 × 3.4 in (113.5 × 85.7mm)
- Certifications : CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10

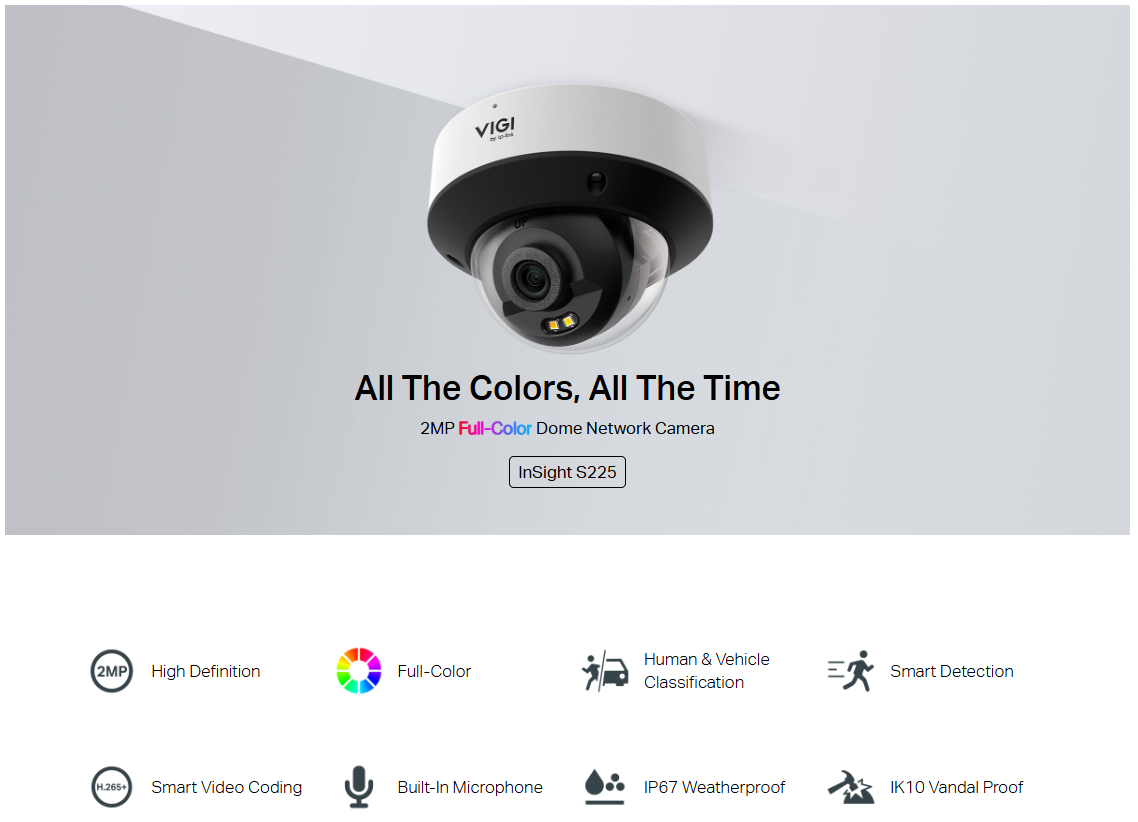

Description
- 2MP High Definition and 24h Full-Color
- Human & Vehicle Classification
- Smart Detection
- LightPro Night Vision
- Built-In Microphone
- Smart Video Enhancement Technology
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
.png)
Only Human Classification On
.png)
Only Vehicle Classification On
.png)

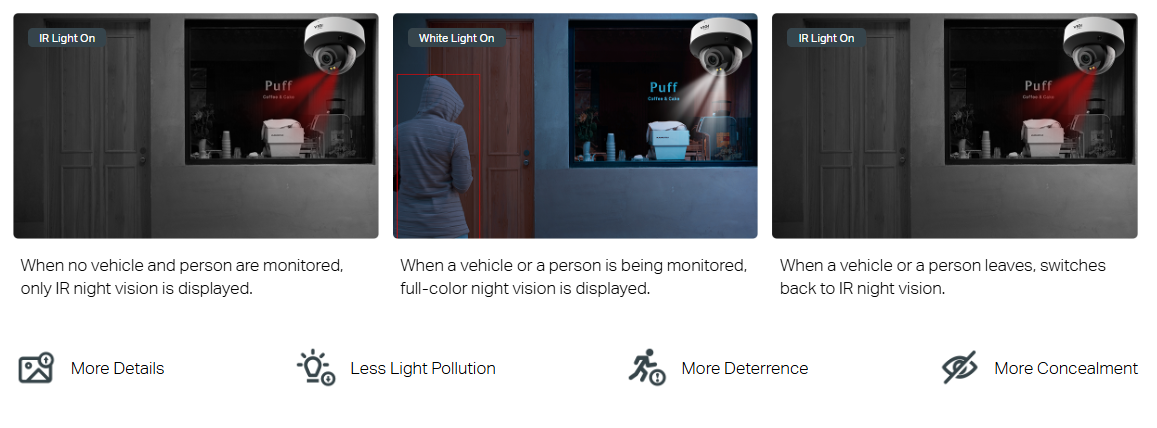

LightPro Night Vision Technology
The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.
Smart Video Enhancement Technology
-
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
-
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
-
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
