UNIVERSAL LINEAR MANIPULATOR
Universal Linear Manipulator QCH14 Series
Universal Linear Manipulator QCH14 Series



Universal Linear Manipulator QCH14 Series

SEM Equipment Sdn. Bhd. flag
Category: UNIVERSAL LINEAR MANIPULATOR Available
For more information, visit our official website at sem-eq.com
Visit Official Site Contact Us
Description



Model :




Features :

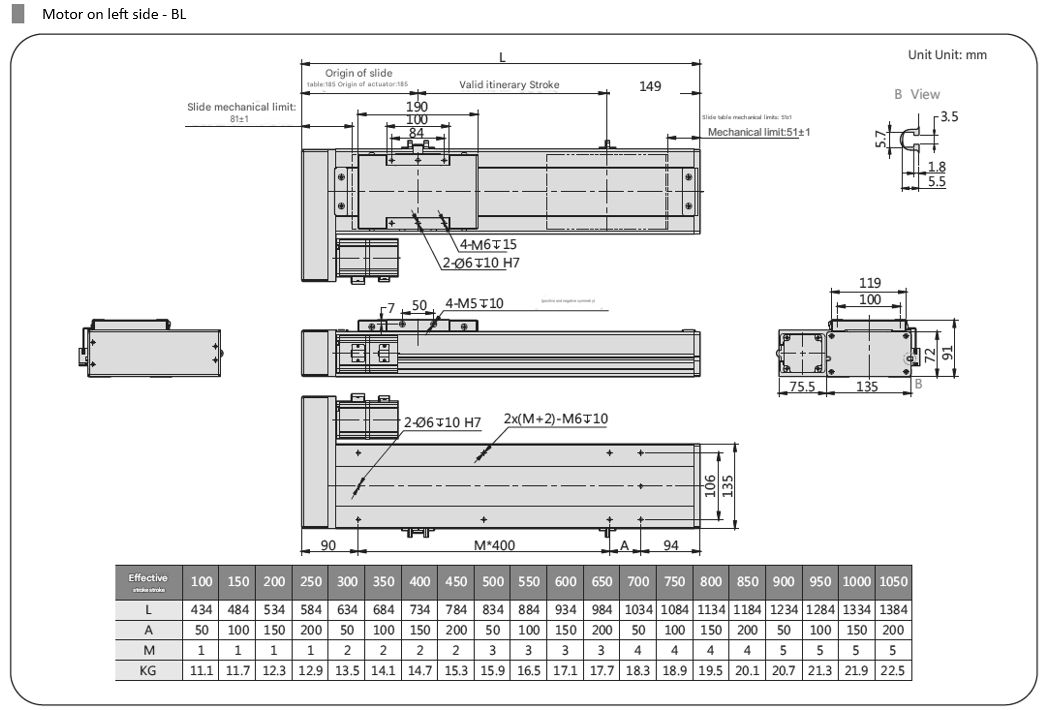

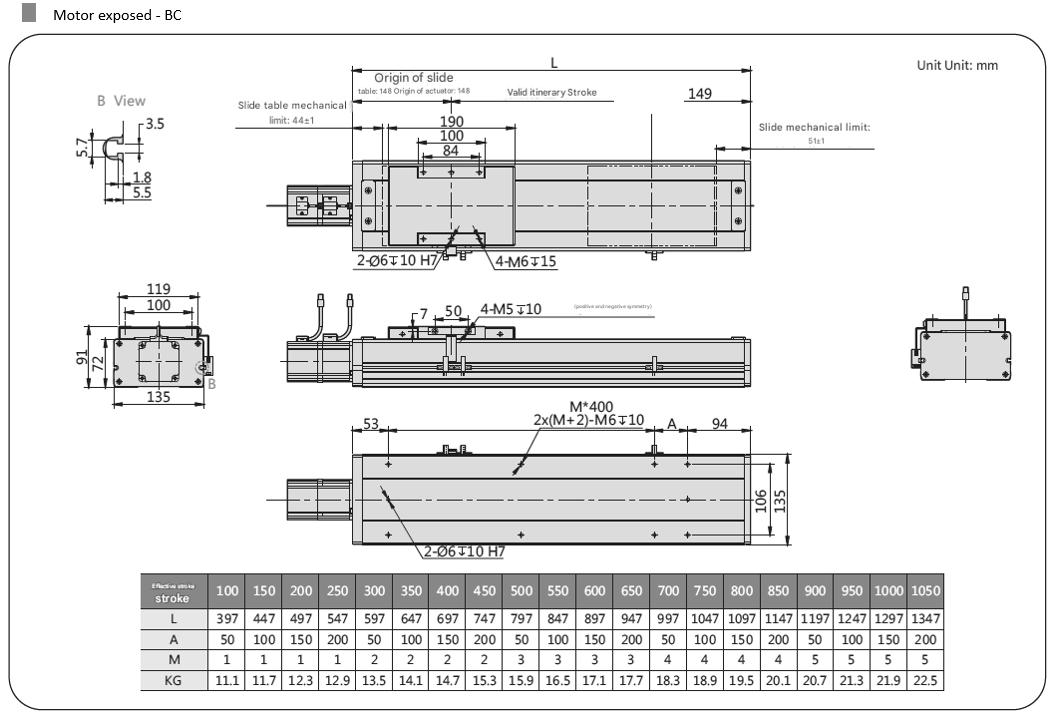

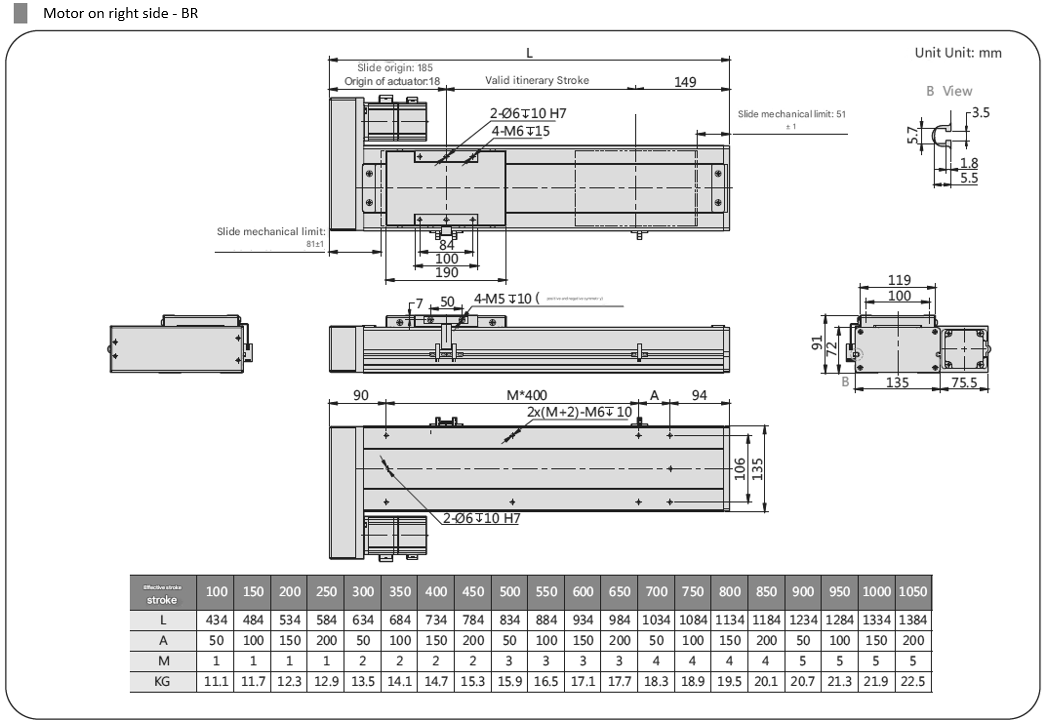

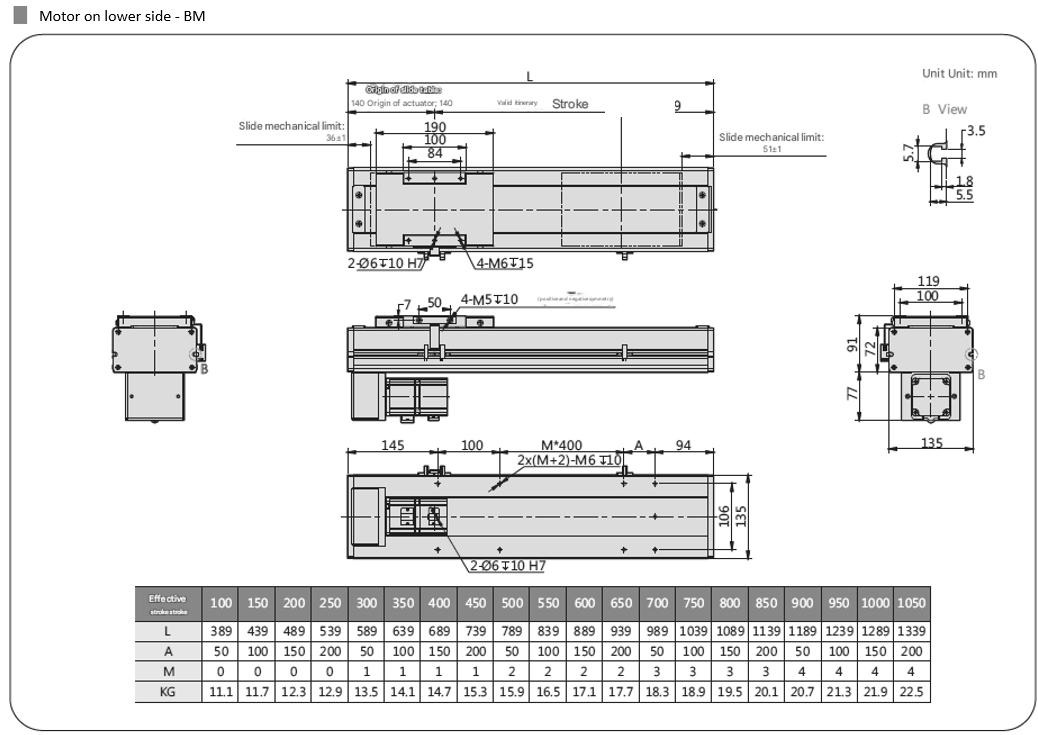

Dimension :


















Sensor layout :





Specifications :


Capability Position repeatability (mm) ±0.01
Screw lead (mm) 5 10 20 32
Maximum Speed (mm/s) 250 500 1000 1600
Maximum Payload Horizontal use of Horizontal (kg) 110 88 40 30
Vertical (kg) 33 22 10 8
Rated Thrust (N) 1388 694 347 218
Standard Stroke/Pitch (mm) 100-1050mm/50 interval 50mm pitch
Parts AC Servo Motor Output (W) 400
Ball screw Ø (mm) C7 Ø 16
High Rigidity Linear Guide (mm) 15 × 12.5
Coupling (mm) 10 × 14

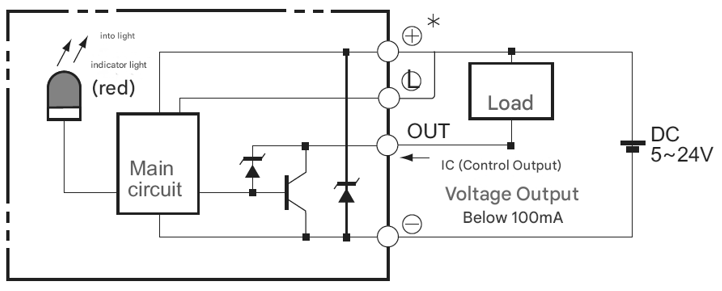

Home Sensor Outside EE-SX672 (NPN)
Built in EE-SX674 (NPN)
