• With wide angle coverage.
• Full PC tube 1.2m length, low wattage high brightness.
• No flickering, No UV and radiation.
• Lower power consumption design.
• Conforms to RoHS, CE.
• Compatible with T8 lighting fixture.
• Super bright design 200lm/w.
• Factories, Hotel, Show room, Offices, House, Exhibition Hall etc.

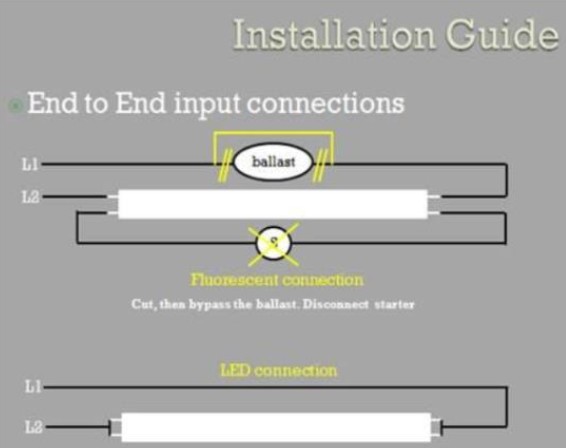

Installation Method:
Electrical / Optical Characteristics:
|
Item |
Description |
Specification |
|
1 |
Input Voltage |
200 - 277Vac (50/60Hz) |
|
2 |
Power |
14W (+/- 1W) |
|
3 |
Luminous Flux |
2,800 lumens (+/-10%) |
|
4 |
Color Temperature |
3000K / 6500K |
|
5 |
Lifetime |
>50,000 hours |
|
6 |
CRI |
>80 |
|
7 |
Operating Condition |
0 to 40°C |
|
8 |
Conforming to |
Rohs, Ce |
|
9 |
Net Weight |
0.25 Kg |
|
10 |
Housing |
1.2m length, Full Polycarbonate |
|
11 |
Cover Type |
Frosted |
|
12 |
Power Factor |
>/= 0.90 |
|
13 |
LED Chip |
2835 LED component |
|
14 |
Angle |
270° |
Safety Precaution:
• Before installation, ensure product do not have any damage such as dropping, over press and etc.
• Before installation, please read, understand and follow the work instruction.
• This product must handle by professional personal. Non-professional personals are not allow to dismantle or perform installation work.
• Shall not place on corrosion location, flammable location, high moisture areas. Must handle softly during transportation.
• Shall not install at hot location (such as burning location and others) to avoid damage the product.
• Ensure all connection are correct before switch on the power supply.
• Without permission, individual are not allow to dismantle the product.
• Ensure the power supply been switch off before proceed for any installation or repairing works.
Warranty Condition:
• Product Warranty for 36 months upon ex-factory.
• Our company will maintain the right to either repair, parts replacement or products exchange during the quality warranty period.
Below conditions are not under warranty condition:
• During transportation causing the damage.
• During installation or use, due to human error or misused causing the damage.
• Dismantle the product causing the damage.
• No purchase order document provided.
• Input voltage higher than power supply specification.
• Improper installation.
• Natural disaster such as Earthquake, Typhoon, Lightning and fire causing the product damage.
