PUMA VTR1620 DN Solutions Turning Center

Description

① Brand : PUMA
② VT : Vertical Turning Center
③ Machine Structure
     R : Full X Axis (Wide Column)

④ Table Dia. (Chuck Dia.)
     • 10 :  1,000 mm
     • 12 : 1,250 mm
     • 16 : 1,600 mm
     • 20 : 2,000 mm

⑤ Swing
     • 12 : 1,200 mm
     • 16 : 1,600 mm
     • 20 : 2,000 mm
     • 25 : 2,500 mm

⑥• (None) : Standrad
     • M : Milling spidle + C axis
     • F : Fixed cross rail
     • C : Capto tooling type

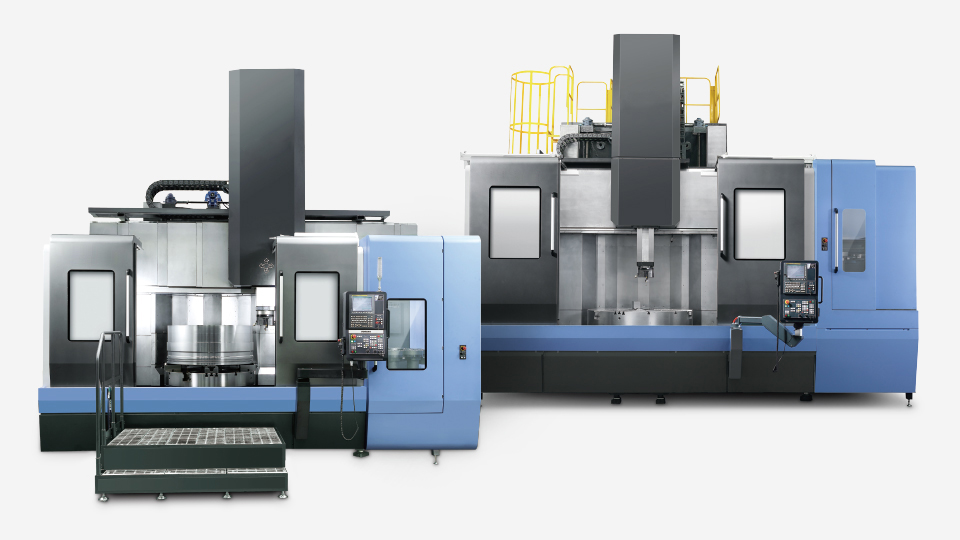

PUMA VTR Series

DN Solutions's Largest Rigid Box Way VTRThe VTR series has a massive wide-column structure positioned on top of the one-piece bed. This design provides the foundation for the machines' impressive technical specifications.

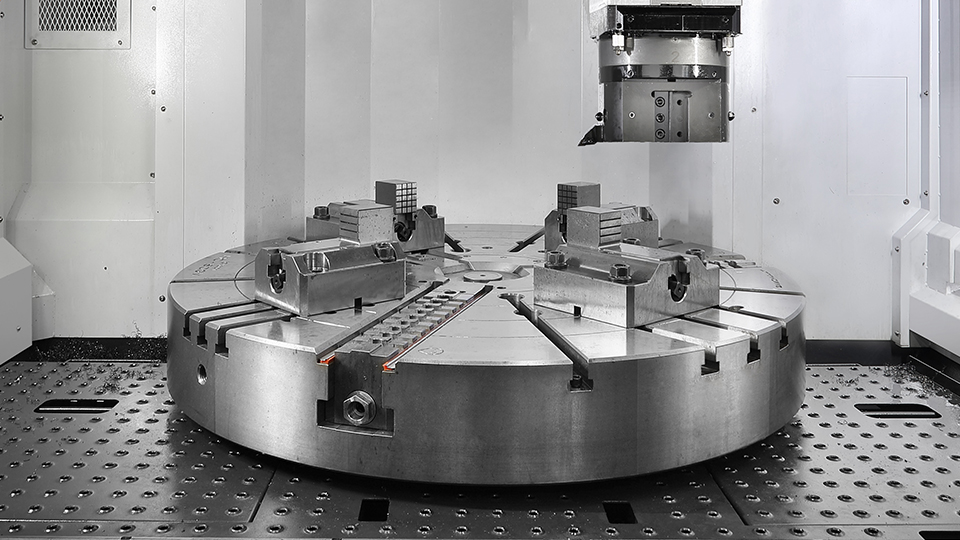

Wide Machining Area and Large Capacity

- Designed for high durability and machining stability
- Different product line-up, max. turning diameter ø1250mm up to ø2500mm
- Max. turning height 750mm up to 2000mm



High Productivity, Spindle with a Rigid Structure

- Equipped with a high-capacity cooler, the thermally-symmetrical spindle delivers long life reliable and stable precision machining performance
- Max. spindle torque: 41160 N.m (PUMA VTR2025 series)
- Max. spindle power: 70kW (option PUMA VTR1216 / 1620 series)
- Automatic chuck changer option

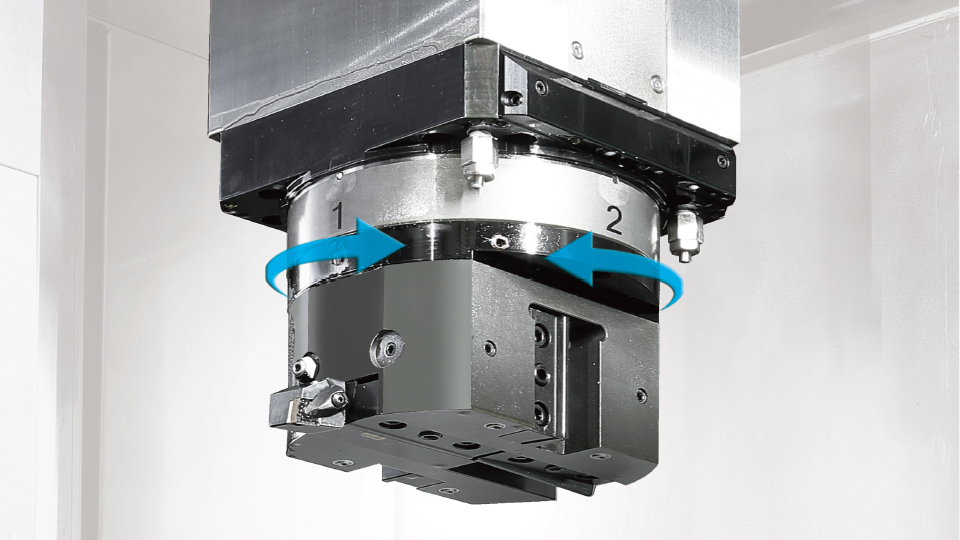

Ram Spindle for High Productivity

- Featuring a quad tool holder based ram tool index system that enables the use of 4 tools directly via the ram, dispensing with the need to use the ATC and thus enhancing productivity
- 8000kg of tool clamping force
- The servo driven ATC tool magazine: 12ea. - 34ea.

PUMA VTR1012FC / 1216FC

- Automatic tool change by applying CAPTO tooling
- CAPTO tool vertical / horizontal index
- Fully enclosed splash guard with automatic open / close roof
- Applicable to wheel type magazine that can mount up to 60 tools (PUMA VTR1012FC / 1216FC models only)
- High pressure 150bar TTC can be applied. Easy chip removal and high precision machining productivity


SPECIFICATIONS

CAPACITY
Max.turning diameter - 2000 mm
Max.turning length - 1800 mm

TRAVELS
X-axis rapid traverse - 12 m/min
Z-axis rapid traverse - 10 m/min
X-axis travel distance - 2220 mm
Z-axis travel distance - 1200 mm

MAIN SPINDLE
Max.spindle speed - 300 r/min
Max.spindle power - 45/37 kW
Max.spindle torque - 24668 N.m

DIMENSIONS
Length - 6500 mm
Height - 6345 mm
Width - 4757 mm
Weight - 39000 kg
