Description

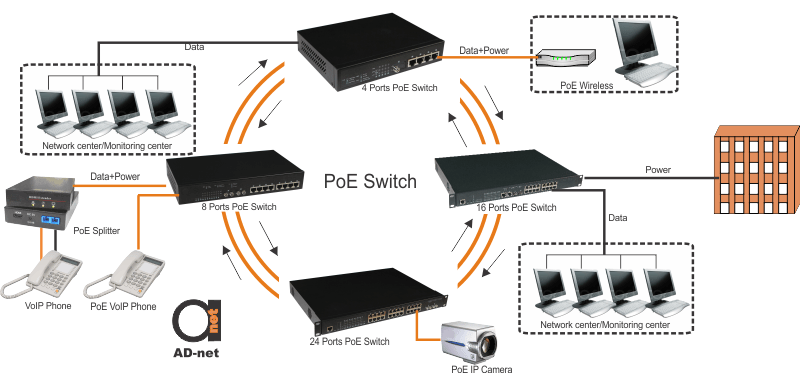

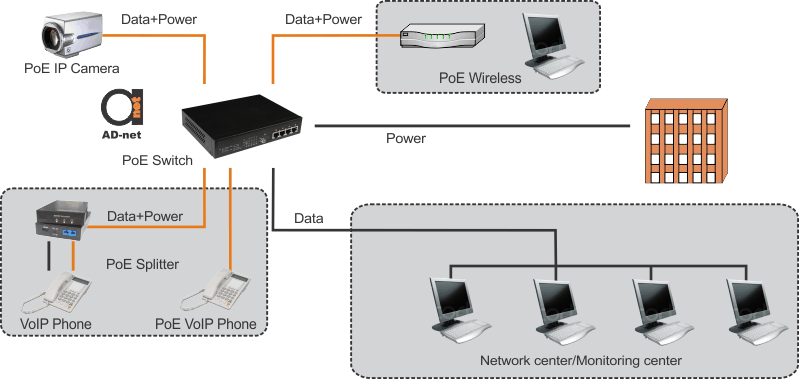

The 8-Port PoE Switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The eight RJ45 network ports and two fiber port can be used for any 10/100M link and all of these ports can supply industry-standard IEEE 802.3af power. It can reduce equipment and installation costs by delivering data and power over existing Ethernet cables.

Features

IEEE 802.3af power on up to 8 ports.
Supply power to wireless access points and surveillance cameras over Cat-5 cabling.
8 x 10/100 Mbps Ports.
2 ports are optical fiber SC interface of 1.25Gbps.
Supports PoE power up to 15.4W for each PoE port.
Supports PoE power up to 130W for all PoE ports.
Supports IEEE 802.3 x flow control for Full -duplex Mode and backpressure for Half-duplex Mode.
1K entry MAC address table of the PoE Switch POE31004P with auto-learning and auto- aging.
LED indicators for monitoring power.

Specifications

Technical parameter list
Connector Type	8x 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX and 2x 1.25Gbps SC Ports Single-mode optical fiber
Network Media	10Base-T and 100Base-TX (≤150, Catalogue 5 cable), 100Base-FX

Bandwidth	1.6Gbps
Address Database Size	1K
MTBF	sixty thousand hours
Network Latency	Switch Throughput:1.19Mpps@64Bytes
Forwarding Mode	Store-And-Forward Architecture
Network Protocols	IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI
LED Display	Power, Ethernet Data, PoE working status
Power Supply	External Adpater (Input:AC100-240V 50/60Hz, Output:52V 2.5A)
PoE Ports	1-8 Port support PoE
PoE Port Power	15.4Watts per port
PoE Standard	IEEE802.3af
PoE Feature	Automatic identification AF/AT
Power Consumption	130W
Working Environment	Working temperature:-20°～ 55°C , Storage temperature: -40°～ 85°C, Working Humidity: 5%～95%, non-condensing
Certification	FCC Class A, CE, RoHS
Radiation	No
Transmission Distance	Ethernet RJ45+POE：100M；Fiber 20KM
Power Supply Type	1/2+、3/6- （End-span）；Optional order 4/5+、7/8- (Mid-span)
QoS	Yes
NMP	No
VLAN	No
Product Size	(LxWxH) 195 x 110 x 35mm, 0.6kg
Warranty	3 year
