8-inch HMI Touch Panel (DOP-B08S515)

SEM Equipment Sdn. Bhd.

分类: ELECTRICAL CONTROL 当前有货

欲了解更多详情，请游览我们的官方网站 sem-eq.com

游览官方网站联络我们

详情

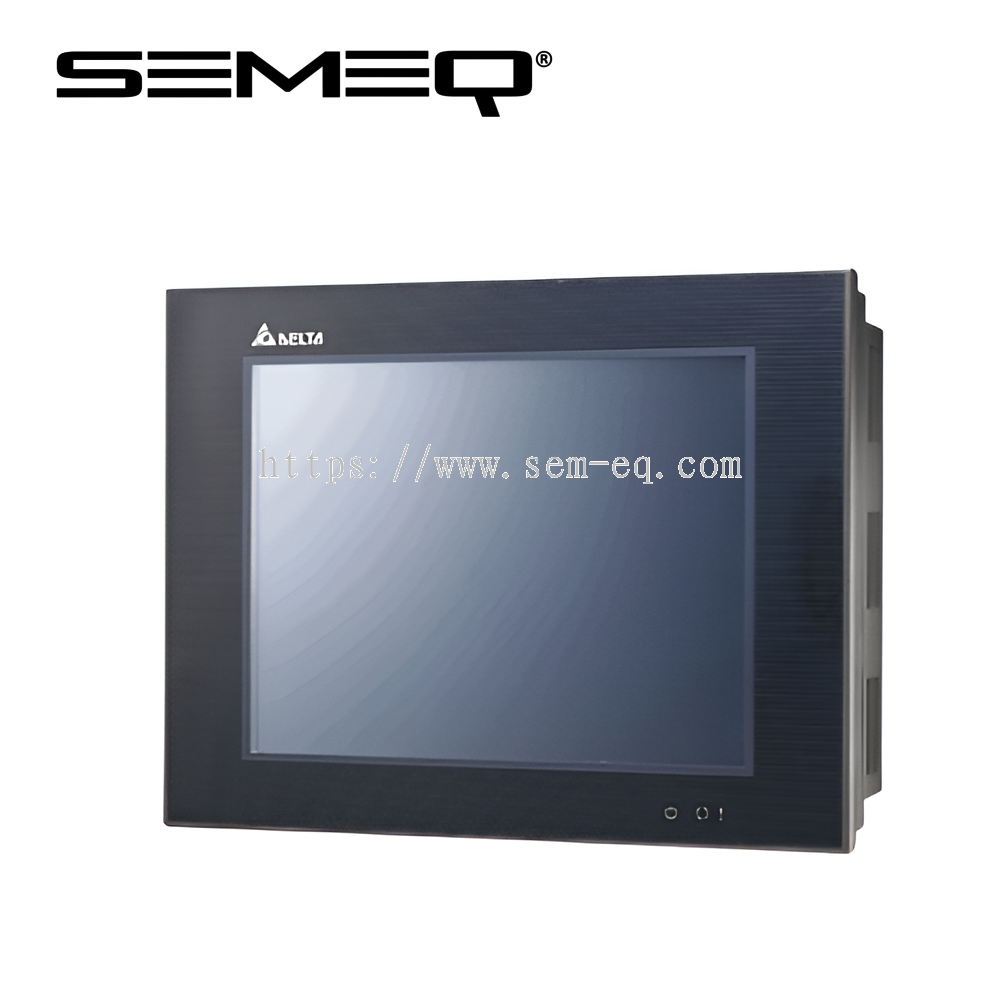

The Delta 8-inch HMI Touch Panel (DOP-B08S515) is an industrial operator interface designed for machine control, monitoring, and automation applications. It provides a user-friendly touchscreen interface, reliable communication with PLCs and industrial devices, and flexible data management functions. With its durable design, multiple communication ports, and industrial protection features, it is suitable for various factory automation and equipment control systems.

Features :

8-inch TFT LCD touch screen with high-resolution SVGA display (800 × 600 pixels).
65,536-color display for clear and detailed graphics.
Resistive touch panel for easy and reliable operation in industrial environments.
Built-in RS-232, RS-422, and RS-485 communication interfaces for PLC and device connectivity.
Supports USB Host and USB Slave functions for data transfer and project backup.
Supports SD card expansion for data logging, recipe storage, and system backup.
Built-in Real-Time Clock (RTC) for time-based control and event recording.
IP65 front panel protection suitable for industrial applications.
Fanless design with natural air cooling for reliable operation.
Compatible with Delta DOPSoft programming software for screen design and configuration.
Supports communication with Delta PLCs and various third-party controllers.
Compact panel-mount design suitable for machine integration.

Applications :

Industrial machine control and monitoring systems.
Factory automation and production line operations.
Packaging machinery and process control equipment.
Conveyor system monitoring and control.
OEM machinery and customized automation solutions.
Water treatment and utility control systems.
Manufacturing equipment operator interface applications.
Data monitoring, alarm management, and parameter adjustment systems.

Parameters :

Parameter	Value
Display Size	8 inch
Display Resolution	800 × 600 pixels (SVGA)
Display Colors	65,536 colors
Display Area	162 × 121.5 mm
Flash Memory	128 MB
User Application Memory	82 MB
OS Memory	30 MB
Backup Memory	16 MB
SDRAM	64 MB
USB Version	USB Host 1.1 / USB Slave 2.0
Number of COM Ports	3 ports
Power Supply Voltage	24 VDC
Voltage Tolerance	-10% to +15%
Power Consumption	5.2 W
RTC Battery Type	CR2032 Lithium Battery
Battery Life	Approx. 3 years at 25°C
Buzzer Frequency	2–4 kHz
Buzzer Sound Level	85 dB
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to +60°C
Operating Humidity	10–90% RH (non-condensing)
Shock Resistance	15 g / 11 ms
Isolation Voltage	AC 500 V / 1 minute
Dimensions (W × H × D)	227.1 × 174.1 × 61 mm
Panel Cut-out Size	219.4 × 166.5 mm
Weight	Approx. 1.226 kg
Backlight Life	Approx. 10,000 hours

Specifications :

Specification	Description / Details
Product Type	Human Machine Interface (HMI) Touch Panel
Manufacturer	Delta Electronics
Model	DOP-B08S515
Application	Industrial machine operation, monitoring, and automation control
Display Type	TFT LCD Touch Display
Touch Type	Resistive Touch Screen
Display Color	Color display
Backlight Type	LED Backlight
Processor Type	32-bit RISC Processor
Operating System	Delta Real-Time OS
Communication Interface	RS-232 / RS-422 / RS-485 Serial Communication
USB Interface	USB Host and USB Slave Support
Memory Expansion	SD Card Support
Programming Software	Delta DOPSoft
Communication Compatibility	Delta PLC and third-party industrial controllers
Cooling Method	Fanless natural air cooling
Mounting Type	Panel Mount Installation
Protection Class	Front panel industrial protection
Design Type	Compact industrial HMI design
Data Function	Data logging, recipe management, alarm monitoring
Security Function	User access control and password protection support
Screen Design Function	Graphic interface design, buttons, indicators, trend display
Industrial Usage	Suitable for factory automation and machine control systems
Certification	CE / UL / KCC compliance
