HIOKI AC CLAMP METER 3280-10F / 3280-70F

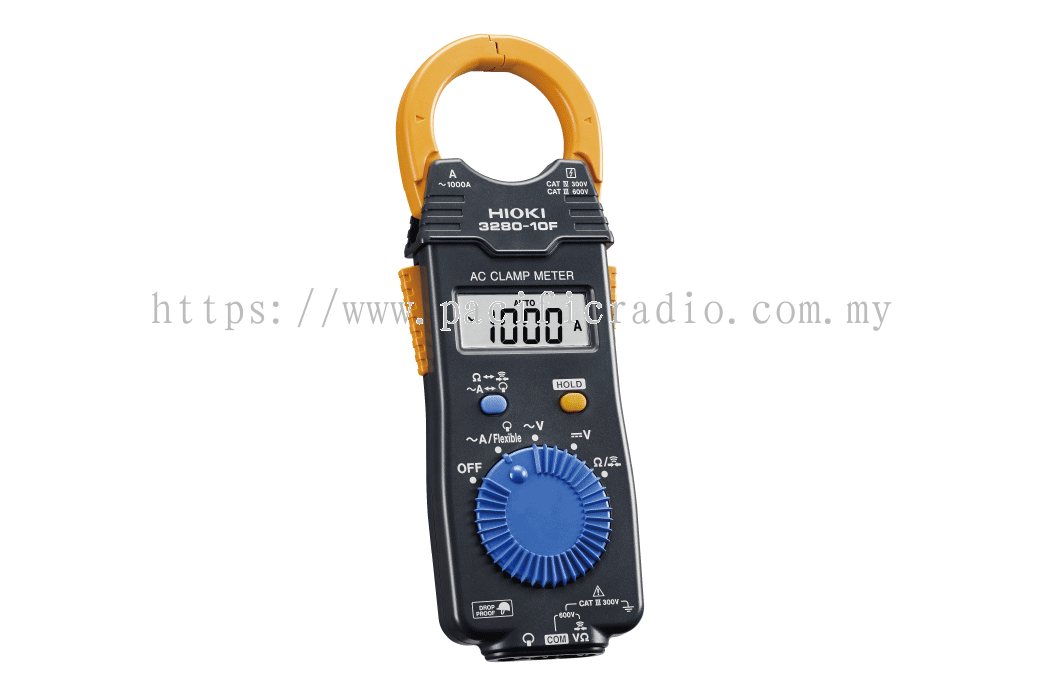

HIOKI AC CLAMP METER 3280-10F
Rugged & Compact, Essential Equipment for Professional Electricians: Measure Current and Voltage with a Single Instrument

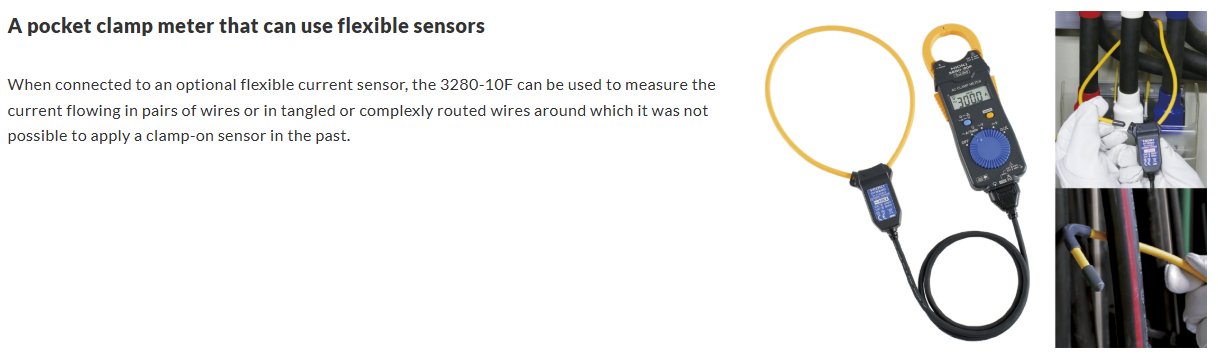

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.

CAT IV 300 V (Current)
CAT III 600 V (Current)
CAT III 300 V (Voltage)




Using 3280 series AC clamp meters: Introduction to functionality and measurement methods

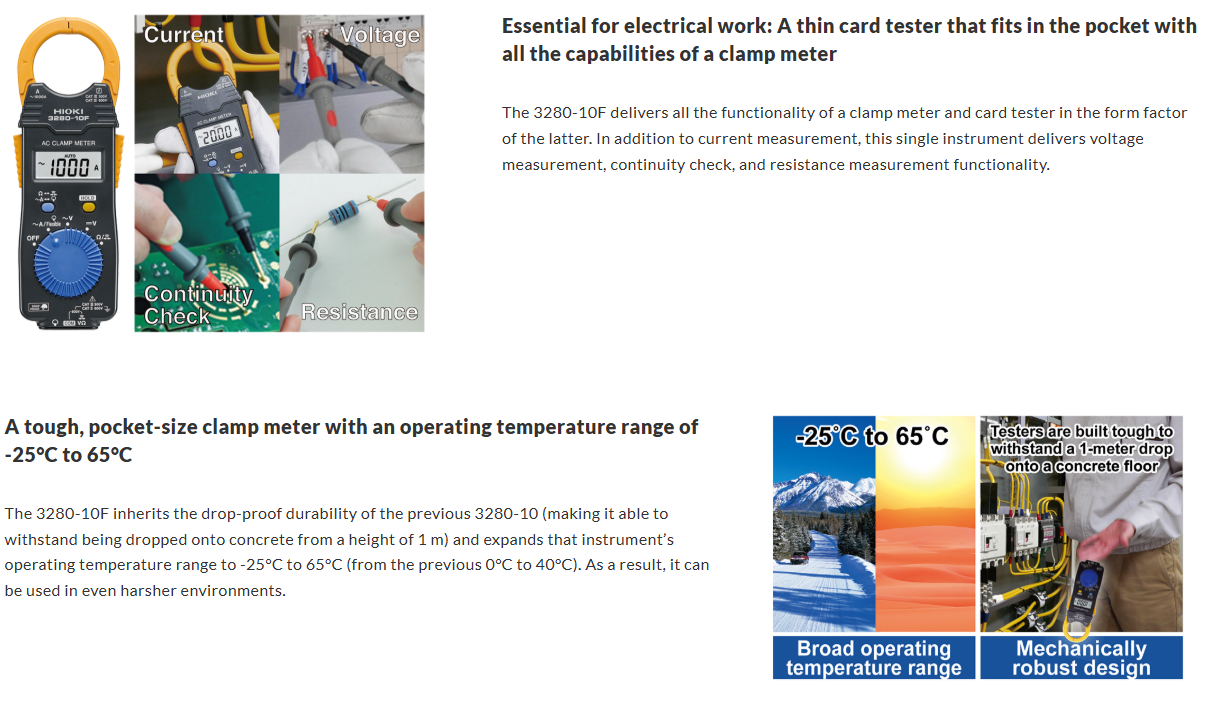

In addition to AC current measurement, these clamp meters provide voltage and resistance measurement as well as continuity check functionality.
Their compact size, low-profile design, and resistance to both rough handling and extreme temperatures make them essential tools for any electrician.

Using 3280 series AC clamp meters: Difference between mean value and true RMS measurement

Measurements taken with the Hioki 3280-10F (which uses the mean value method) and the the Hioki 3280-20F (which uses the true RMS method) are compared.
Observe the difference between readings from these two types of instruments when measuring a distorted waveform that contains harmonic components such as those produced by inverters and switching power supplies.

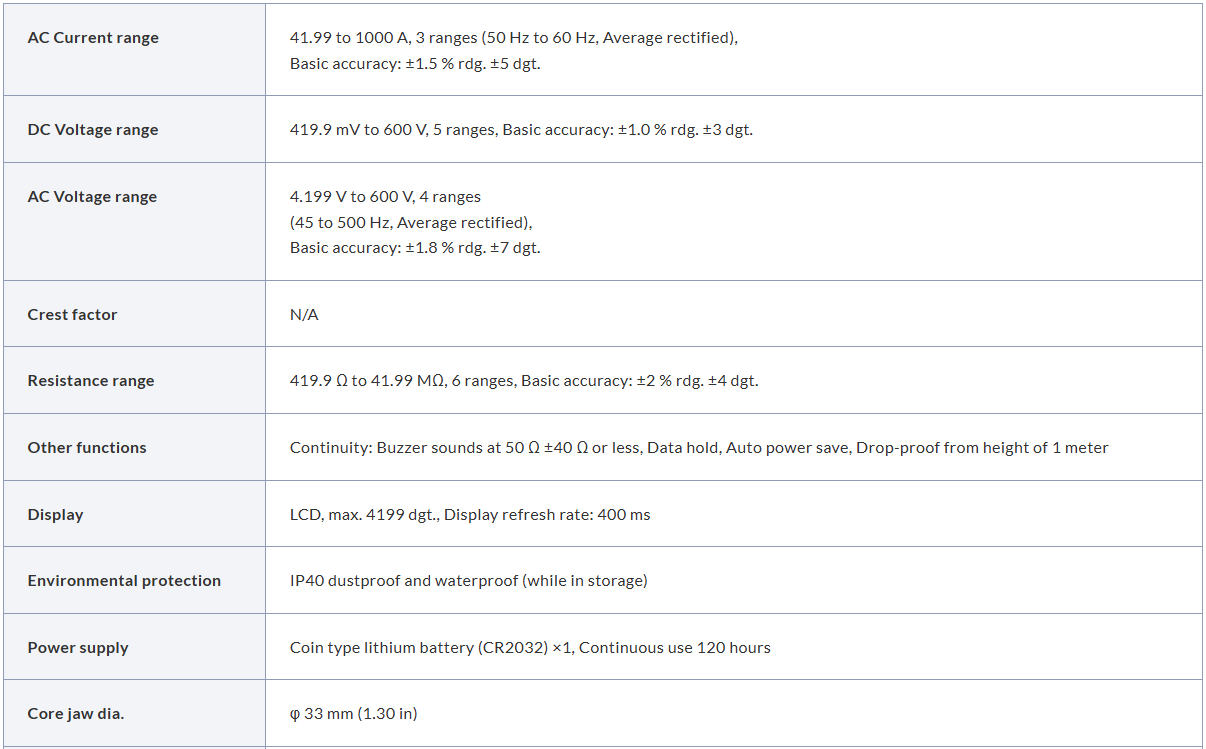

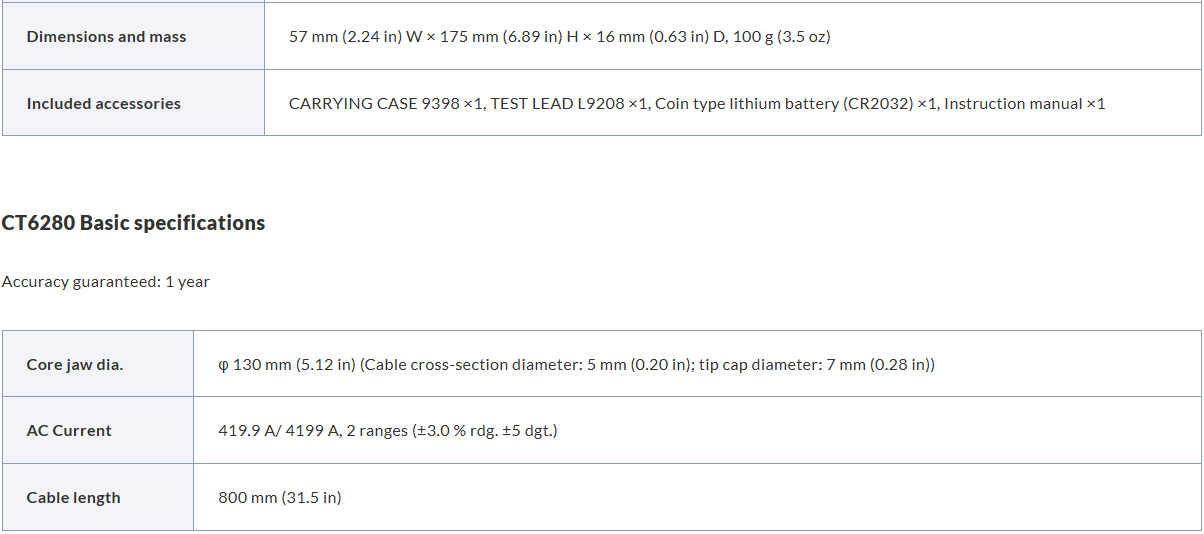

Basic specifications
