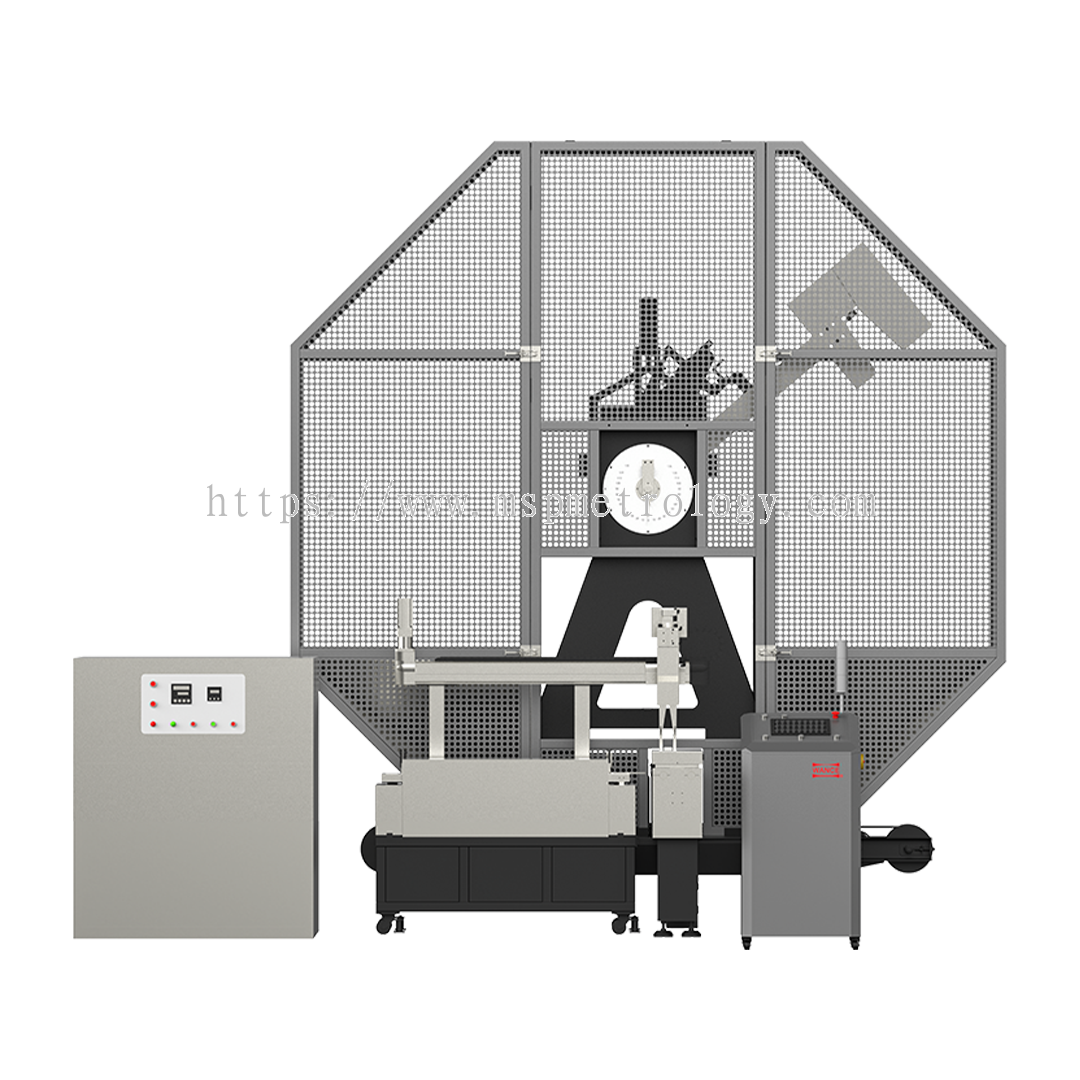

Wance PIT Series Type E Pendulum Impact Testing Machine (DT Test): 马来西亚的首选 MSP Metrology (M) Sdn Bhd

Overview

It is mainly applied to determine the dynamic tear energy and shear section ratio of metallic materials or welded joint samples.

This type of testing machine is specially used for dynamic tear testing (DT test) of metallic materials

ASTM E604 Standard Test Method for Dynamic Tear Testing of Metallic Materials

GB/T 5482 Metallic materials—Dynamic tear test method

High automatic

specimen feeding, impacting, pendulum raising and specimen collecting can be fully automatically operated

01
High safety

Fully closed safety enclosure provide high safety for the operators.

Equipped with pneumatic braking device avoids clutch working at high speed, reduces clutch impact abrasion, and extend its life.

02
High stiffness

Heavy duty seat and frame ensures stiffness and accuracy, reducing shock after impact

High strength pendulum body ensures stiffness in axial and transverse direction

03
High efficency

Equipped with specimen feeding and positioning device provides rapid feeding, precise positioning, high efficiency and safety, and reducing labor intensity

04
高频低耗，精准控力

试验频率高，电磁谐振能耗低（约为电液伺服疲劳试验机的3%），伺服电机实现快速、精准的平均试验力控制；

05
高频低耗，精准控力

试验频率高，电磁谐振能耗低（约为电液伺服疲劳试验机的3%），伺服电机实现快速、精准的平均试验力控制；

06

Model	PIT503E	PIT753E
Maximum impact energy	5000J	7500J
Angle of striking	135°	135°
Angle resolution	0.1°	0.1°
Distance from the axis of support to the center of percussion	1380mm	1500mm
Velocity of striking	6.797m/s	7.087m/s
Support span	165±0.8mm	165±0.8,406±1.5,500±1.5, 600±1.5mm(adjustable)
Radius of curvature of supports	12.7±0.8mm	12.7±0.8mm,35±0.5mm
Angle of taper of supports	11°±1°	11°±1°
Radius of striking edge	12.7±0.8mm	12.7±0.8mm,38±0.5mm
Angle of striking tip	30°±1°	30°±1°
Thickness of striking tip	37mm	37mm
Specimen dimension	(180±2) x (40±1) x (5~16) mm	Standard specimen:180x40x5~16mm Non-standard specimen:460x120x25, 550x160x32, 650x200x40mm
Weight	6500kg	10000kg
Dimension:	3700×2350×3800 mm	3800 x 2905 x 3880 mm
Power requirements	3-phase, 5-line, AC 380V±10% 50Hz 850W	3-phase, 5-line, AC 380V±10% 50Hz 5Kw
