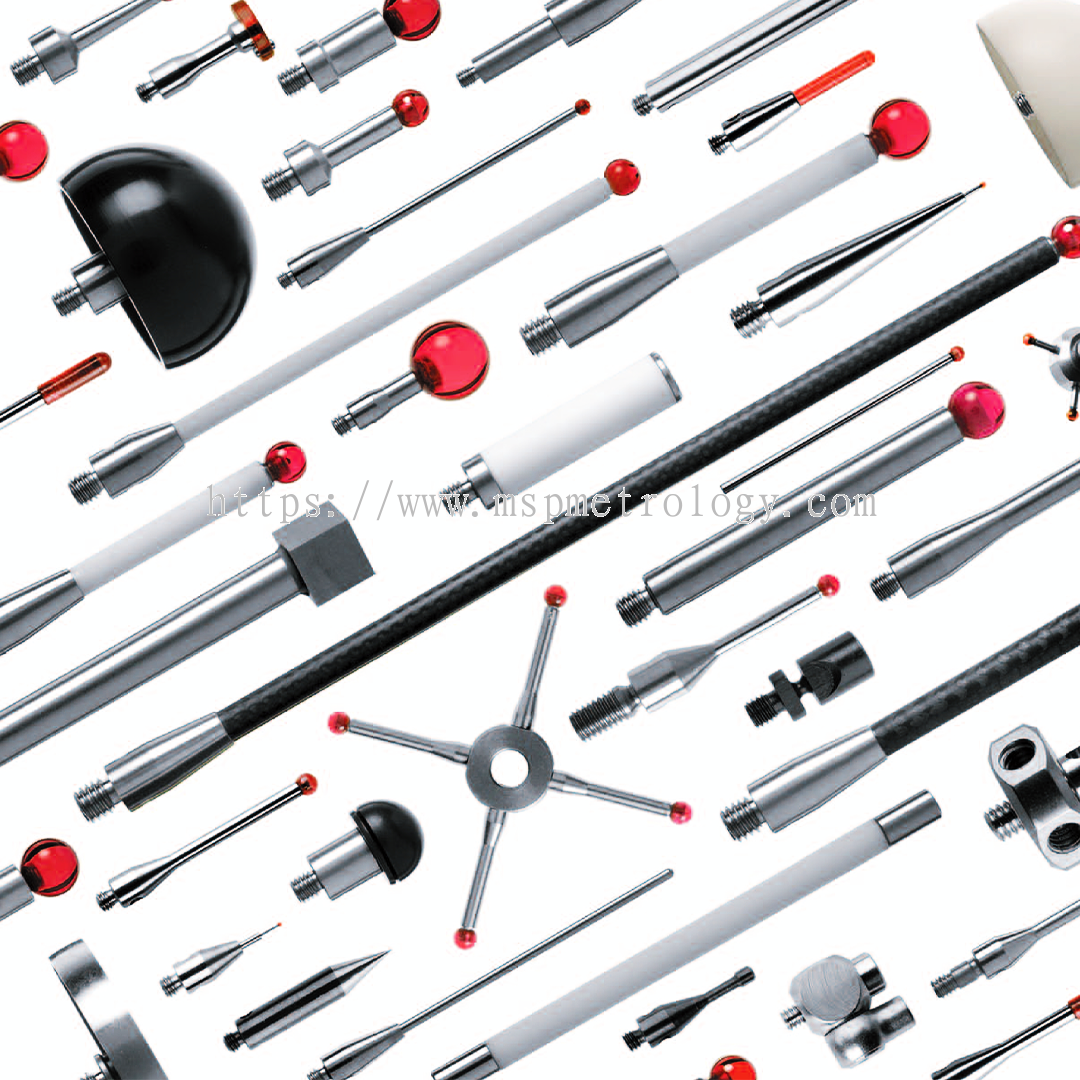

Web-ready extraction of the Renishaw M2 threaded stylus specification tables. The original table order and specification rows are retained. The stylus illustrations in each range section are represented by the supplied replacement image.
Notation: A = ball diameter, B = overall length, C = stem diameter, D = effective working length (EWL).
| Specification | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| Ruby part number | A-5000-7806 | A-5000-7802 | A-5000-7807 | A-5000-7803 | A-5000-3604 | A-5000-4154 | A-5000-4155 | A-5000-4156 | A-5000-4158 |
| Silicon nitride part number | A-5004-0210 | A-5004-1918 | A-5003-6120 | A-5004-1920 | A-5003-2138 | A-5003-9524 | A-5004-1921 | A-5004-0237 | A-5004-1922 |
| Zirconia part number | A-5003-7757 | A-5004-0165 | A-5003-7723 | A-5004-2913 | A-5004-2914 | A-5003-7261 | A-5003-2186 | A-5004-2203 | A-5004-2915 |
| A — Ball dia., mm (in.) | 1.0 (0.04) | 1.5 (0.06) | 2.0 (0.08) | 2.5 (0.10) | 3.0 (0.12) | 4.0 (0.16) | 5.0 (0.20) | 6.0 (0.24) | 8.0 (0.32) |
| B — Length, mm (in.) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) | 11.0 (0.44) |
| C — Stem dia., mm (in.) | 0.7 (0.028) | 0.7 (0.028) | 1.0 (0.04) | 1.0 (0.04) | 1.5 (0.06) | 1.5 (0.06) | 2.5 (0.10) | 2.5 (0.10) | 2.5 (0.10) |
| D — EWL*, mm (in.) | 4.5 (0.18) | 4.5 (0.18) | 6.0 (0.24) | 6.5 (0.25) | 7.0 (0.28) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) | 11.0 (0.44) |
| Mass, grammes | 0.3 | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.7 | 0.9 | 1.5 |
| 10 mm range |  |
|
|
|
|
|
|
|
|
| Specification | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Ruby part number | A-5000-3603 | A-5000-7804 | A-5000-4160 | A-5000-4161 |
| Silicon nitride part number | A-5003-1730 | A-5004-1923 | A-5003-6691 | A-5004-0236 |
| Zirconia part number | A-5004-2916 | A-5004-2917 | A-5004-1057 | A-5004-2918 |
| A — Ball dia., mm (in.) | 2.0 (0.08) | 2.5 (0.10) | 3.0 (0.12) | 4.0 (0.16) |
| B — Length, mm (in.) | 20.0 (0.79) | 20.0 (0.79) | 20.0 (0.79) | 20.0 (0.79) |
| C — Stem dia., mm (in.) | 1.4 (0.05) | 1.4 (0.05) | 1.5 (0.06) | 1.5 (0.06) |
| D — EWL*, mm (in.) | 14.0 (0.56) | 16.4 (0.64) | 17.0 (0.67) | 20.0 (0.79) |
| Mass, grammes | 0.4 | 0.4 | 0.5 | 0.6 |
| 20 mm range | |
|
|
|
| Specification | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Ruby part number | A-5000-7800* | A-5000-7805 | A-5000-7801 | A-5003-1325 |
| Silicon nitride part number | A-5004-2016* | A-5003-2020 | A-5004-2018 | |
| Zirconia part number | A-5003-7672 | A-5004-2632 | A-5004-2919 | |
| A — Ball dia., mm (in.) | 0.3 (0.012) | 0.5 (0.020) | 0.7 (0.028) | 1.0 (0.04) |
| B — Length, mm (in.) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) |
| C — Stem dia., mm (in.) | 0.2 (0.01) | 0.4 (0.02) | 0.5 (0.020) | 0.7 (0.028) |
| D — EWL*, mm (in.) | 2.0 (0.08) | 3.0 (0.12) | 4.0 (0.16) | 4.0 (0.16) |
| Mass, grammes | 0.3 | 0.3 | 0.3 | 0.3 |
| 10 mm range | |
|
|
|
* Grade 10 balls. EWL = effective working length.
| Specification | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Ruby part number | A-5004-7398 | A-5003-1345 | A-5003-0577 | A-5000-7808 | A-5003-0033 | A-5003-0034 |
| Silicon nitride part number | A-5004-7399 | A-5004-2019 | A-5004-1508 | A-5004-2021 | A-5004-1925 | |
| Zirconia part number | A-5004-2920 | A-5004-1714 | A-5004-0435 | A-5004-2921 | A-5004-2922 | |
| A — Ball dia., mm (in.) | 0.3 (0.012) | 0.5 (0.020) | 0.7 (0.028) | 1.0 (0.04) | 1.0 (0.04) | 1.5 (0.06) |
| B — Length, mm (in.) | 20.0 (0.79) | 20.0 (0.79) | 20.0 (0.79) | 20.0 (0.79) | 20.0 (0.76) | 20.0 (0.76) |
| C — Stem dia., mm (in.) | 0.2 (0.01) | 0.3 (0.012) | 0.5 (0.020) | 0.7 (0.028) | 0.8 (0.04) | 1.0 (0.04) |
| D — EWL*, mm (in.) | 2.0 (0.08) | 7.0 (0.28) | 12.0 (0.48) | 7.0 (0.28) | 12.5 (0.50) | 12.5 (0.50) |
| Mass, grammes | 0.50 | 0.48 | 0.32 | 0.50 | 0.41 | 0.50 |
| 20 mm range | |
|
|
|
|
|
| Specification | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Ruby part number | A-5003-3822 | A-5003-1896 | A-5003-0938 | A-5003-1029 | A-5003-0046 |
| Silicon nitride part number | A-5004-1017 | A-5004-1928 | A-5004-1021 | A-5004-1929 | A-5004-1930 |
| Zirconia part number | A-5004-2923 | A-5004-2924 | A-5004-0437 | A-5004-2925 | A-5004-2926 |
| A — Ball dia., mm (in.) | 2.0 (0.08) | 2.5 (0.10) | 3.0 (0.12) | 4.0 (0.16) | 5.0 (0.20) |
| B — Length, mm (in.) | 20.0 (0.79) | 20.0 (0.79) | 20.0 (0.79) | 22.0 (0.87) | 20.0 (0.79) |
| C — Stem dia., mm (in.) | 1.0 (0.04) | 1.0 (0.04) | 1.5 (0.06) | 2.0 (0.08) | 2.5 (0.10) |
| D — EWL*, mm (in.) | 14.0 (0.55) | 15.5 (0.62) | 17.0 (0.67) | 22.0 (0.87) | 20.0 (0.79) |
| Mass, grammes | 0.48 | 0.50 | 0.77 | 1.24 | 1.98 |
| 20 mm range | |
|
|
|
|
| Specification | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|
| Ruby part number | A-5000-8663 | A-5003-0035 | A-5003-0036 | A-5003-0038 | A-5003-0040 | A-5003-0043 | A-5003-0047 |
| Silicon nitride part number | A-5004-2022 | A-5004-1931 | A-5003-7573 | A-5004-1932 | A-5004-1933 | A-5004-1944 | A-5004-1945 |
| Zirconia part number | A-5004-2927 | A-5004-1711 | A-5004-1058 | A-5004-2928 | A-5004-0264 | A-5004-2929 | A-5004-2930 |
| A — Ball dia., mm (in.) | 1.0 (0.04) | 1.5 (0.06) | 2.0 (0.08) | 2.5 (0.10) | 3.0 (0.12) | 4.0 (0.16) | 5.0 (0.20) |
| B — Length, mm (in.) | 27.5 (1.08) | 30.0 (1.19) | 30.0 (1.19) | 30.0 (1.19) | 30.0 (1.19) | 30.0 (1.19) | 30.0 (1.19) |
| C — Stem dia., mm (in.) | 0.7 (0.028) | 1.0 (0.04) | 1.5 (0.06) | 2.0 (0.08) | 2.0 (0.08) | 2.0 (0.08) | 2.5 (0.10) |
| D — EWL*, mm (in.) | 20.5 (0.81) | 22.5 (0.89) | 22.5 (0.89) | 22.5 (0.89) | 27.0 (1.06) | 30.0 (1.19) | 30.0 (1.19) |
| Mass, grammes | 0.40 | 0.58 | 0.99 | 1.48 | 1.49 | 1.57 | 2.57 |
| 30 mm range | |
|
|
|
|
|
|
| Specification | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Ruby part number | A-5003-4177 | A-5003-1370 | A-5003-4779 | A-5003-4780 |
| Silicon nitride part number | A-5004-1946 | A-5004-1952 | A-5004-1953 | A-5004-1954 |
| Zirconia part number | A-5004-2931 | A-5004-2932 | A-5004-2933 | A-5004-2934 |
| A — Ball dia., mm (in.) | 3.0 (0.12) | 4.0 (0.16) | 5.0 (0.20) | 6.0 (0.24) |
| B — Length, mm (in.) | 30.0 (1.19) | 30.0 (1.19) | 30.0 (1.19) | 30.0 (1.19) |
| C — Stem dia., mm (in.) | 2.0 (0.08) | 2.0 (0.08) | 2.5 (0.10) | 2.5 (0.10) |
| D — EWL*, mm (in.) | 27.0 (1.06) | 30.0 (1.19) | 30.0 (1.19) | 30.0 (1.19) |
| Mass, grammes | 0.44 | 0.68 | 0.93 | 1.11 |
| 30 mm range | |
|
|
|
| Specification | 1 | 2 | 3 |
|---|---|---|---|
| Ruby part number | A-5003-4241 | A-5003-4781 | A-5003-4782 |
| Silicon nitride part number | A-5004-1955 | A-5004-1956 | A-5004-1957 |
| Zirconia part number | A-5004-2935 | A-5004-2936 | A-5004-0618 |
| A — Ball dia., mm (in.) | 4.0 (0.16) | 5.0 (0.20) | 6.0 (0.24) |
| B — Length, mm (in.) | 30.0 (1.19) | 30.0 (1.19) | 30.0 (1.19) |
| C — Stem dia., mm (in.) | 2.0 (0.08) | 3.0 (0.12) | 3.0 (0.12) |
| D — EWL*, mm (in.) | 30.0 (1.19) | 30.0 (1.19) | 30.0 (1.19) |
| Mass, grammes | 0.57 | 0.79 | 0.96 |
| 30 mm range | |
|
|
| Specification | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| Ruby part number | A-5003-0037 | A-5003-0039 | A-5003-0041 | A-5003-0044 | A-5003-0048 | A-5003-0042 | A-5003-0045 | A-5003-0049 |
| Silicon nitride part number | A-5003-7269 | A-5004-1959 | A-5004-1960 | A-5004-1961 | A-5004-1962 | A-5004-1963 | A-5004-1964 | A-5004-1965 |
| Zirconia part number | A-5004-2937 | A-5004-2938 | A-5004-1059 | A-5004-2939 | A-5004-2940 | A-5004-2942 | A-5004-2943 | A-5004-2944 |
| A — Ball dia., mm (in.) | 2.0 (0.08) | 2.5 (0.10) | 3.0 (0.12) | 4.0 (0.16) | 5.0 (0.20) | 3.0 (0.12) | 4.0 (0.16) | 5.0 (0.20) |
| B — Length, mm (in.) | 40.0 (1.58) | 40.0 (1.58) | 40.0 (1.58) | 40.0 (1.58) | 40.0 (1.58) | 50.0 (1.97) | 50.0 (1.97) | 50.0 (1.97) |
| C — Stem dia., mm (in.) | 1.5 (0.06) | 2.0 (0.08) | 2.0 (0.08) | 2.0 (0.08) | 2.5 (0.10) | 2.0 (0.08) | 2.0 (0.08) | 2.5 (0.10) |
| D — EWL*, mm (in.) | 32.5 (1.28) | 32.5 (1.28) | 37.0 (1.46) | 40.0 (1.58) | 40.0 (1.58) | 47.0 (1.85) | 50.0 (1.97) | 50.0 (1.97) |
| Mass, grammes | 1.29 | 1.95 | 1.97 | 2.04 | 3.17 | 2.44 | 2.52 | 3.75 |
| 40–50 mm range | |
|
|
|
|
|
|
|
| Specification | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Ruby part number | A-5003-0064 | A-5003-0065 | A-5003-0066 | A-5003-0470 |
| Silicon nitride part number | A-5004-1967 | A-5004-1519 | A-5004-1968 | A-5004-1969 |
| Zirconia part number | A-5004-2945 | A-5004-2946 | A-5004-2947 | A-5004-2948 |
| A — Ball dia., mm (in.) | 3.0 (0.12) | 4.0 (0.16) | 5.0 (0.20) | 6.0 (0.24) |
| B — Length, mm (in.) | 50.0 (1.97) | 50.0 (1.97) | 50.0 (1.97) | 50.0 (1.97) |
| C — Stem dia., mm (in.) | 2.0 (0.08) | 2.0 (0.08) | 2.5 (0.10) | 2.5 (0.10) |
| D — EWL*, mm (in.) | 47.0 (1.85) | 50.0 (1.97) | 50.0 (1.97) | 50.0 (1.97) |
| Mass, grammes | 0.83 | 0.91 | 1.31 | 1.49 |
| 50 mm range | |
|
|
|
| Specification | 1 | 2 | 3 |
|---|---|---|---|
| Ruby part number | A-5003-2285 | A-5003-2286 | A-5003-2287 |
| Silicon nitride part number | A-5004-1970 | A-5004-1971 | A-5004-1972 |
| Zirconia part number | A-5004-1331 | A-5004-1330 | A-5004-1329 |
| A — Ball dia., mm (in.) | 4.0 (0.16) | 5.0 (0.20) | 6.0 (0.24) |
| B — Length, mm (in.) | 50.0 (1.97) | 50.0 (1.97) | 50.0 (1.97) |
| C — Stem dia., mm (in.) | 3.0 (0.12) | 3.0 (0.12) | 3.0 (0.12) |
| D — EWL*, mm (in.) | 50.0 (1.97) | 50.0 (1.97) | 50.0 (1.97) |
| Mass, grammes | 1.00 | 1.10 | 1.20 |
| 50 mm range | |
|
|
| Specification | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Ruby part number | A-5003-4784 | A-5003-4785 | A-5003-4786 | A-5003-2289 | A-5003-2290 | A-5003-2291 |
| Silicon nitride part number | A-5004-1973 | A-5004-1974 | A-5004-1975 | A-5004-1976 | A-5004-1977 | A-5004-1978 |
| Zirconia part number | A-5004-2949 | A-5004-2950 | A-5004-2951 | A-5004-2952 | A-5004-2953 | A-5004-2954 |
| A — Ball dia., mm (in.) | 4.0 (0.16) | 5.0 (0.20) | 6.0 (0.24) | 4.0 (0.16) | 5.0 (0.20) | 6.0 (0.24) |
| B — Length, mm (in.) | 75.0 (2.96) | 75.0 (2.96) | 75.0 (2.96) | 100.0 (3.94) | 100.0 (3.94) | 100.0 (3.94) |
| C — Stem dia., mm (in.) | 2.0 (0.8) | 3.0 (0.12) | 3.0 (0.12) | 3.0 (0.12) | 3.0 (0.12) | 3.0 (0.12) |
| D — EWL*, mm (in.) | 75.0 (2.96) | 75.0 (2.96) | 75.0 (2.96) | 100.0 (3.94) | 100.0 (3.94) | 100.0 (3.94) |
| Mass, grammes | 0.75 | 1.35 | 1.45 | 1.50 | 1.59 | 1.78 |
| 75–100 mm range | |
|
|
|
|
|
| Specification | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Ruby part number | A-5000-7806 | A-5000-7807 | A-5000-3604 | A-5000-4154 | A-5000-4156 | A-5000-4158 |
| Silicon nitride part number | A-5004-0237 | |||||
| A — Ball dia., mm (in.) | 1.0 (0.04) | 2.0 (0.08) | 3.0 (0.12) | 4.0 (0.16) | 6.0 (0.24) | 8.0 (0.32) |
| B — Length, mm (in.) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) | 10.0 (0.40) | 11.0 (0.44) |
| C — Stem dia., mm (in.) | 0.7 (0.028) | 1.0 (0.04) | 1.5 (0.06) | 1.5 (0.06) | 2.5 (0.10) | 2.5 (0.10) |
| D — EWL*, mm (in.) | 4.5 (0.18) | 6.0 (0.24) | 7.0 (0.28) | 10.0 (0.40) | 10.0 (0.40) | 11.0 (0.44) |
| Mass, grammes | 0.3 | 0.3 | 0.4 | 0.4 | 0.9 | 1.5 |
| 10 mm range | |
|
|
|
|
|
| Specification | 1 | 2 | 3 |
|---|---|---|---|
| Ruby part number | A-5000-3603 | A-5000-4160 | A-5000-4161 |
| Silicon nitride part number | A-5003-1730 | ||
| A — Ball dia., mm (in.) | 2.0 (0.08) | 3.0 (0.12) | 4.0 (0.16) |
| B — Length, mm (in.) | 20.0 (0.79) | 20.0 (0.79) | 20.0 (0.79) |
| C — Stem dia., mm (in.) | 1.4 (0.05) | 1.5 (0.06) | 1.5 (0.06) |
| D — EWL*, mm (in.) | 14.0 (0.56) | 17.0 (0.67) | 20.0 (0.79) |
| Mass, grammes | 0.4 | 0.5 | 0.6 |
| 20 mm range | |
|
|
| Specification | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Ruby part number | A-5000-7805 | A-5003-1345 | A-5003-0577 | A-5003-0033 | A-5000-8663 | A-5003-0035 |
| A — Ball dia., mm (in.) | 0.5 (0.020) | 0.5 (0.020) | 0.7 (0.028) | 1.0 (0.04) | 1.0 (0.04) | 1.5 (0.06) |
| B — Length, mm (in.) | 10.0 (0.40) | 20.0 (0.79) | 20.0 (0.79) | 20.0 (0.79) | 27.5 (1.08) | 30.0 (1.19) |
| C — Stem dia., mm (in.) | 0.4 (0.02) | 0.3 (0.012) | 0.5 (0.020) | 0.8 (0.04) | 0.7 (0.028) | 1.0 (0.04) |
| D — EWL*, mm (in.) | 3.0 (0.12) | 7.0 (0.28) | 12.0 (0.48) | 12.5 (0.50) | 20.5 (0.81) | 22.5 (0.89) |
| Mass, grammes | 0.3 | 0.48 | 0.32 | 0.41 | 0.4 | 0.58 |
| 10–30 mm range | |
|
|
|
|
|
| Specification | 1 | 2 | 3 |
|---|---|---|---|
| Ruby part number | A-5004-3404 | A-5003-6985 | A-5003-4779 |
| Silicon nitride part number | A-5004-7273 | A-5004-7123 | |
| A — Ball dia., mm (in.) | 2.0 (0.08) | 2.0 (0.08) | 5.0 (0.20) |
| B — Length, mm (in.) | 30.0 (1.19) | 40.0 (1.58) | 30.0 (1.19) |
| C — Stem dia., mm (in.) | 1.5 (0.06) | 1.5 (0.06) | 2.5 (0.10) |
| D — EWL*, mm (in.) | 22.5 (0.89) | 32.5 (1.28) | 30.0 (1.19) |
| Mass, grammes | 0.51 | 0.58 | 0.93 |
| 30–40 mm range | |
|
|
| Specification | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Ruby part number | A-5003-7852 | A-5003-3877 | A-5003-9506 | A-5003-2285 | A-5003-2287 |
| A — Ball dia., mm (in.) | 3.0 (0.12) | 3.0 (0.12) | 3.0 (0.12) | 4.0 (0.16) | 6.0 (0.24) |
| B — Length, mm (in.) | 30.0 (1.19) | 40.0 (1.58) | 50.0 (1.97) | 50.0 (1.97) | 50.0 (1.97) |
| C — Stem dia., mm (in.) | 2.0 (0.08) | 2.0 (0.08) | 2.0 (0.08) | 3.0 (0.12) | 3.0 (0.12) |
| D — EWL*, mm (in.) | 27.5 (1.08) | 37.5 (1.48) | 47.0 (1.85) | 50.0 (1.97) | 50.0 (1.97) |
| Mass, grammes | 0.45 | 0.75 | 0.9 | 1.0 | 1.2 |
| 30–50 mm range | |
|
|
|
|
| Specification | Value |
|---|---|
| Part number | A-5000-3614 |
| Ball material | Ceramic |
| A — Ball dia., mm (in.) | 18.0 (0.71) |
| B — Length, mm (in.) | 11.0 (0.44) |
| C — Mass, grammes | 3.3 |
| Hemisphere | |
| Specification | A-5003-4011 | A-5000-7811 | A-5003-4787 | A-5003-4788 | A-5000-7629 | A-5000-3626 |
|---|---|---|---|---|---|---|
| Material | Tungsten carbide | Tungsten carbide | Tungsten carbide | Tungsten carbide | Stainless steel | Stainless steel |
| Span, mm (in.) | 10.0 (0.40) | 10.0 (0.40) | 20.0 (0.79) | 20.0 (0.79) | 18.0 (0.71) | 30.0 (1.19) |
| Ball dia., mm (in.) | 0.5 (0.020) | 1.0 (0.04) | 0.5 (0.020) | 1.0 (0.04) | 2.0 (0.08) | 2.0 (0.08) |
| Stem dia., mm (in.) | 0.3 (0.012) | 0.7 (0.028) | 0.3 (0.012) | 0.7 (0.028) | 1.4 (0.05) | 1.4 (0.05) |
| EWL*, mm (in.) | N/A | N/A | N/A | N/A | 12.0 (0.48) | 12.0 (0.48) |
| Mass, grammes | 0.7 | 0.5 | 0.7 | 0.9 | 1.3 | 1.8 |
| Star styli | |
|
|
|
|
|
| Specification | A-5003-4789 | A-5003-4790 | A-5003-4791 | A-5000-3609 |
|---|---|---|---|---|
| Material | Tungsten carbide | Tungsten carbide | Tungsten carbide | Stainless steel |
| Ball dia., mm (in.) | 1.0 (0.04) | 0.5 (0.020) | 1.0 (0.04) | 2.0 (0.08) |
| Overall length, mm (in.) | 8.5 (0.33) | 18.5 (0.73) | 18.5 (0.73) | 16.3 (0.64) |
| Stem dia., mm (in.) | 0.7 (0.028) | 0.4 (0.02) | 0.7 (0.028) | 1.4 (0.05) |
| EWL*, mm (in.) | 3.5 (0.14) | 7.0 (0.28) | 11.0 (0.44) | 12.0 (0.48) |
| Mass, grammes | 0.31 | 0.43 | 0.45 | 0.44 |
| Star styli | |
|
|
|
| Specification | A-5000-3611 | A-5004-1387 | A-5004-1395* | A-5004-1396* | A-5000-7809* |
|---|---|---|---|---|---|
| Material | Ruby | Silver steel | Silver steel | Silver steel | Silver steel |
| Disc dia., mm (in.) | 6.0 (0.24) | 10.0 (0.40) | 12.0 (0.47) | 14.0 (0.55) | 18.0 (0.71) |
| Disc depth, mm (in.) | 1.2 (0.05) | 1.2 (0.05) | 1.6 (0.06) | 1.6 (0.06) | 1.5 (0.06) |
| Roller depth, mm (in.) | 2.0 (0.08) | 2.0 (0.08) | 2.5 (0.10) | 2.5 (0.10) | 2.5 (0.10) |
| Stem dia., mm (in.) | 2.0 (0.08) | 2.0 (0.08) | 4.2 (0.17) | 4.2 (0.17) | 4.2 (0.17) |
| Mass, grammes | 0.6 | 1.0 | 2.0 | 2.5 | 3.0 |
| Disc styli | |
|
|
|
|
| Specification | A-5000-3613 | A-5000-7810* | A-5000-4187* |
|---|---|---|---|
| Material | Silver steel | Silver steel | Silver steel |
| Disc dia., mm (in.) | 18.0 (0.71) | 25.0 (0.99) | 25.0 (0.99) |
| Disc depth, mm (in.) | 2.2 (0.09) | 1.5 (0.06) | 3.0 (0.12) |
| Roller depth, mm (in.) | 3.0 (0.12) | 2.5 (0.10) | N/A |
| Stem dia., mm (in.) | N/A | 4.2 (0.17) | N/A |
| Mass, grammes | 2.7 | 4.0 | 3.8 |
| Disc styli | |
|
|
| Specification | A-5555-0298 | A-5555-0297 | A-5555-0299 | A-5555-0300 |
|---|---|---|---|---|
| Material | Ceramic | Ceramic | Ceramic | Ceramic |
| Disc dia., mm (in.) | 4.0 (0.16) | 8.0 (0.32) | 14.0 (0.55) | 20.0 (0.79) |
| Disc depth, mm (in.) | 1.0 (0.04) | 1.5 (0.06) | 2.0 (0.08) | 2.5 (0.10) |
| Roller depth, mm (in.) | N/A | N/A | N/A | N/A |
| Stem dia., mm (in.) | 1.0 (0.04) | 1.5 (0.06) | N/A | N/A |
| Mass, grammes | 1 | 1 | 1 | 3.8 |
| Disc styli | |
|
|
|
* M2 stylus can be attached to front face.
| Specification | A-5004-7589 | A-5004-7590 | A-5000-8876 | A-5000-8877 | A-5000-7812 | A-5003-0073 |
|---|---|---|---|---|---|---|
| Material | Silver steel | Silver steel | Ruby | Ruby | Ruby | Ruby |
| Cylinder dia., mm (in.) | 1.5 (0.06) | 3.0 (0.12) | 1.0 (0.04) | 1.5 (0.06) | 2.0 (0.08) | 4.0 (0.16) |
| Overall length, mm (in.) | 10.75 (0.42) | 12.75 (0.50) | 15.0 (0.60) | 15.0 (0.60) | 20.0 (0.79) | 22.0 (0.87) |
| Stem dia., mm (in.) | 1.0 (0.04) | 1.5 (0.06) | N/A | N/A | 1.6 (0.07) | 2.0 (0.08) |
| EWL*, mm (in.) | 1.25 (0.05) | 3.8 (0.15) | 8.0 (0.32) | 8.0 (0.32) | 7.2 (0.29) | 10.0 (0.40) |
| Mass, grammes | 0.3 | 0.6 | 0.3 | 0.3 | 0.5 | 0.9 |
| Cylinder styli | |
|
|
|
|
|
| Specification | A-5003-1208 | A-5003-1210 | A-5003-1218 | A-5003-1219 | A-5003-1228 | A-5003-0074 | A-5003-1258 |
|---|---|---|---|---|---|---|---|
| Cylinder dia., mm (in.) | 0.3 (0.012) | 0.5 (0.020) | 1.0 (0.04) | 1.5 (0.06) | 2.0 (0.08) | 2.0 (0.08) | 3.0 (0.12) |
| Overall length, mm (in.) | 10.2 (0.41) | 15.3 (0.61) | 35.5 (1.40) | 15.8 (0.63) | 16.0 (0.63) | 40.0 (1.58) | 22.5 (0.89) |
| EWL*, mm (in.) | 2.7 (0.11) | 7.8 (0.31) | 28.0 (1.10) | 8.3 (0.33) | 8.5 (0.34) | 32.0 (1.26) | 22.5 (0.89) |
| Mass, grammes | 0.3 | 0.3 | 0.7 | 0.6 | 0.8 | 2.0 | 2.0 |
| Hemispherical styli | |
|
|
|
|
|
|
| Specification | A-5004-7610 | A-5004-7585 | A-5004-7586 | A-5004-7591 | A-5004-7611 |
|---|---|---|---|---|---|
| Length, mm (in.) | 5.0 (0.20) | 10.0 (0.40) | 20.0 (0.79) | 30.0 (1.19) | 40.0 (1.58) |
| Stem dia., mm (in.) | 3.0 (0.12) | 3.0 (0.12) | 3.0 (0.12) | 3.0 (0.12) | 3.0 (0.12) |
| Mass, grammes | 0.2 | 0.4 | 0.9 | 1.4 | 1.8 |
| Stylus extensions | |
|
|
|
|
| Specification | A-5003-0070 | A-5003-0071 | A-5003-0072 |
|---|---|---|---|
| Length, mm (in.) | 30.0 (1.19) | 40.0 (1.58) | 50.0 (1.97) |
| Stem dia., mm (in.) | 3.0 (0.12) | 3.0 (0.12) | 3.0 (0.12) |
| Mass, grammes | 0.97 | 1.22 | 1.51 |
| Stylus extensions | |
|
|
| Specification | A-5003-2280 | A-5003-2281 | A-5003-2282 | A-5003-2283 |
|---|---|---|---|---|
| Length, mm (in.) | 40.0 (1.58) | 50.0 (1.97) | 70.0 (2.76) | 90.0 (3.55) |
| Stem dia., mm (in.) | 3.0 (0.12) | 3.0 (0.12) | 3.0 (0.12) | 3.0 (0.12) |
| Outer dia., mm (in.) | 3.5 (0.14) | 3.5 (0.14) | 3.5 (0.14) | 3.5 (0.14) |
| Mass, grammes | 0.9 | 1.0 | 1.3 | 1.5 |
| Stylus extensions | |
|
|
|
Tightening tool recommended: A-5003-2300.
| Specification | A-5004-7588 | A-5000-7813 | A-5000-3614 | A-5004-7400 |
|---|---|---|---|---|
| Material | Silver steel | Tungsten carbide | Ceramic | Ceramic |
| Length, mm (in.) | 15.0 (0.60) | 10.0 (0.40) | 11.0 (0.44) | 18.0 (0.71) |
| Ball dia., mm (in.) | N/A | N/A | 18.0 (0.71) | 30.0 (1.19) |
| End feature, mm (in.) | Flat Rad 0.05 (0.002) | Spherical Rad 0.1 (0.004) | N/A | N/A |
| Mass, grammes | 0.7 | 0.7 | 3.3 | 14.5 |
| Angles | 30° inclusive | 30° inclusive | N/A | N/A |
| Special purpose styli | |
|
|
|
Malaysia
