Step Calibration Blocks for Ultrasonic Thickness Gauges are precision reference standards designed to calibrate, verify, and check the accuracy of ultrasonic thickness measuring instruments. Featuring multiple precision-machined thickness steps in a single block, they allow users to perform fast, reliable calibration across a range of measurement values, ensuring consistent and accurate inspection results.
YUSHI offers a comprehensive range of step calibration blocks in various thickness steps and materials, along with custom manufacturing services.
In addition to supplying high-quality Step Calibration Blocks, we also provide professional calibration services to ensure your calibration blocks maintain their accuracy and traceability. Our calibration service helps verify the dimensional accuracy of your reference standards, supporting quality assurance programs and compliance with industry and laboratory requirements.
4-Step Calibration Block
|
Metric Unit: 3mm, 5mm, 10mm, 15mm 2.5mm, 5mm, 10mm, 20mm 5mm, 10mm, 15mm, 20mm 6.25mm, 12.5mm, 18.75mm, 25mm 0.8mm, 1mm, 1.5mm, 2mm (Thin 4-Step) 1mm, 1.5mm, 2mm, 2.5mm (Thin 4-Step) |
Inch Unit: 0.100'', 0.200'', 0.400'', 0.600'' 0.250'', 0.500'', 0.750'', 1.000'' 0.500'', 1.000'', 1.500'', 2.000'' 0.040'', 0.060'', 0.080'', 0.100''(Thin 4-Step) |
 |
 |
| 4-Step 2.5mm, 5mm, 10mm, 20mm | 4-Step 0.250'', 0.500'', 0.750'', 1.000'' |
5-Step Calibration Block
|
Metric Unit: 1mm, 2mm, 3mm, 4mm, 5mm 2.5mm, 5mm, 7.5mm, 10mm, 12.5mm 5mm, 10mm, 15mm, 20mm, 25mm 0.5mm, 1mm, 1.5mm, 2mm, 2.5mm (Thin 5-Step) 0.25mm, 0.5mm, 0.75mm, 1mm, 1.25mm (Ultra Thin 5-Step) |
Inch Unit: 0.100'', 0.200'', 0.300'', 0.400'', 0.500'' 0.250'', 0.500'', 0.750'', 1.000'' 0.500'', 1.000'', 1.500'', 2.000'', 2.500'' 0.500'', 0.750'', 1.000'', 1.500'', 2.000'' 0.050'', 0.250'', 0.500'', 1.000'', 2.000'' 0.020'', 0.040'', 0.060'', 0.080'', 0.100'' (Thin 5-Step) 0.010'', 0.020'', 0.030'', 0.040'', 0.050'' (Ultra Thin 5- Step) |
 |
 |

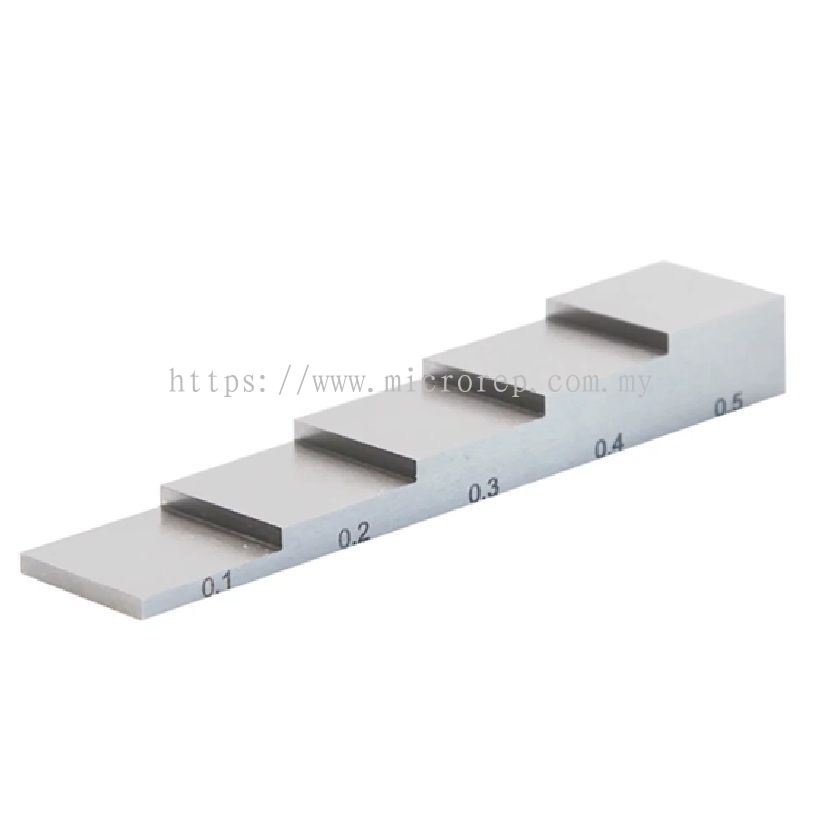

| 5-Step 5mm, 10mm, 15mm, 20mm, 25mm | 5-Step 0.1'', 0.2'', 0.3'', 0.4'', 0.5'' |
6-Step Calibration Block
 |
 |
| 6-Step 1mm, 3mm, 5mm, 10mm, 15mm, 20mm | 6-Step 2.5mm, 5mm, 10mm, 15mm, 20mm, 25mm |
7-Step Calibration Block
 |
 |
| 7-Step 1mm, 1.5mm, 2mm, 4mm, 6mm, 8mm, 10mm | 7-Step 3mm, 12mm, 24mm, 30mm, 36mm, 42mm, 48mm |
8-Step Calibration Block
 |
 |
| 8-Step 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm | Ultra Thin 8-Step 0.030'', 0.040'', 0.050'', 0.060'', 0.070'', 0.080'', 0.090'', 0.100'' |
10-Step Calibration Block
|
Metric Unit: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm 2mm, 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm 2.5mm, 5mm, 7.5mm, 10mm, 12.5mm, 15mm, 17.5mm, 20mm, 22.5mm, 25mm |
Inch Unit: 0.050'', 0.100'', 0.150'', 0.200'', 0.250'', 0.300'', 0.350'', 0.400'', 0.450'', 0.500'' 0.100'', 0.200'', 0.300'', 0.400'', 0.500'', 0.600'', 0.700'', 0.800'', 0.900'', 1.000'' 1.100'', 1.200'', 1.300'', 1.400'', 1.500'', 1.600'', 1.700'', 1.800'', 1.900'', 2.000'' |
 |
 |
| 10-Step 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm | 10-Step 0.1'', 0.2'', 0.3'', 0.4'', 0.5'', 0.6'', 0.7'', 0.8'', 0.9'', 1.0'' |
