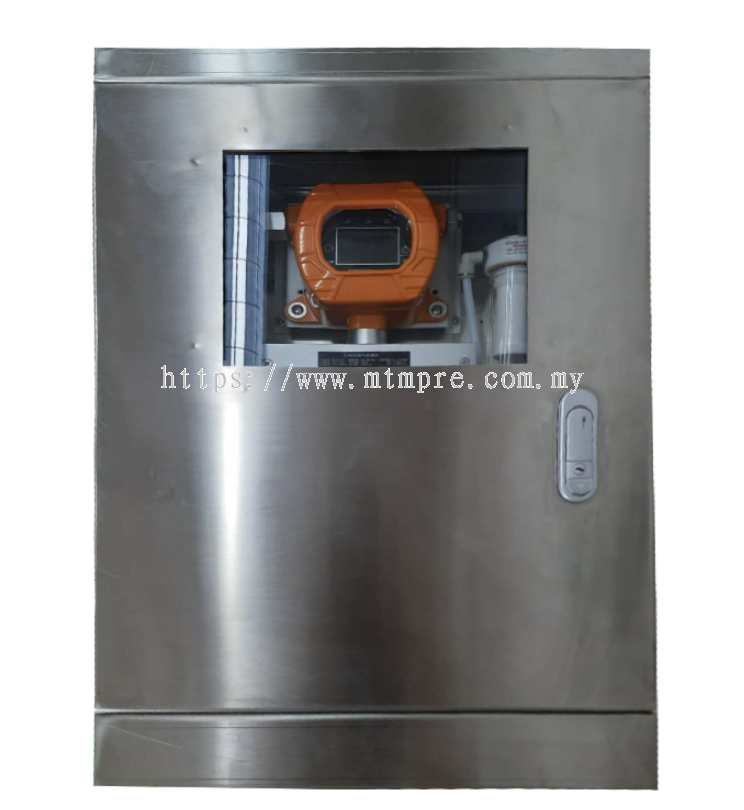

The Eranntex Gas Pretreatment System TH 1000-A features a waterproof design, ensuring fast, reliable, and stable detection performance. The gas analyzer can be installed internally or externally in a chassis. The standard sampling distance is 10 meters, and with the optional vacuum pump, the sampling distance can exceed 70 meters.
Processing Gases: Standard humidity (for high humidity, select the TH2000), dusty flue gas, or other test gases (for high dust levels, select the TH3000).
Operating Environment: -40°C to +70°C, ≤95% RH.
Sampling Temperature: -40°C to +70°C (standard).
Sampling Humidity: 0 to 99% RH.
Constant Temperature: 25°C. Adjustable temperature after treatment (optional)
Constant humidity: 70% RH, adjustable humidity after treatment (optional)
Operating mode: Fixed continuous operation, pump-type measurement (supports positive pressure, negative pressure, and vacuum environments) (using imported vacuum sampling pump)
Sampling distance: Standard 10 meters, with an optional high-power vacuum pump, the sampling distance can exceed 70 meters. For higher pressures of the measured gas, the sampling distance may need to be increased accordingly.
Operating voltage: 220VAC, 50Hz
Output signal: 4-20mA, RS485, passive contact, wireless transmission
Protection level: IP65 waterproof, suitable for outdoor use
