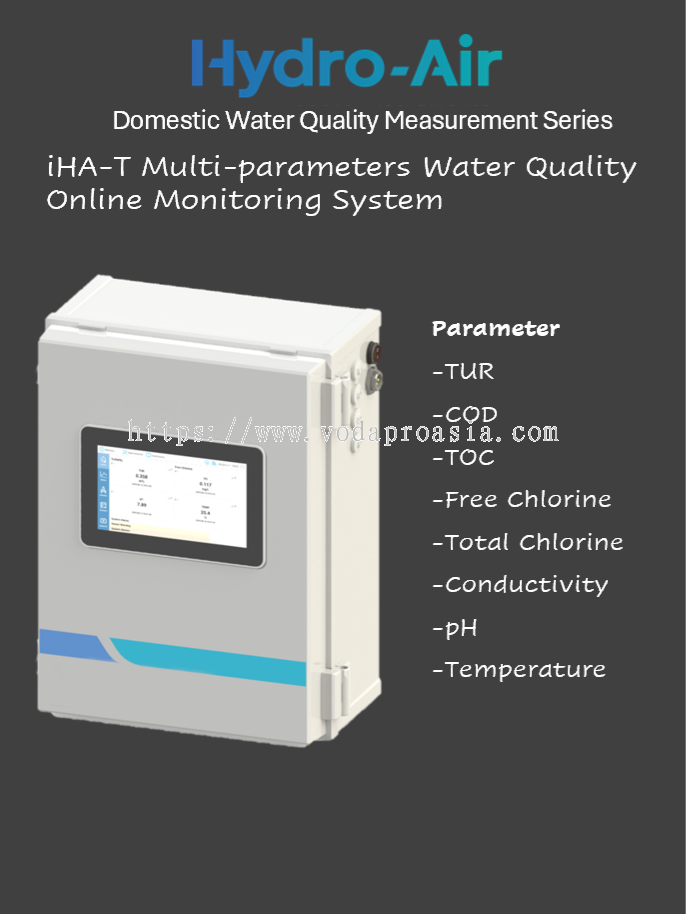

The iHA-T series water quality monitoring system is a multi-functional water quality monitoring system integrating control, sensing, wireless communication, and cloud platforms. The iHA-T series water quality monitoring system can monitor COD, TOC, turbidity, free chlorine/total chlorine (Constant voltage method, membrane-covered method, DPD method), pH, conductivity, and water temperature in real-time with optional parameters.
Water quality information can be collected and detected on-site through this system, transmitted to the monitoring system in real-time, and interacted with the cloud platform through significant data statistics, analysis, and automatic data verification. It can realize closed-loop control of the pump room, laying a solid foundation for constructing an unattended smart water supply platform.
| Item | Specification |
|---|---|
| Display | 7-inch LCD touch screen |
| Dimension | 400 × 300 × 180mm |
| Power requirements | 100 – 230VAC, 50 / 60Hz |
| Operating temperature | 2 to 50℃ |
| Pressure | 1 bar |
| Installation | Wall – mounted |
| Sample flow rate | 200-500mL/min |
| Communication | RS485 (Modbus RTU), WiFi, 4G |
| Parameter | Model No. | Range | Resolution | Accuracy （Standard solution） |
|---|---|---|---|---|
| TUR | HA-M-SCx | 0-100 NTU/FNU | 0.001 NTU | ±2% or ±0.015 NTU |
| COD | HA-M-SCx | 0-50 mg/L | 0.001mg/L | ±2% F.S. |
| TOC | HA-M-SCx | 0-20 mg/L | 0.001mg/L | ±2% F.S. |
| Free Chlorine | HA-Cl-C/F | 0-2 mg/L, 0-5 mg/L, 0-20 mg/L | 0.001mg/L | ±3% F.S. |
| Free Chlorine | DPD method | 0-2 mg/L, 0-5 mg/L, 0-10 mg/L | 0.001mg/L | ±5% or ±0.05mg/L |
| Total Chlorine | HA-Cl-T | 0-2 mg/L, 0-5 mg/L, 0-20 mg/L | 0.001mg/L | ±3% F.S. |
| Total Chlorine | DPD method | 0-2 mg/L, 0-5 mg/L, 0-10 mg/L | 0.001mg/L | ±5% or ±0.05mg/L |
| Conductivity | HA-EC | 0.001-200 000 μs/cm | Minimum 0.001 μS/cm | ±5% |
| pH | HA-pH | 0-14 pH | 0.01 pH | ±0.1 pH |
| Temperature | HA-pH | 2-50 ℃ | 0.1 ℃ | ±1 ℃ |
