Tohnichi CSP/CSP-MH Torque Wrench

Interchangeable head and preset torque wrench.

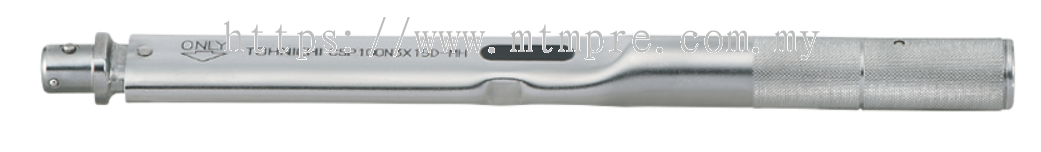

CSP100N3X15D-MH [Overall length 290 mm]

CSP6N4X8D [Overall length 165 mm]

CSP2NX6D [Overall length L' = 133 mm]

Application

For assembly and mass-production.

Features

Preset interchangeable head torque wrenches
The set torque cannot be changed without using a special tool (sold separately), preventing the operator from changing torque by mistake.
A wide selection of interchangeable heads, letting you choose the right one for the task and reducing overall purchasing costs.
A clear “click” sound signals tightening completion upon reaching the set torque.
CSP25N3X10D CSP50N3X12D, CSP50N3X15D, CSP100N3X15D and CSP140N3X15D can be used with AH adjustable open end interchangeable heads.
Tohnichi’s interchangeable head torque wrenches can be used with our interchange head lineup, which offers the best selection in the world, making these wrenches ideal for your work.
Except for some products, the CSP/CSP-MH series are compliant with ISO 6789:2017 starting January 2022. For more information, see the technical data “Initiatives for ISO 6789:2017” at the bottom of the screen.

Specifications

Accuracy ±3%

MODEL

CSP2NX6D

CSP5NX6D

CSP1.5N4X8D

CSP3N4X8D

CSP6N4X8D

CSP12N4X8D

S.I. RANGE［N0鹠］

0.4～2

1～5

0.3～1.5

0.6～3

1～6

2～12

METRIC RANGE［kgf0鹀m］

4～20

10～50

3～15

6～30

10～60

20～120

AMERICAN RANGE［lbf0鹖n］

3.5～17.7

8.8～44.2

3～13

6～25

10～50

20～100

APPLICABLE BOLT
（REFERENCE）

COMMON STEEL

M5, M6

M3（M3.5）

M4（M4.5）

M5, M6

（M7）

HIGH TENSION

（M3.5）

（M4.5）

M2.5

M3（M3.5）

M4（M4.5）

M5, M6

MAX HAND FORCE［N］

17.5

DIMENSION［mm］

EFFECTIVE LENGTH

114

118

153

OVERALL LENGTH

133

130

165

HEAD

BODY

7.3

9.2

WEIGHT［kg］

0.06

0.2

Accuracy ±3%

MODEL

CSP25N3X10D

CSP25N3X10D-MH

CSP50N3X12D

CSP50N3X12D-MH

CSP50N3X15D

CSP50N3X15D-MH

S.I. RANGE［N0鹠］

5～25

10～50

METRIC RANGE［kgf0鹀m］

50～250

100～500

AMERICAN RANGE［lbf0鹖n］

50～200

100～400

APPLICABLE BOLT
（REFERENCE）

COMMON STEEL

M10

HIGH TENSION

（M7）

MAX HAND FORCE［N］

134

240

229

DIMENSION［mm］

EFFECTIVE LENGTH

186

208

218

OVERALL LENGTH

195

215

220

HEAD

BODY

25.5

9.2

11.2

WEIGHT［kg］

0.2

0.3

Accuracy ±3%

MODEL

CSP100N3X15D

CSP100N3X15D-MH

CSP140N3X15D

CSP140N3X15D-MH

CSP200N3X19D

CSP280N3X22D

CSP420N3X22D

S.I. RANGE［N0鹠］

20～100

30～140

40～200

40～280

60～420

METRIC RANGE［kgf0鹀m/kgf0鹠］

kgf0鹀m 200～1000

300～1400

400～2000

kgf0鹠 4～28

6～42

AMERICAN RANGE［lbf0鹖n］

200～850

300～1000

350～1600

350～2500

600～3600

APPLICABLE BOLT
（REFERENCE）

COMMON STEEL

M12(M14)

M16

(M18)

M20

(M22) M24

HIGH TENSION

M10

M12

(M14)

M16

(M18)

MAX HAND FORCE［N］

344

400

449

424

442

DIMENSION［mm］

EFFECTIVE LENGTH

291

350

445

660

950

OVERALL LENGTH

290

350

430

625

920

HEAD

BODY

38.6

12.2

16.1

21.7

27.2

21.7

27.2

WEIGHT［kg］

0.45

0.55

1.4

2.7

Notes

Overall length does not include interchangeable head.

Except for CSP2NX6D, CSP5NX6D, CSP1.5N4X8D, and CSP3N4X8D, products are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates will be different from older products.

Dimensions

Expand dimensions

CSP1.5N4～12N4

CSP25N3～140N3

CSP2N/5N, CSP-MH, CSP200N3~420N3

REMARK

Note: for interchangeable head insert dimensions, click here.

◆ How to order

Specify Tohnichi, model name and torque value.

[EX.1] CSP100N3X15DX TORQUE FREE

[Example 2] Tohnichi CSP100N3X15DX 50N0鹠

◆ Things to remember when ordering

Not available for inspection purposes. For models with limit switch designed to prevent human tightening errors, refer to QSPLS/CSPLS/SPLS/RSPLS/SPLS-N. CSP is preset, so you cannot set torque without a tester. When ordering, be sure to specify operating torque.
