Tohnichi SCSP-MH Torque Wrench

European type interchangeable head preset torque wrenches, knurled grip type

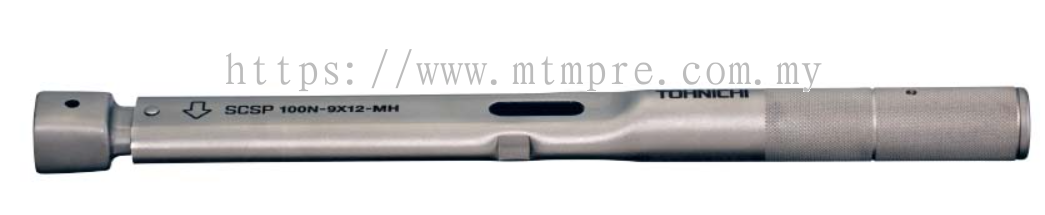

SCSP100N-9X12-MH

Enlarged view of interchangeable head insert





Application

  • For assembly and mass-production.

Features

  • Preset torque wrenches capable of using standard European spec interchangeable heads.
  • The set torque cannot be changed without using a special tool (sold separately), preventing the operator from changing torque by mistake.
  • A clear “click” sound by internal toggle mechanism signals tightening completion upon reaching the set torque.

Specifications

    SCSP1.5N-9X12-MH SCSP3N-9X12-MH SCSP6N-9X12-MH SCSP12N-9X12-MH SCSP25N-9X12-MH SCSP50N-9X12-MH SCSP100N-9X12-MH SCSP200N-14X18-MH
TORQUE RANGE[Nem] MIN. ~ MAX.   0.3～1.5 0.6～3 1～6 2～12 5～25 10～50 20～100 40～200
HEAD SIZE [mm]   9×12 14×18
MAX. HAND FORCE[N]   12.30 24.59 38.22 76.43 138.12 259.07 376.65 476.19
DIMENSION[mm] EFFECTIVE LENGTH Ｌ 122 157 181 193 265.5 420
OVERALL LENGTH Ｌ’ 144 178 204 222 294 439
HEAD Ｃ 20 21 23 30
ｂ 17 18 20 26
BODY ｍ 19 25.5 28 35
ｎ 9.2 11.2 12.2 15
Ｄ 15 20 21.7 27.2
WEIGHT[kg]   0.12 0.15 0.19 0.33 0.49 1.11
Notes

  • Overall length does not include interchangeable head.

  • SCSP-MH models can be used only with European type interchangeable heads. Cannot be used with regular interchangeable heads manufactured by Tohnichi.



Dimensions

Expand dimensions

◆ How to order

[Tohnichi] [Model] Please specify.

Example: Tohnichi SCSP100N-9X12-MH




◆ Things to remember when ordering

SCSP-MH series products are not sold in Japan.



Alternative product

SCSP

CSP/CSP-MH

Pokayoke (error-proofing)
