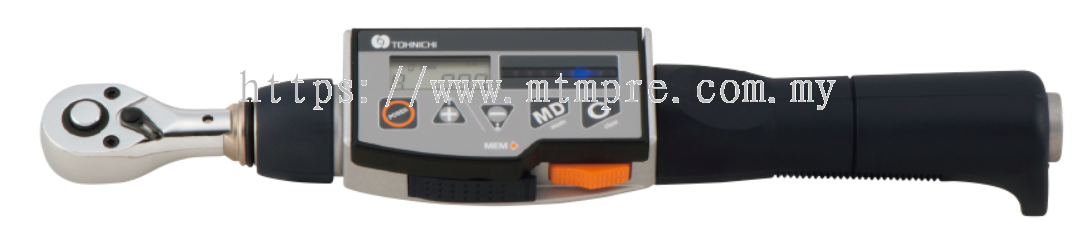

Tohnichi CPT/CPT-G Digital Torque Wrench

CPT20X10D [Overall length 280.5 mm] + TQH10D (not included with models without -SET)

CPT100X15D [Overall length 384.5 mm] + TQH15D (not included with models without -SET)

CPT280X22D [Overall length 591.5 mm] + TQH22D (not included with models without -SET)

Preset Tightening Mode (Red LED shows the level of the applied torque)

Judgment Tightening Mode (As torque is being applied prior to completion)

Judgment Tightening Mode (The case of exceeding target torque range)

Saved data can be output through USB cable.
Intuitive machine interface, bright LED lamp indicates the current torque level against the target torque.
Robust and durable aluminum body.
With CE mark. For international use including the EU region.
DtRcv (Data Receiver) is a wired data input tool facilitating Excel® data management, and can be downloaded without charge. * ExRcv (Excel Receiver) was upgraded to DtRcv (Data Receiver) in March 2021. * Excel® is a registered trademark of Microsoft Corporation.
Tohnichi’s interchangeable head torque wrenches can be used with our interchange head lineup, which offers the best selection in the world, making these wrenches ideal for your work.

Accuracy ±3%
MODEL					CPT20X10D-G		CPT50X12D-G		CPT100X15D-G		CPT200X19D-G		CPT280X22D-G
TORQUE RANGE [Nem]	MIN. - MAX.				4 - 20		10 - 50		20 - 100		40 - 200		56 - 280
	1 DIGIT				0.02		0.05		0.1		0.2
TORQUE RANGE [kgfecm]	MIN. - MAX.				40 - 200		100 - 500		200 - 1000		400 - 2000		560 - 2800
	1 DIGIT				0.2		0.5		1		2
TORQUE RANGE [kgfem]	MIN. - MAX.				0.4 - 2		1 - 5		2 - 10		4 - 20		5.6 - 28
	1 DIGIT				0.002		0.005		0.01		0.02
TORQUE RANGE [lbfein]	MIN. - MAX.				36 - 180		100 - 440		200 - 880		360 - 1700		500 - 2400
	1 DIGIT				0.2		0.5		1		0.2
TORQUE RANGE [lbfeft]	MIN. - MAX.				3 - 14.5		7.5 - 36		15 - 73		30 - 150		42 - 200
	1 DIGIT				0.02		0.05		0.1		0.2
MAX. HAND FORCE [N]					81.6		196.9		275.5		428.3		466.7
DIMENSION [mm]	EFFECTIVE LENGTH			L	245		254		363		467		600
	OVERALL LENGTH			L'1	280.5		282.5		384.5		475.5		591.5
				L'2	330		339		475.5		556		700
	SQ. DRIVE			a	9.5				12.7				19
				b	11				15.5				23
	HEAD			C	32				40				63
				h	32				40				55
WEIGHT [kg]					0.63		0.65		0.85		1.37		1.76

MODEL			CPT20X10D-G-SET			CPT50X12D-G-SET		CPT100X15D-G-SET		CPT200X19D-G-SET		CPT280X22D-G-SET
STANDARD ACCESSORIES	RATCHET HEAD		TQH10D			TQH12D		TQH15D		TQH19D		TQH22D
	STORAGE CASE		CPT Small case (844)							CPT Large case (845)
	BATTERY		AA alkaline battery 2 pcs.

DISPLAY		14-segment LCD 6 line 7mm height
		7-segment LCD 4line 3mm height
		Battery life indicator (4 steppers)
MEMORY		50
TORQUE SETTING MEMORY		Preset mode: 10 torque values to register
		Judge mode: Up to 10 values of each Upper/Lower/Tightening direction
BASIC FUNCTION		Auto power o (3 minutes)
		Auto memory/Reset
		Auto zero
COMMUNICATION FUNCTION		RS232C compliance
POWER		AA alkaline battery 2 pcs.
CONTINUOU USE		Approx. 40 hours
TEMPERATURE IN USE		0 - 40 (no condensation)
