Tohnichi QL-MH Torque Wrench

Knurled metal handle version of QL model.

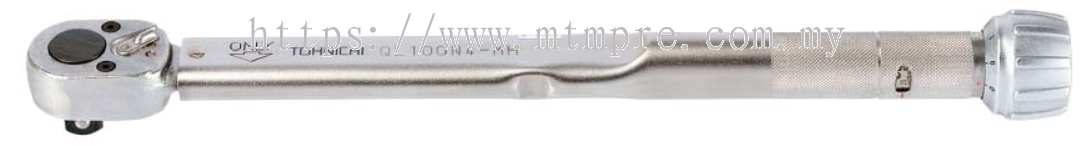

QL100N4-MH [Overall length 333 mm]

Application

Suitable for use in greasy conditions (oil, chemicals, etc.) such as garage work.

Features

Metal handle version of QL model
A clear “click” sound by internal toggle mechanism signals tightening completion upon reaching the set torque.
The ratchet head has 24 teeth with a 15 degree operating range, allowing for use in space-limited working conditions.
Torque setting is easy to adjust by knob and scale.
Large adjusting knob designed to enhance usability in torque setting by oily hands.
Except for some products, the QL-MH series is compliant with ISO 6789:2017 starting January 2022. For more information, see the technical data “Initiatives for ISO 6789:2017” at the bottom of the screen.

Specifications

Accuracy ±3%
S.I. MODEL			QL2N-MH	QL5N-MH	QL10N-MH	QL15N-MH	QL25N-MH	QL50N-MH	QL100N4-MH	QL140N-MH	QL200N4-MH	QL280N-MH
TORQUE RANGE [N0m]	MIN. MAX.		0.42	5	210	315	525	1050	20100	30140	40200	40280
TORQUE RANGE [N0m]	GRAD.		0.02	0.05	0.1		0.25	0.5	1		2
METRIC MODEL			20QL-MH	50QL-MH	100QL-MH	150QL-MH	225QL-MH	450QL-MH	900QL4-MH	1400QL-MH	1800QL4-MH	2800QL-MH
TORQUE RANGE [Kgf0 cm / Kgf0m]	MIN. MAX.		kgf0cm 420	1050	20100	30150	50250	100500	2001000	3001400	4002000	kgf0m 428
TORQUE RANGE [Kgf0 cm / Kgf0m]	GRAD.		kgf0cm 0.2	0.5	1		2.5	5	10		20	kgf0m 0.2
AMERICAN MODEL			QL15I-2A-MH	QL30I-2A-MH	QL50I-2A-MH	QL100I-2A-MH	-
TORQUE RANGE [lbf0in]	MIN. MAX.		315	630	1050	20100	-
TORQUE RANGE [lbf0in]	GRAD.		0.1	0.2	0.5	1	-
APPLICABLE BOLT	COMMON STEEL		M4	M5,M6	M7	M8		M10	M12M14	M16	M18	M20
APPLICABLE BOLT	HIGH TENSION		M3.5	M4.5	M6	M6M7	M7	M8	M10	M12	M14	M16
MAX. HAND FORCE [N]			20	50	74.1	112	155	278	393	438	500	467
DIMENSION [mm]	EFFECTIVE LENGTH	L	100		135		162	180	255	320	400	600
	OVERALL LENGTH	L'	160		195		226	258	333	400	489	692
	SQ. DRIVE	a	6.35				9.53		12.7			19.05
	SQ. DRIVE	b	7.5				11		14		15.4	20.5
	HEAD	R	11.5				13	16	17	18.8	20	22.5
	HEAD	h	17.5				22	25.6	32	33.5	38.4	44.5
	BODY	m	19					25.5	28		35
		n	9.2					11.2	12.2		15
		d	15					20	21.7		27.2
		D	25.5				26.5	36	37		46.5
WEIGHT [kg]			0.16		0.19		0.25	0.45	0.69	0.79	1.4	1.9

Notes

SI unit products (except QL2N-MH and QL5N-MH) and metric unit products (except 20QL-MH and 50QL-MH) are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates will be different from older products. American unit products are not compliant with ISO 6789:2017.
