Tohnichi RTDZ Torque Screwdriver
Designed for use in environments where there are potential electric shock hazards.

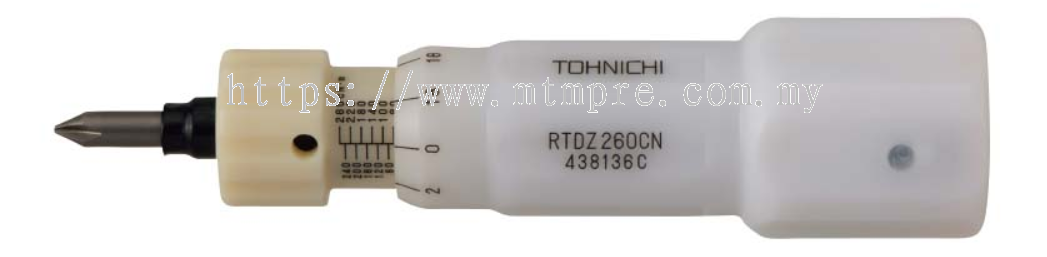

RTDZ260CN [Overall length 150 mm]
RTDZ500CN [Overall length 183 mm]
Non-slip shape * Note: Bit in photo is an optional accessory.
Application
- Electric motor vehicles, batteries, contamination prevention.
Features
- Withstands voltage: Max AC1000V.
- Prevents electric shock accidents.
- When set torque value is achieved, rotary slip prevents over-torque.
- Ideal for electric car assembly, connection of battery terminal, and wiring work.
- Torque setting is easy to adjust by knob and scale.
- Counterclockwise tightening model available upon request. Please contact us.
Specifications
| Accuracy ± 3% |
| S.I. MODEL |
RTDZ260CN |
RTDＺ500CN |
TORQUE RANGE
[cN0鹠] |
MIN.～MAX. |
60～260 |
100～500 |
| GRAD. |
2 |
5 |
| METRIC MODEL |
26RTDZ |
50RTDZ |
TORQUE RANGE
[kgf0鹀m] |
MIN.～MAX. |
6～26 |
10～50 |
| GRAD. |
0.2 |
0.5 |
| APPLICABLE SCREW |
SMALL SCREW |
M4（M4.5） |
M5,M6 |
| TAPPING SCREW |
M4 |
（M4.5） |
DIMENSION
[mm] |
OVERALL LENGTH |
L' |
150 |
183 |
| GRIP |
L1 |
110 |
126 |
| W1 |
32 |
33.2 |
| W2 |
39 |
47 |
| SHAPE |
HEXAGON |
OCTAGON |
| D1 |
42 |
50 |
| D3 |
12 |
| D4 |
30 |
35 |
| D5 |
30.5 |
33 |
| WEIGHT [kg] |
0.22 |
0.38 |
