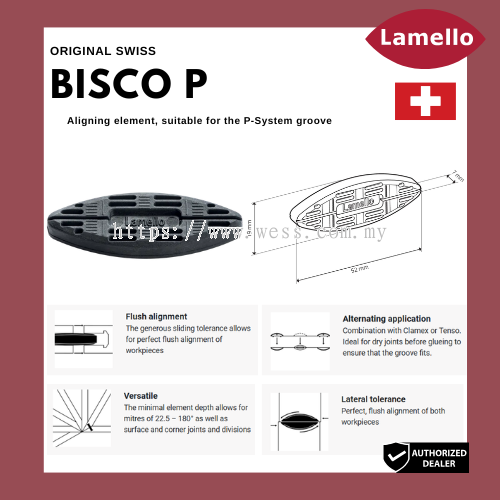

LAMELLO OFFICIAL AUTHORIZED BISCO P-14/ P-10
Bisco P-14 is used in combination with Clamex P-14 or Tenso P-14 and Bisco P-10 with the same connectors in size P-10.
Plastic element for Clamex P and Tenso P
Align furniture parts flush together with Clamex P
Before gluing with Tenso P, check furniture for quality control with Bisco P
All angle and miter joints from 22.5° to 180°
Bisco P-10 from material thickness 12 mm, Bisco P-14 from 16 mm
=========================================================================================================================
Product description
The Bisco P is a plastic element. The aligning element fits into the 7 mm wide P-System groove. However, it is not anchored with positive locking like the Clamex P, but instead clamps in the groove due to its surface structure. It can be used like a wooden biscuit with PVA glue as a fixed joint. The Bisco P is used in combination with the Clamex P when only every second connector needs to apply clamping force and an aligning element in between is sufficient for joint flushness as an invisible and cost-effective alternative. Another application is the use for test connections before a workpiece is joined with a Tenso P and adhesive. The clamping force of the Tenso P is very powerful and, depending on the angle of the workpieces, disassembly may require a lot of force. It is therefore advisable to check the precision of the machining with a Bisco P. The Biscos are then simply removed from the grooves, replaced by Tenso P, adhesive is then applied and the workpieces are joined together. The Bisco P-14 is used in combination with the Clamex P-14 or Tenso P-14, the Bisco P-10 with connectors of size P-10.
Applications:
In combination with the Clamex P or Tenso P in furniture construction
Applications similar to the Lamello original wooden biscuit
Size P10: butt joints from a material thickness of 12 mm, mitre connections from a material thickness of 18 mm
Size P14: butt joints from a material thickness of 15 mm, mitre connections from a material thickness of 18 mm
