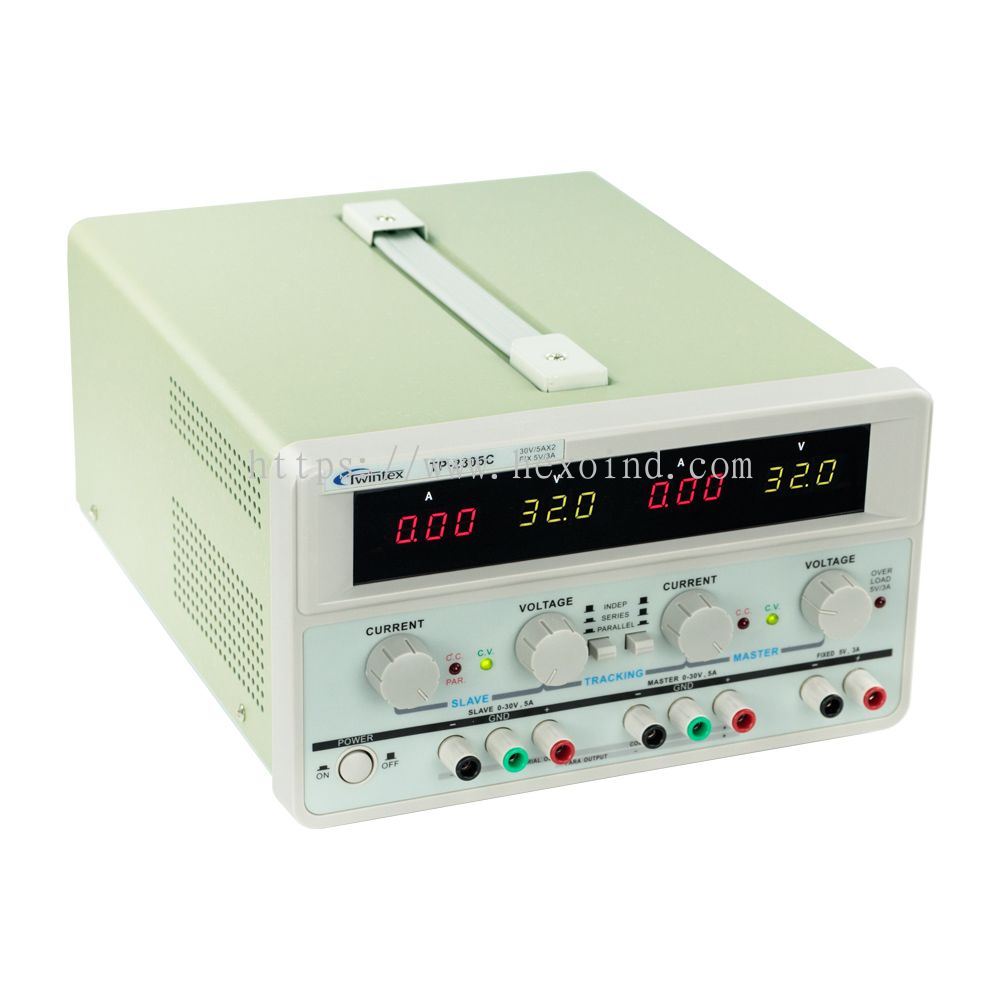

TP-2303C and TP-2305C are multi-channel linear DC power supplies. They are laboratory grade linear DC power supplies, featuring low ripple and noise, low temperature drift and fast recovery time.
The master channel and the slave channel can be used either as a single output 30V 3A or 30V 5A, or used in tracking series mode for output 60V 3A or 60V 5A, or used in tracking parallel mode for output 30V 6A or 30V 10A. The DC output starts once the dual power supply is powered on.
The multi-channel linear DC power supplies are ideal for laboratory tasks that require ultra-low noise, fast response time and precise voltage control.
Hot models
Selection Guide for Multiple Outputs Laboratory Linear DC Power Supplies
| Model | TP-2303E
TP-2305E |
TP-2303C
TP-2305C |
TP-2303K
TP-2305K |
TP-2303
TP-2305 |
TP-2303TK TP-2305TK |
| Output voltage | 0~30V x2 | 0~30V x2 | 0~30V x2 | 0~30V x2 | 0~30V x2 |
| Output current | 0~3A x2
0~5A x2 |
0~3A x2
0~5A x2 |
0~3A x2
0~5A x2 |
0~3A x2
0~5A x2 |
0~3A x2
0~5A x2 |
| Fixed output | 5V/3A | 5V/3A | 5V/3A | 5V/3A | |
| Preset V&I | √ | ||||
| Output ON/OFF | √ | √ | √ | ||
| Tracking operation | √ | √ | √ | √ | √ |
| Dimension (WxHxD) | 255x155x330mm | 255x155x370mm | |||
| Weight | 7kg/9kg | 7kg/9kg | 7kg/9kg | 8kg/10kg | 8kg/10kg |
