●Completely waterproof, dustproof, explosion-proof, and shockproof, it features intrinsically safe circuit design, anti-static properties, and electromagnetic interference resistance, passing national standards testing.
● IP66 protection rating, resistant to rain and short-term immersion. Built-in replaceable moisture and dust filters allow for use in high-humidity and high-dust environments without damaging the sensor or instrument.
●Built-in pump-type measurement with integrated moisture and dust filters. Optional professional accessories are available for monitoring in high-temperature, high-humidity, and high-dust environments. A special gas path design provides fast response and a sampling distance greater than 10 meters.
●A high-definition 2.5-inch color screen displays real-time concentration, alarms, time, temperature, humidity, storage, communication, printing, battery level, and charging status. The menu interface uses high-definition, realistic icons to display the menu functions.
●Large data storage capacity: 100,000 records standard, with larger capacities available on request. Optional SD card storage supports real-time, scheduled, or alarm concentration data and time storage. Data can be viewed and deleted locally. Data can also be uploaded to a computer via USB, Bluetooth, or RS232 for analysis, storage, and printing using host software. Remote wireless transmission is also supported (optional).
●Bluetooth communication interface (optional), USB interface, and RS232 interface for automatic identification. An optional external miniature wireless Bluetooth printer prints: company name, gas name, date and time, ambient temperature and humidity, concentration data, and test results (pass or fail).
●USB charging port for charging with a computer or power bank, compatible with mobile phone chargers. Overcharge, over-discharge, overvoltage, short-circuit, and overheating protection, a 5-level accurate battery display, and USB hot-swappable support allow the detector to operate normally while charging.
●Powered by a 2900mA high-capacity rechargeable polymer battery for long-term operation. Continuous operation
●Audible and visual alarms, vibration alarms, visual alarms, undervoltage alarms, fault alarms, and fall alarms (optional)
● Settable alarm levels, with selectable alarm modes: low alarm, high alarm, range alarm, and weighted average alarm
●High-precision temperature and humidity measurement (optional), with simultaneous sensor temperature compensation. The instrument operates within a -40°C to 70°C temperature range and can detect gases up to 1300°C (optional high-temperature sampling, cooling, and filtration handle or high-temperature, high-humidity pretreatment system).
●Real-time or scheduled detection (for small gas volumes). The pump can be shut down when not in use to extend the instrument's operating time.
●Simultaneously detects 1 to 6 gases, with freely switchable concentration units: PPM, mg/m³, Vol%, LEL%, PPHM, ppb, and mg/L
●Three switchable display modes: simultaneous display of six gas concentrations, large-font cycling display of single-channel gas concentrations, and real-time curves. Automatic or manual cycling between channels is selectable. Display of maximum and minimum values, gas names, and historical curves can be configured.
●Switchable Chinese and English interfaces, with the default Chinese interface and simplified Chinese or English operation prompts, making it easy for users of all ages to operate.
●Data recovery function allows for selective or complete data recovery. Concentration calibration errors are automatically detected and prevented, preventing errors caused by human error.
●Automatic zero tracking and multi-level concentration calibration ensure measurement linearity and accuracy. Complies with both national and local metrology standards.
●Features calibration logs, maintenance logs, troubleshooting solutions, sensor life expiration reminders, and reminders for the next concentration calibration.
Detected Gases: Composite gases (carbon monoxide (CO), oxygen (O2), combustible gases (CH4), carbon dioxide (CO2), ammonia (NH3), and nitrogen dioxide (NO2).
Optional: Simultaneously monitors the concentrations of 1-6 gases, as well as ambient temperature, humidity, pressure, and wind speed. Other functional parameters can be customized.
Detection Range: Customizable.
Detection Principle: Depends on the gas, range, site environment, and user needs.
Detection Method: Built-in pump suction, flow rate 500 ml/min.
Display: 2.5-inch 320x240 high-definition color screen, 8-button operation.
Detection Accuracy: ≤±1% (F.S.)
Linearity: ≤±1%
Repeatability Accuracy: ≤±1%
Alarm Modes: Fall Alarm, Audible and Visual Alarm, Vibration Alarm, Visual Alarm, Audible and Visual Alarm + Vibration + Visual Alarm, Shutdown Alarm
Response Time: T90 ≤ 20 seconds
Recovery Time: ≤ 30 seconds
Power Supply: DC3-5V
Sensor Lifespan: Electrochemical 2-3 years, Oxygen 2 or 6 years (optional), Infrared 5-10 years, Catalytic Combustion 3 years, Thermal Conductivity 5 years
Operating Environment: -40°C to +70°C; Relative Humidity ≤ 0-99% RH (Built-in filter allows operation in high humidity or dusty environments)
Sample Gas Temperature: -40°C to +70°C. Optional high-temperature sampling and cooling filter handle or high-temperature and high-humidity preconditioning system allows detection of flue gas concentrations up to 1300°C
Temperature Measurement: -40°C to +120°C (optional), Accuracy 0.3°C
Humidity Measurement: 0-100% RH (optional), Accuracy 2% RH
Battery Capacity: 3.7VDC, 2900mA Overcharge, over-discharge, overvoltage, overheating, and short-circuit protection are included.
Data Storage: Standard capacity of 100,000 records, supports 16GB or larger SD cards, supports local viewing, deletion, and data export. Free host computer communication software is available. Storage is disabled by default but can be enabled. The storage interval can be set arbitrarily.
Communication Interface: USB (charging and communication), optional RS232, Bluetooth, Bluetooth printer, and GPRS wireless transmission are supported.
Printer: Optional, external miniature wireless Bluetooth printer.
Interface Language: Configurable in Chinese or English, default Chinese interface.
Explosion-proof Type: Intrinsically Safe
Explosion-proof Marking: Exd ib IMb
Protection Rating: Greater than IP66
Dimensions: 195 × 77 × 46 mm (L × W × H)
Weight: 350g
Standard Accessories: Manual, Certificate of Compliance, Warranty Card, USB Charger (with Data Cable), Alligator Clips, High-Grade Aluminum Alloy Case

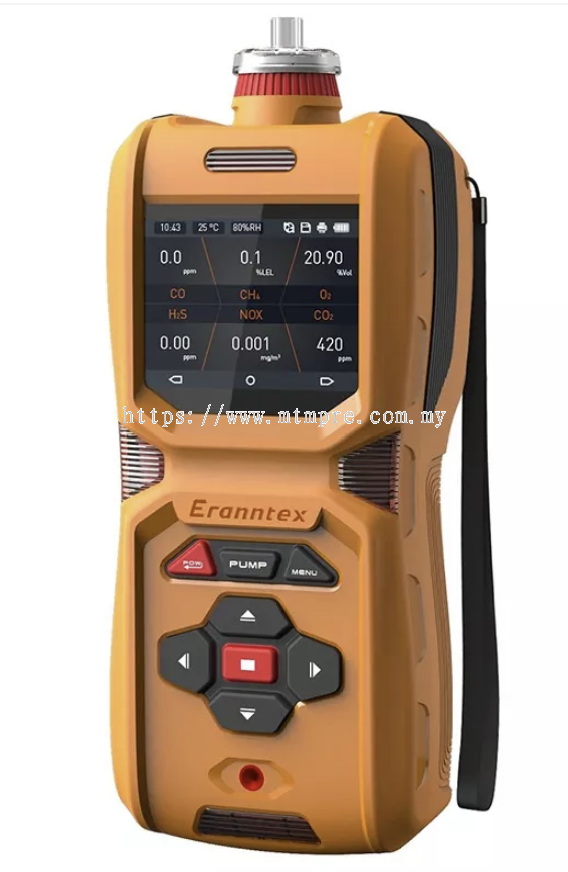

The Eranntex CD10 Portable Multi-Parameter Measuring Instrument optional accessories:1.2 m Retractable sampling handle (standard length 1 meter), external miniature wireless Bluetooth printer, high-temperature sampling and cooling filter handle, multiple humidity and dust filters, SD card storage, wireless data communication, and host computer communication software. Applications: Petroleum, chemical, mining, pharmaceutical, environmental protection, flue gas analysis, air treatment, and other applications requiring gas concentration monitoring.
