I. Original Manufacturer Information
Brand: MANN (Mann+Hummel)
Universal Interchange Part Numbers
Industry Standard: DB2074, OS1002, KB8634, LE9020X, 4930153131
Related Series: 4930152101, 4930155571 (Similar dimensions/structure; direct interchangeability may not apply to all models—please verify height)

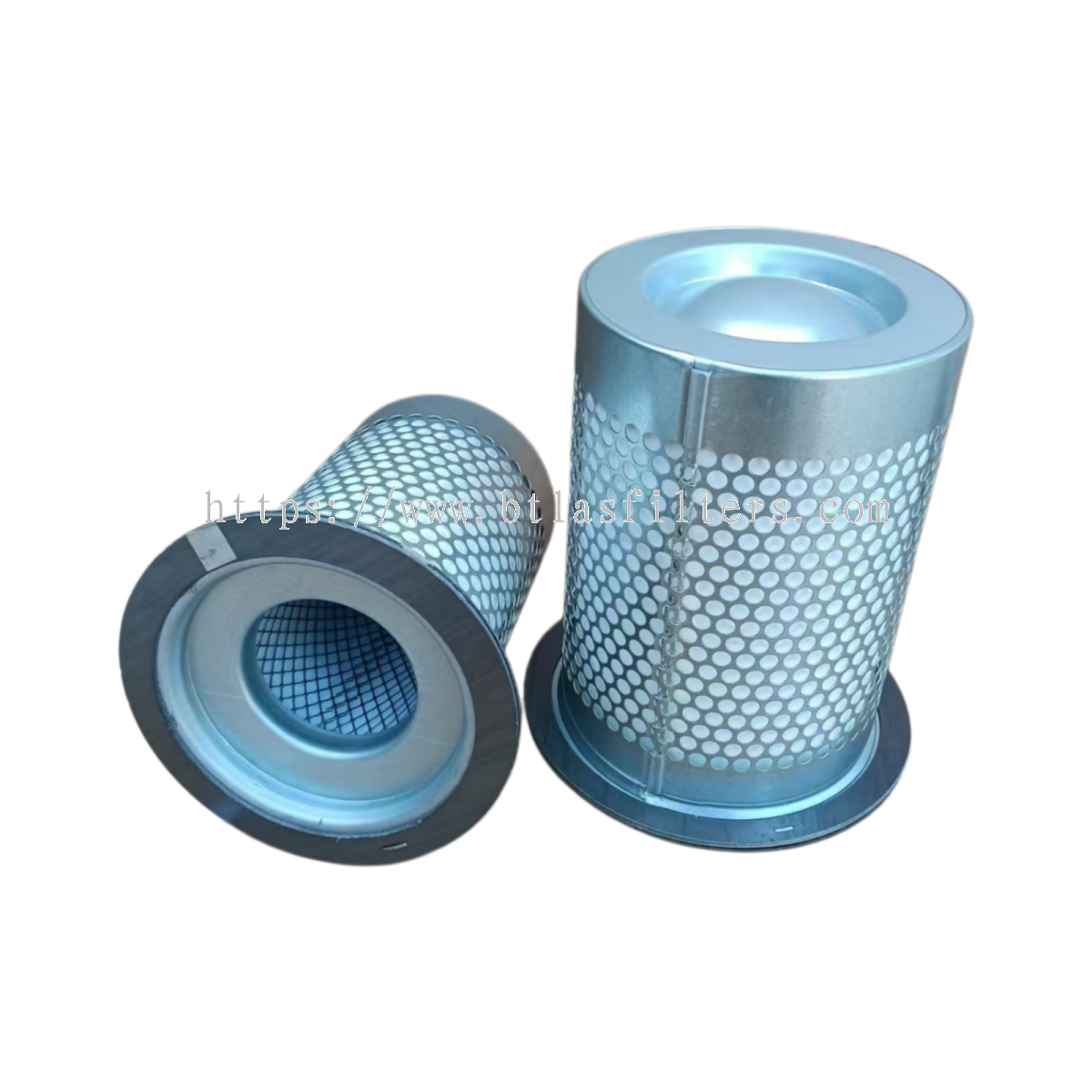

Product Type: Flanged, in-tank oil separator for rotary screw air compressors (internal oil-air separation)
II. Dimensions (mm)
Outer Diameter: 170; Inner Diameter: 135; Flange Thickness: 75; Total Height: 200
III. Compatible Models
22kW/30HP rotary screw air compressors (4.5 m³/min capacity models)
Domestic 22kW models including Hongwuhuan LG22, Xinlei, Jaguar, Kaishan, Xinda, etc.
Commonly paired air filter models: C14200 / C15300
IV. Core Technical Specifications
Filter Media: Dual-layer imported composite fiberglass
Separation Precision: 0.1μm; Residual oil content ≤3 ppm
Filtration Efficiency: 99.9%
Max. Temperature Tolerance: 120°C
Standard Replacement Interval: 4,000 hours (3,000 hours in high-dust environments)
Initial Pressure Drop: ≤0.02 MPa; Includes oil-resistant FKM (Viton) gasket
V. Maintenance Kit (for 22kW Units)
Oil Separator: 4930152131
Air Filter: C14200
Oil Filter: Spin-on type (2,000-hour replacement interval)
Comparison of Three MANN Oil Separator Models (4930152101 / 4930155571 / 4930152131)
Table
Model Total Height Compatible Power Key Differences
4930152131 200mm 22kW/30HP Short version; low flow rate (4.5 m³/min)
4930152101 230mm 37kW/50HP Standard version; universal fit for 6–8 m³/min
4930155571 230mm 37–55kW Extended filter layer; high flow rate for heavy-duty models
Replacement Indicators
Air compressor discharge contains oil; lubricating oil consumption increases significantly
Oil separator differential pressure alarm; insufficient discharge pressure
Service life exceeds 4,000 hours; immediate replacement recommended
