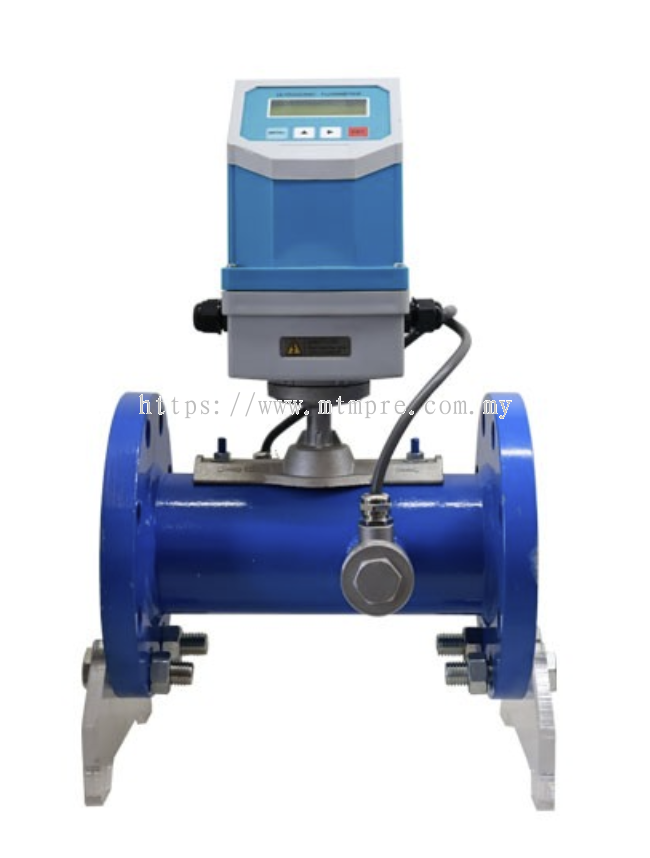

Ultrasonic flowmeters mainly calculate the flow rate of a fluid by measuring the time difference of ultrasonic waves traveling downstream and upstream in the fluid, and then determine the flow volume. It uses ultrasonic probes to emit ultrasonic signals into the fluid. Some of the ultrasonic signals travel downstream, and some travel upstream. Due to the flow of the fluid, the propagation speed of ultrasonic waves in the downstream and upstream directions will change. By measuring this time difference, the flow velocity of the fluid can be calculated according to a specific formula. The flow velocity multiplied by the cross-sectional area of the pipeline gives the flow value.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Nominal Diameter		DN15-DN400
Material		Nominal diameter
		Nominal diameter ≥DN50: measuring tube body: carbon steel (stainless steel at the sensor);
		Stainless steel 304, stainless steel 316 can be customized;
Implementation Standard		GB/T32224-2020
Measuring range	Temperature Range ()	Nominal diameter
	Temperature Difference Range (k)	0-85 (heat gauge starting temperature difference 0.2K)
	Minimum Pairing Temperature Error ()	±0.1
	Maximum Allowable Working Pressure Mpa	1.6MPa, optional 2.5MPa.
Accuracy Level		Level 2
Temperature Sensor Type		PT1000, DIN/EC751B
Protection Level		IP68
Working Power Supply		Powered by 3.6V lithium battery, one battery can work continuously for more than 6 years
		DC8-24V (requested when ordering)
		AC220V, 50HZ (optional power adapter, requested when ordering)
Working Environment		Environment Class A Class B/C/D
Power Consumption		Standard state <30UA, can work continuously for more than 20 years
Communication data	Optical Interface	Baud rate 9600bps, 4800bps, 2400bps, 600bps, 300bps optional, default is 9600bps S; Using GB/T26831 protocol
	RS485/M-BUS	Baud rate 9600bps, 4800bps, 2400bps, 600bps, 300bps optional, default is 9600bpS; Transmission distance ≤ 150m; GB/T26831 protocol, CJ/T188 protocol, ModbusRTU protocol optional, automatic identification of communication protocol,
	Wireless Communication	Narrowband Internet of Things (NB-lot)
		4G network communication
Local Display		Dual-line display includes 9-digit cumulative amount, 6-digit instantaneous flow, and supply and return water temperature, temperature difference. Accumulated effective running time.
Display Resolution		Heat 0.1kw.h, cumulative flow 0.0013: temperature 0.01; temperature difference 0.01K
Storage Temperature		.-25~55
Data Storage		Using ferroelectric storage parameters, store heat, cumulative flow and relative time by month; automatically store the cumulative flow of the first 31 days of the previous 32 months
Pressure Loss Level at Common Flow Rate		Nominal diameter
Temperature Sensor Signal Line Length (m)		Nominal diameter
Instrument Installation Position		Water supply (needed to be proposed during return water installation)
