FEATURES
Cutting Speed Comparison
HiKOKI's new Jig Saws, CJ90VST2 and CJ90VAST2 come with improvements in the plunger shaft and cutting feed (26mm instead of the conventional 20mm) to make cutting faster.
MDF 24mm thick, blade No.41, orbital position Ⅲ, maximum speed, 30N of thrust force
The new Jig Saws feature a mechanism which allows rigid and stable clamping of the saw blade, leading to smooth straight and curved cuts.
An easy to use, large lever allows quick and easy blade change without a tool.
Provides easier and more convenient handling compared to previous models.

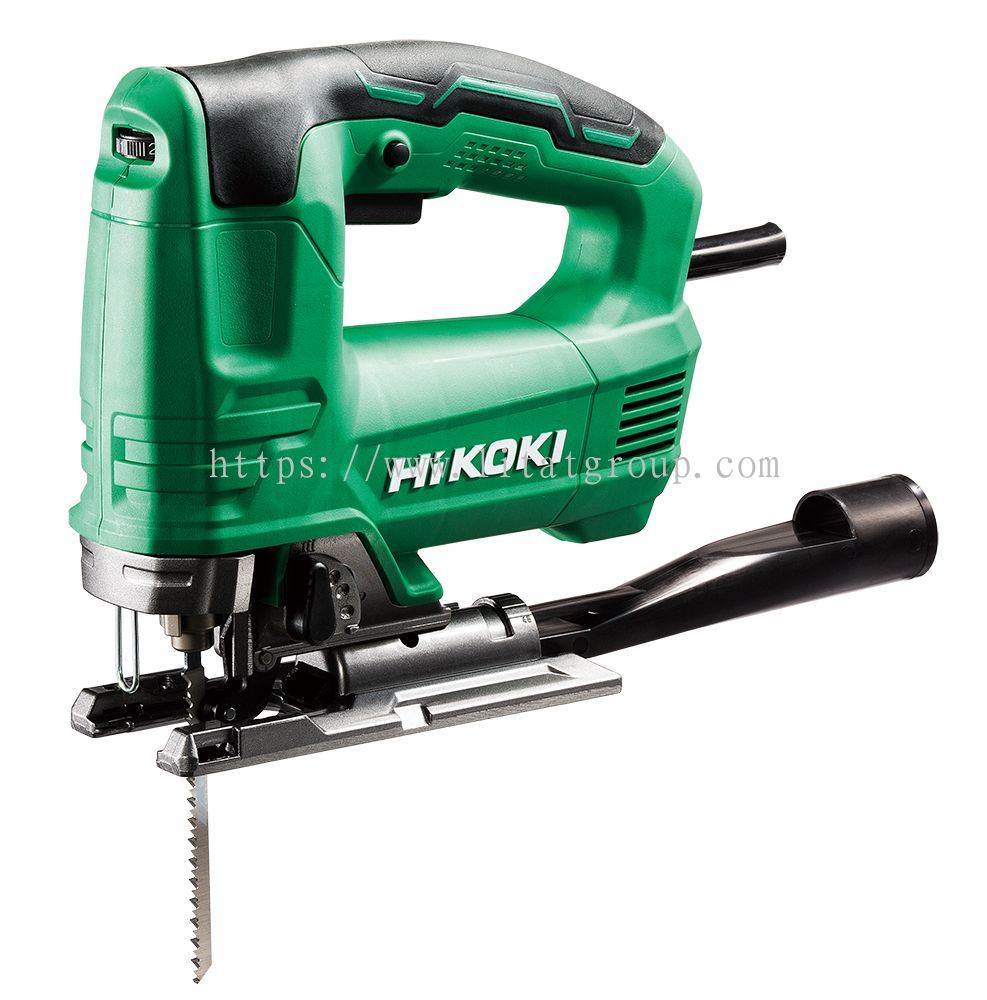

Image of CJ90VST2
Image of CJ90VAST2
Provides a clear view over the cutting line.
Allows the user to select the aggressiveness of the cut most suitable for the work material.
| Model | CJ90VST2 | CJ90VAST2 | |
|---|---|---|---|
| Capacity | Wood | 90mm | |
| Mild Steel | 10mm | ||
| Min. Cutting Radius | 25mm | ||
| Max Cutting Angle | 45° Right / Left | ||
| Power Input | 705W | ||
| Stroke | 26mm | ||
| No-Load Speed | 850 - 3,000/min | ||
| Overall Length | 215mm | 246mm | |
| Weight*1 | 2.2kg (without cord) | ||
| Vibration*2 | 7.0 m/s2 (particle board) | 9.0 m/s2 (particle board) | |
| Standard Accessories*3 | Blade No.41, Hex. Bar Wrench 4mm, Dust Collector (for Europe), Carrying Case | ||
