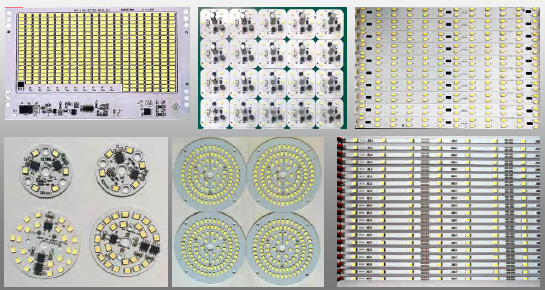

The highest productivity & precision pick-and-place machine for the same type of products
The optimal production capacity is 70,000 CPH.

Model :

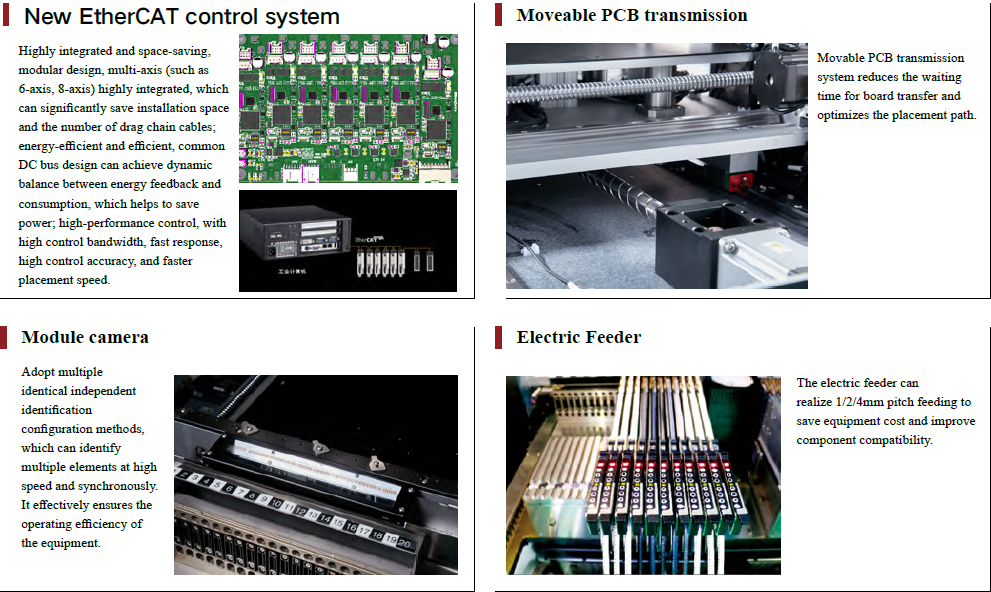

Features :

Advantages :

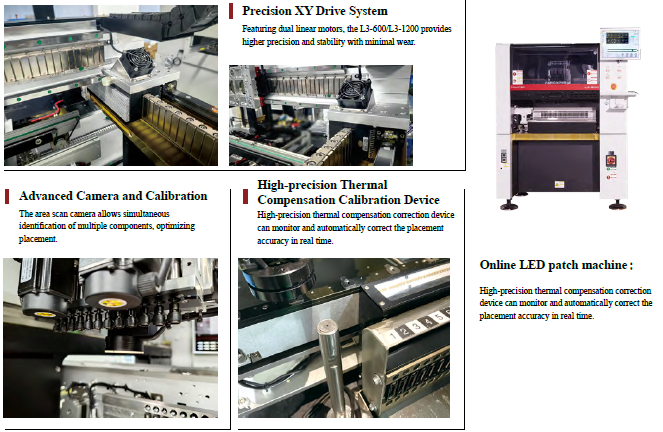

Precision XY Drive System
- Equipped with dual linear motors, the L3-600/L3-1200 delivers exceptional positioning accuracy and stability while reducing mechanical wear.
One-Piece Molded Base
- A rigid, integrated base structure improves mounting stability, ensuring reliable and precise component placement.
Area Camera
- Enables simultaneous recognition of multiple component types for enhanced efficiency and accuracy.
Automatic Calibration System
- Incorporates a thermal compensation correction mechanism to maintain accuracy under varying temperature conditions.
Component Placement Protection
- A nozzle buffering system safeguards components from damage during the placement process.

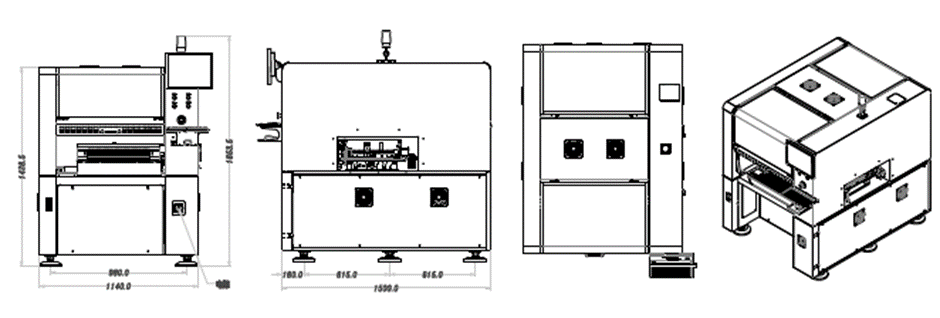

Dimension :

Specifications :

Model	Category	L3-600/L3-1200	CPM-L3T
Name	Equipment Name	Lamp beads specialplacement machine
Head	Mounting head model	1212B
	Nozzle spacing	12mm
	Number of nozzles	High-speed placementhead (12 heads)
Equipment size	Length x width x height	1140 × 1500 × 1450mm
Main components	Base	High-strength cast ironone-piece molding
	X-arm beam	High-strength aluminumstretch forming
Controller	X-axis	Flat linear motor + gratingruler
	Y-axis	Dual motor linear motor +grating ruler
	Z-axis	Closed loop stepping
	R-axis	Closed loop stepping
Mounting ability	Optimal placement speed(IPC-9850)	70000CPH
	Chip placement accuгасу (СРК)	0,10mm(XYZ),CPK ≥ 1.0
	Component size	Minimum size: 0201, maximum size: L12 × W12
	Component thickness	18mm
Weight	weight	About 1600KG	About 1680KG
Electrical specifications	Gas source	0.5MPa, 150L/min
	Power supply/Power	AC380/420/480V,2.5KW
PCB conveyor system	Transfer plate track	Mobile single-section track (with transfer function)
	PCB size	Minimum 50 × 50mm, Maximum 600 × 400mm, Maximum 1200 × 400mm
	PCB Thickness	0.4-9.5mm
	PCB fixing method	Pneumatic lifting platform, upper andlower clamps
Feeding	Number of feeders	37 stations (8mm)
MES system integration	MES Collection	Support TCP/IP communication protocol
	MES Upload	Support QR code / barcode recognition/binding upload MES
Optional accessories	Optional accessories	Offline loader / rearbutton panel
