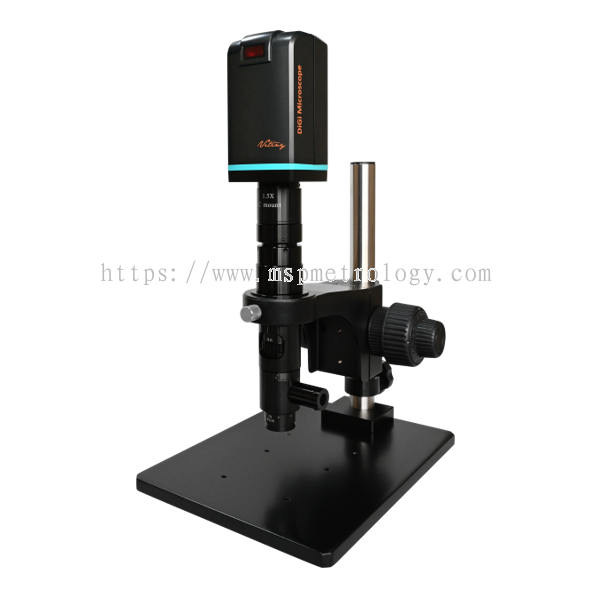

Digital Microscope with Special Zoom Lens
ViTiny UM20C-CSZ064C DiGi microscope directly connect to monitor, plug and play. There is build-in 5 objective lens and coaxial light.
The parfocal distance at WD 35 mm allows continuous zoom from FOV 3.02 mm to 0.475 mm and larger magnification. It is flexible to change the other C mount zoom lens and obtain different parfocal distance.
Vitiny again upgrade 1080P high image quality and delicate color. It controls focus, zoom in, white balance, exposure value and luminance through IR remote controller. Additionally, the function of DEFOG can enhance the contrast and mirror reverse image etc. It also connects to Windows PC, Android table, MAC PC via USB 3.0 cable. The diverse platform satisfy User’s demand.
With new UM Viewer computer software, expanding Crosshairs function, auto calibration system, auto locate the edge, subsidiary magnifier and so on. They simplify measure procedure.
The coaxial light is best solution to inspect the strong light reflective material like wafer, special materials, blade and glass, too.
The parfocal distance of ViTiny UM20C-CSZ064C at working distance 35 mm allows continuous zoom from FOV 3.02 mm to 0.475 mm and larger magnification. It is flexible to change the other C mount zoom lens and obtain different parfocal distance.
UM20C-CSZ064C also can be connect to Windows PC, Android table, MAC PC via USB 3.0 cable. This will make it easy for user to do measurement, inspection and at the same time capturing photo or video. Such many functions comes in such a user-friendly software.
With new UM Viewer computer software, expanding Crosshairs function, auto calibration system, auto locate the edge, subsidiary magnifier and so on. They simplify measure procedure.
.png)
.png "UMVIEWER2")
Metallographic Digital Microsope UM20C-CSZ064C General Features
| Item | Qty |
|---|---|
| Digital Microscope (UM20) | 1 |
| HDMI Cable | 1 |
| USB-C 3.0 Cable | 1 |
| Power Adaptor | 1 |
| S112 Stand | 1 |
| Stand assemble guide | 1 |
| White balance card | 1 |
| IR Remote Control | 1 |
| User’s Guide | 1 |
| C-CSZ064C Lens | 1 |
| Calibrator | 1 |
Contact us today to inquire about the UM20C-CSZ064C Digital Microscope with Special Zoom Lens and enhance your inspection capabilities.
