Main features
① 4800 baud rate, 1 start bit, 8 data bits, 1 stop bit, no parity. Data is sent in ASCII code (and text format), ending with a carriage return after each measurement data frame, continuously and actively transmitted. There is no frame header. The ASCII code for the measurement data consists of 10 bytes: a plus or minus sign at the beginning, followed by seven digits, a decimal point, and a carriage return. The number of bytes sent is fixed. A carriage return ASCII code ends at the end of each data frame. Transmission rate: 300ms/time
| weight |
80g |
| power supply |
Provided by PC |
| size |
80mm*50mm*32mm |
| Data input port |
The connector of the capacitive digital display measuring instrument |
| Data output port |

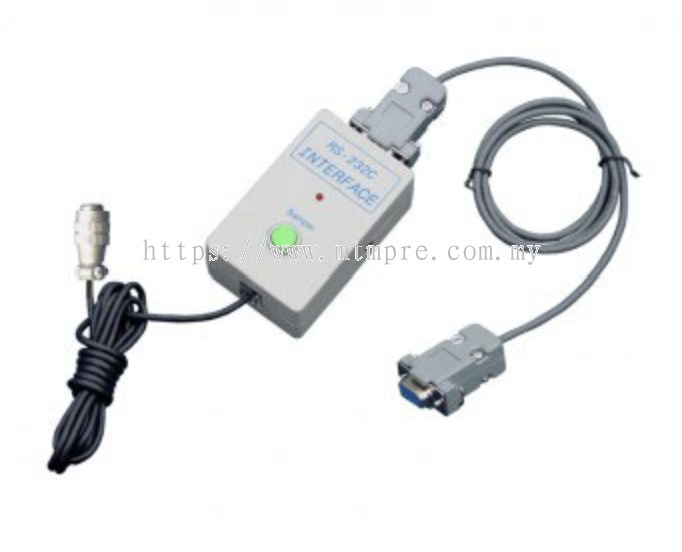

Serial port/RS232C port |
For a list of available specifications for this product category, click on the item number to view detailed product information.
| 711-201A |
80g |
80mm*50mm*32mm |
Provided by PC |
The connector of the capacitive digital display measuring instrument |
Serial port/RS232C port |
Inquiry |
-- |
Buy |
| 711-201B |
80g |
80mm*50mm*32mm |
Provided by PC |
The connector of the capacitive digital display measuring instrument |
USB port |
Inquiry |
-- |
Buy |
