Indoor Air Quality Monitor FS00802G is a multi-parameter air quality sensor that can detect and output real-time data on multiple air quality parameters, including PM2.5, PM10, PM1.0, TVOC, temperature, humidity, ozone, methane, ammonia, hydrogen sulfide, sulfur dioxide, and more. All gas detection is done using independent sensor probes. The types of gases detected can be freely selected for matching. With its compact design, small footprint, comprehensive functionality, stable performance, and high cost-effectiveness, indoor air quality meter supports output modes such as RS485 serial port, 4G, Bluetooth, WIFI, etc., greatly facilitating the development and application of air quality detection and IOT gas detection solutions.

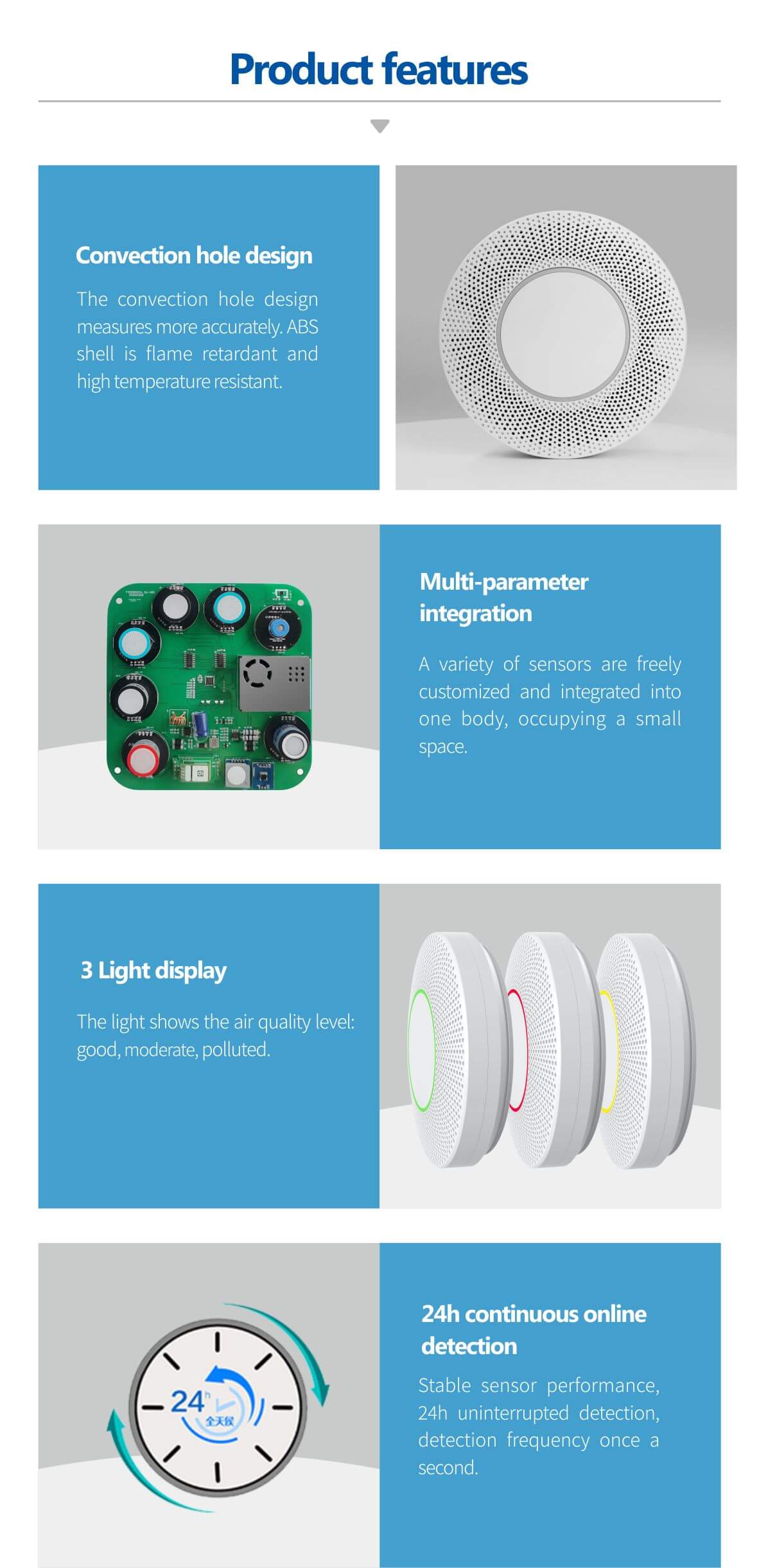

1. Can be equipped with a light strip that displays four colors corresponding to air quality levels: excellent good, moderate, and poor;
2. Support customized display screens that can show real-time detection concentration values;

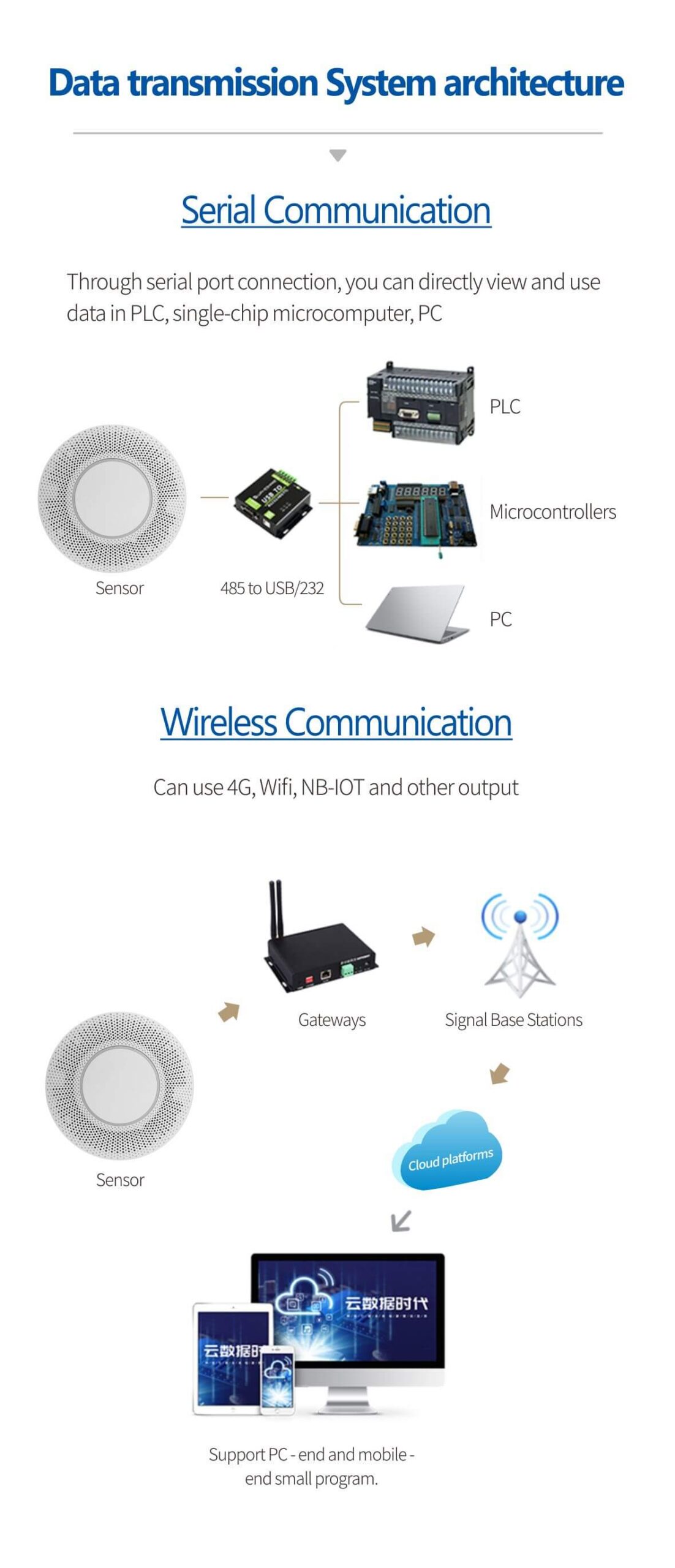

3. Support RS485, 4G, Lora, Bluetooth, WIFI, etc., convenient for various customization and secondary development services;

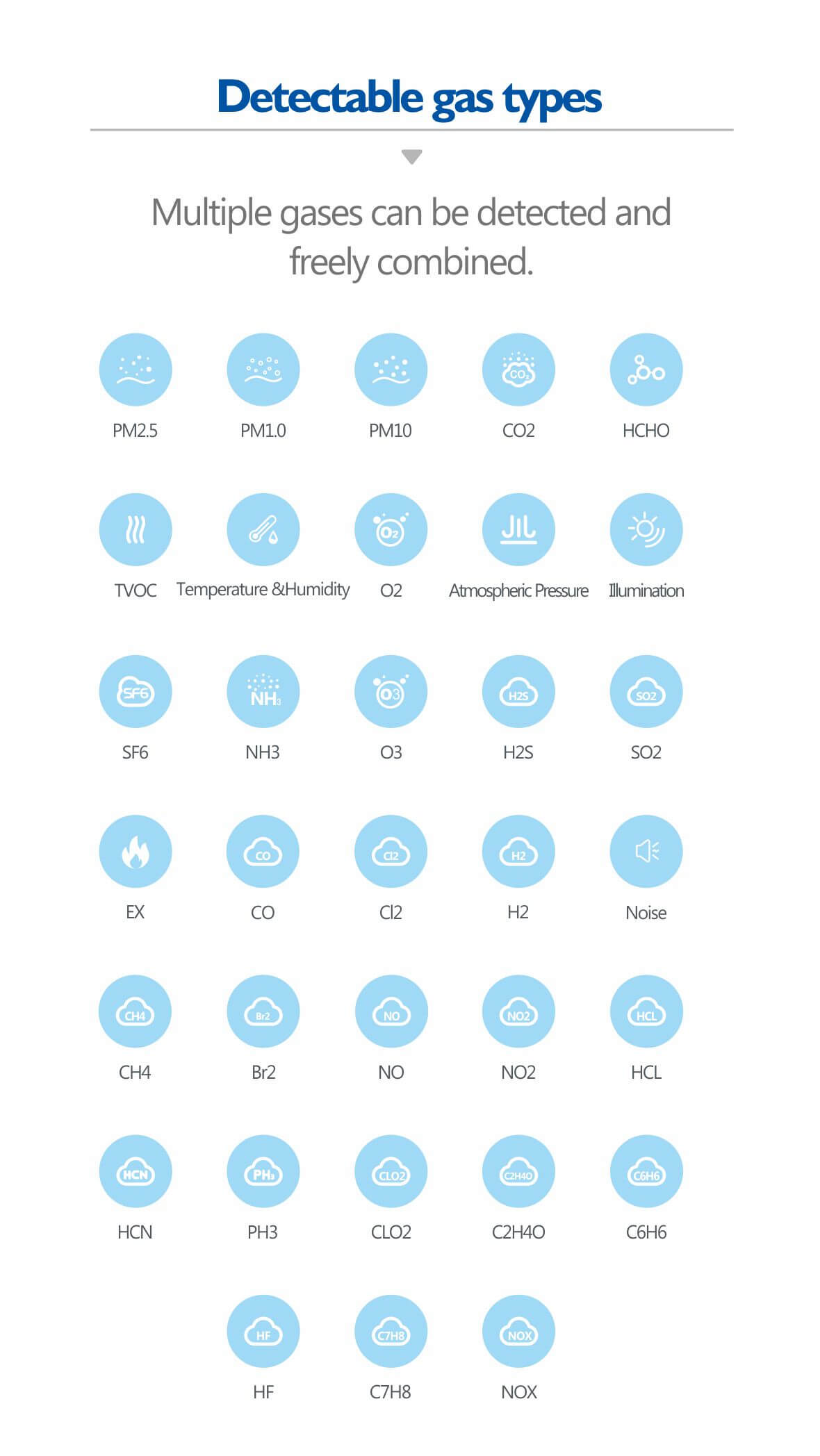

4. Detect a wide range of gases, including PM2.5, PM10, formaldehyde, CO2, TVOC, temperature and humidity, methane, ozone, illumination, etc.;
5. Support for the detection of special gases such as ammonia, hydrogen sulfide, sulfur dioxide, nitrogen dioxide, sulfur hexafluoride, oxygen, etc.;
6. The freedom to select and configure the type of gas detection, convenient for different customers and scenarios to use;
7. The sensor has a high sensitivity and can provide accurate data
|
Parameter |
Technical Specifications |
|
|
Operation Voltage |
DC 10V~30V (Standard 24V) |
|
|
Operation Current |
≤200mA |
|
|
Stable Time |
2min |
|
|
Detection Frequency |
Data is updated once per second (default) |
|
|
Output Methods |
Default |
Modbus-RS485 |
|
Optional |
Analog sginal、4G、WIFI、Bluetooth、Lora |
|
|
Product Material |
ABS Flame-retardant shell |
|
|

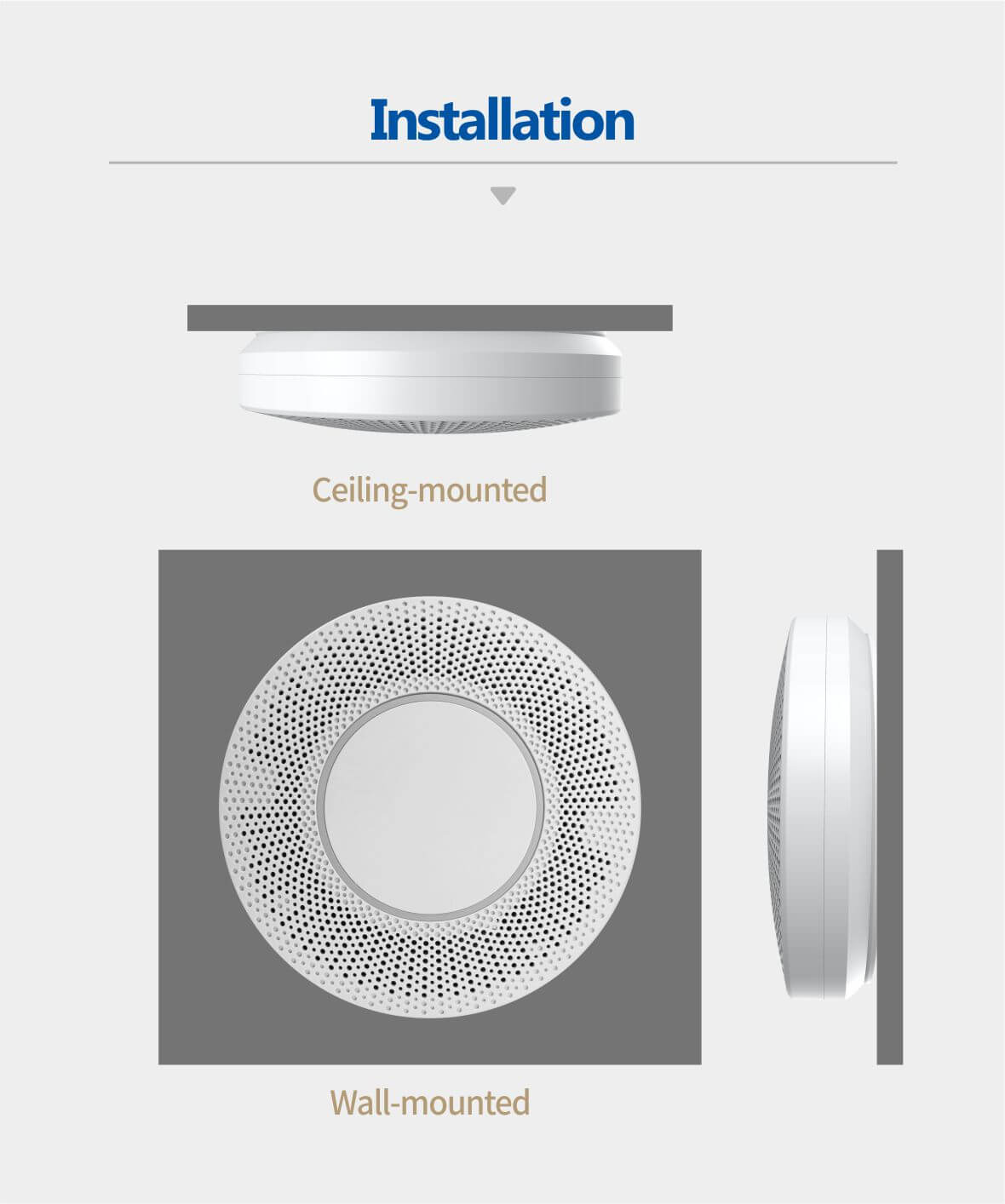

Install Methods |
Ceiling Mounted、Wall Mounted |
|
|
Reference Size |
144x144x41 mm |
|
|
Operation Temperature |
-10℃～50℃ |
|
|
Operation Humidity |
0～95%RH (Non-Condensation) |
|
|
Storage Temperature |
-20℃～60℃ |
|
|
Storage Humidity |
0～99%RH (Non-Condensation) |
|
| Type | Detection Gas | Detection Range | Solutions | Accuracy | Lifetime |
| (MAX Error) | (in the air) | ||||
| Regular Gas | Temperature | -40℃~100℃ | 0.01℃ | ≤ ±0.3℃ | 10Years |
| Humidity | 0~99%RH | 0.1%RH | ≤ ±3%RH | 10Years | |
| pm2.5 1.0 10 | 0~1000μg/m³ | 1μg/m³ | ≤ ±10% reading | ≥40000hours | |
| CO2 | 400~5000ppm | 1ppm | ≤ ±(50ppm+3%reading) | 10Years | |
| HCHO | 0~1500μg/m³ | 1μg/m³ | ≤ ±10%reading | 2Years | |
| TVOC | 0~5000μg/m³ | 1μg/m³ | ≤ ±10%reading | 10Years | |
| Non-gas | Illuminance | 0~65535Lux | 1Lux | ≤ ±7% @25℃ | 3Years |
| Noise | 30db~130db | 0.1db | ≤ ±1db | 3Years | |
| Air pressure | 30~110Kpa | 0.1Kpa | ≤ ±0.15Kpa | 3Years | |
| Presence of human body | 0 or 1 | 1 | ≤ ±2% | 3Years | |
| Special Gases | Alcohol | 0~500ppm | 1ppm | ≤ ±10%Reading | 2Years |
| O3 | 0~10ppm | 0.001ppm | ≤ ±2%Reading | 2Years | |
| CH4 | 0~100%LEL | 1%LEL | ≤ ±5%Reading | 2Years | |
| CO | 0~1000ppm | 0.1ppm | ≤ ±3%Reading | 3Years | |
| O2 | 0~25%Vol | 0.1%Vol | ≤ ±3%Reading | 2Years | |
| NH3 | 0~20ppm | 1ppm | ≤ ±5%Reading | 1Year | |
| H2S | 0~100ppm | 1ppm | ≤ ±5%Reading | 2Years | |
| CL2 | 0~10ppm | 0.1ppm | ≤ ±3%Reading | 1Year | |
| CLO2 | 0~20ppm | 0.1ppm | ≤ ±3%Reading | 2Years | |
| SO2 | 0~20ppm | 0.1ppm | ≤ ±3%Reading | 2Years | |
| H2 | 0~1000ppm | 1ppm | ≤ ±3%Reading | 1Year |
1.Internet of things equipment, air quality detection
2.Smart Building, Smart Community
3.Schools, hospitals, supermarkets, subways and other public places
4.Agricultural production, animal husbandry
5.Industrial workshops, production parks, etc.
