IMITOS Die-Cast Eyeball Casing GU10 Holder EB70
Upgrade your home lighting with the premium IMITOS EB70 Die-Cast Eyeball Casing.Engineered specifically for standard GU10 LED holders, this versatile, adjustable ceiling light fixture features a heavy-duty, rust-resistant die-cast aluminum body. With a total outer diameter of 94mm and a standard 80mm cutout size, it offers a seamless, minimalist recessed finish. Available in elegant matte White (EB70/WH) and modern matte Black (EB70/BK), it is the ultimate choice for Malaysian homeowners, interior designers, and contractors looking to create focused, architectural accent lighting in living rooms, bedrooms, and commercial spaces.
Full Description:
Looking for a reliable, stylish, and durable housing for your GU10 LED spotlight bulbs? The IMITOS Die-Cast Eyeball Casing with GU10 Holder (EB70 Series) is designed to deliver superior aesthetic appeal and functional longevity. Unlike cheap plastic or thin sheet metal alternatives that warp over time, this premium casing is built from heavy-duty die-cast metal, providing exceptional heat dissipation and a premium tactile finish.Whether you are remodeling your residential home in Kuala Lumpur, setting up a sleek retail showroom in Selangor, or specifying materials for a commercial project, the IMITOS EB70 delivers unmatched directional lighting flexibility.
Why Choose Die-Cast Aluminum Over Plastic?
When installing recessed downlights or spotlights, thermal management is key to ensuring your LED bulbs last. The die-cast aluminum construction of the IMITOS EB70 acts as a natural heatsink, drawing warmth away from your GU10 bulbs. Furthermore, the solid build prevents any light leakage from the chassis, ensuring that your light beams are clean, focused, and sharp. It will not yellow, crack, or rust, making it a permanent upgrade for your plaster ceilings.
Flexible Angle Adjustment
The integrated ''eyeball'' swivel mechanism allows you to tilt and rotate the light beam smoothly. This makes it perfect for accent lighting—allowing you to highlight architectural elements, artwork, feature walls, or direct task lighting onto kitchen islands and workspace desks.
Step-by-Step Installation Guide for Contractors & DIYers:
-
Preparation: Ensure the main power supply is switched off before starting the installation.
-
Ceiling CutOut: Use a standard 80mm hole saw to make a clean circular cut in your plaster ceiling.
-

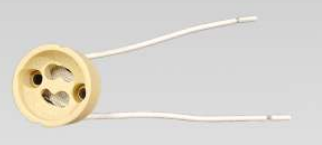

Wiring: Connect your main AC wiring to the provided heavy-duty GU10 lamp holder.
-
Bulb Fitting: Insert your preferred GU10 LED bulb into the inner ring of the EB70 casing and secure it to the GU10 holder.
-
Mounting: Compress the heavy-duty side spring clips upward and push the casing gently into the 80mm cutout until the outer 94mm rim sits flush against the ceiling surface.
-
Adjustment: Turn on the power and tilt the eyeball mechanism to your preferred angle to complete your custom lighting setup.

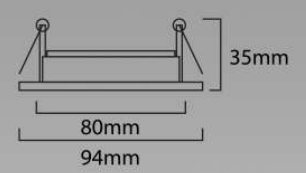

Specification:
- Model: EB70/WH EB70/BK
- Dia: 94mm
- Cut Out: 80mm
Q1: What cutout size is needed for the IMITOS EB70 eyeball casing?
A: The IMITOS EB70 eyeball casing requires a standard ceiling cutout diameter of 80mm.The overall face diameter of the casing is 94mm, which neatly hides the cutout edges for a flawless flush finish.
Q2: Does the IMITOS EB70 casing include a GU10 LED bulb?
A: No, the IMITOS EB70 package includes the premium die-cast eyeball casing and the GU10 lamp holder base only. You will need to purchase your choice of GU10 LED bulb (Daylight, Cool White, or Warm White) separately.
Q3: What is the difference between EB70/WH and EB70/BK?
A: The difference is entirely aesthetic.
EB70/WH features a Matte White finish which blends perfectly into standard white plaster ceilings for a minimalist look.
EB70/BK features a Matte Black finish, ideal for industrial, modern, or dark-themed interior aesthetics.
Q4: Why should I choose die-cast eyeball casings over standard plastic ones?
A: Die-cast metal eyeball casings offer superior durability, effective heat dissipation,and zero light leakage.
Unlike plastic fittings, die-cast aluminum will not discolor, warp, or crack over time due to the heat generated by the LED bulbs.
Q5: Can I adjust the light direction with the IMITOS EB70 holder?
A: Yes, the IMITOS EB70 features an adjustable swivel eyeball design
that allows you to easily tilt the inner ring. This lets you direct the spotlight beam precisely onto walls, artwork, or specific task areas.
Q6: Can I use an MR16 bulb with this IMITOS GU10 casing?
A: You can use an MR16-shaped bulb
only if it features a GU10 twist-and-lock base. Standard MR16 bulbs with 2-pin needle bases (GU5.3) require a transformer and a different holder, whereas this fixture includes a 240V GU10 holder
for direct mains connection.
Q7: Is the IMITOS EB70 eyeball fitting suitable for bathroom use?
A: The IMITOS EB70 is rated for indoor use and is ideal for living rooms, hallways, kitchens, and bedrooms. If used in a bathroom, it should be placed in dry zones with good ventilation, away from direct water splashes or heavy steam.
Q8: How do I change the bulb in an IMITOS EB70 casing once installed?
A: You do not need to pull the entire casing out of the ceiling. Simply twist or pull the adjustable inner ring of the casing out slightly, twist the GU10 bulb counter-clockwise
to release it from the holder, swap the bulb, and push the ring back into place.
Q9: Where can I buy original IMITOS lighting fixtures in Malaysia?
A: Original IMITOS products are available nationwide through authorized hardware stores, specialized lighting shops in Selangor/KL, and verified e-commerce flagship storefronts on Shopee Malaysia and Lazada.
Q10: Do IMITOS eyeball casings rust over time in Malaysian weather?
A: No, because the IMITOS EB70 is constructed from high-grade di-cast aluminium finished with a powder-coated protective layer, it is highly resistant to humidity, corrosion, and rust, making it perfect for the Malaysian climate.
