MULTI FUNCTION INSTALLATION TESTER

KEW 6516BT

A lot of Testing Power in the hands of Electrical Installation Professionals!

• DISPLAY
  Color LCD 3.5 inches dot matrix.

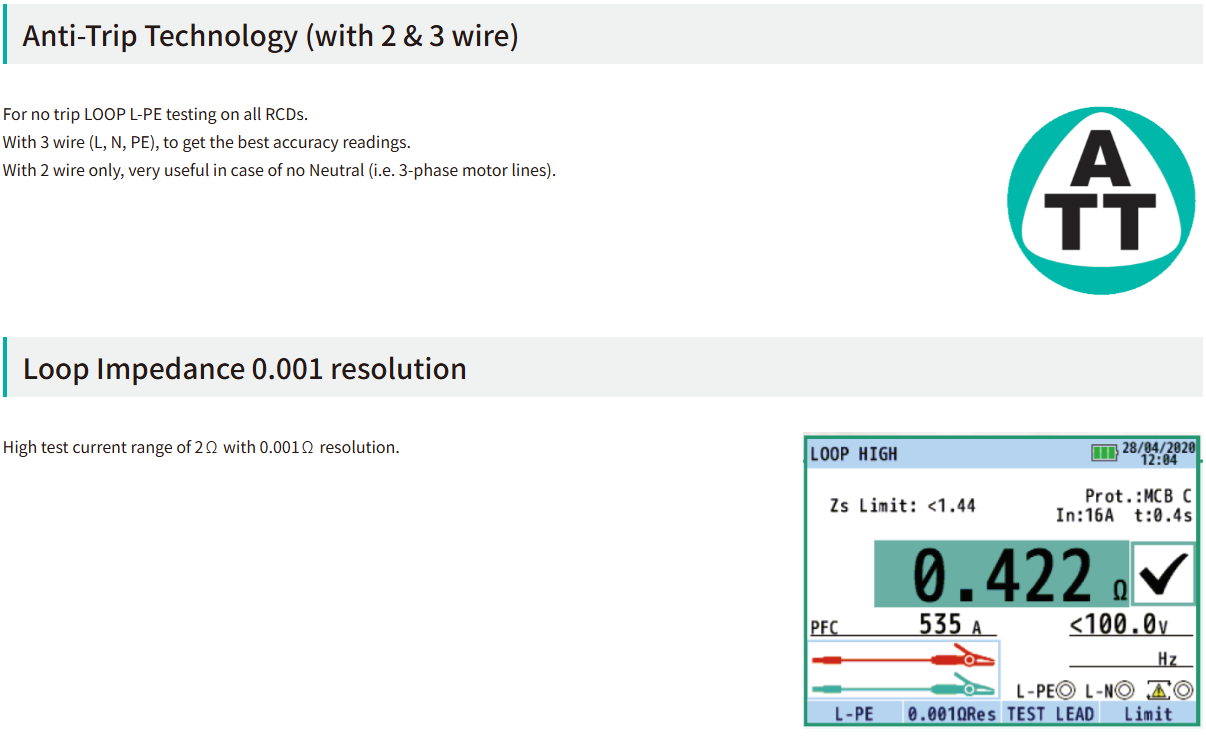

• ATT
  Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
  With 2 wire only, very useful in case of no Neutral (i.e. 3-phase motor lines).
• LOOP
  0鸋igh test current range of 2Ω with 0.001Ω resolution.
  0鸝s Limit compares the values required by Electrical Installations Standard with measured results.

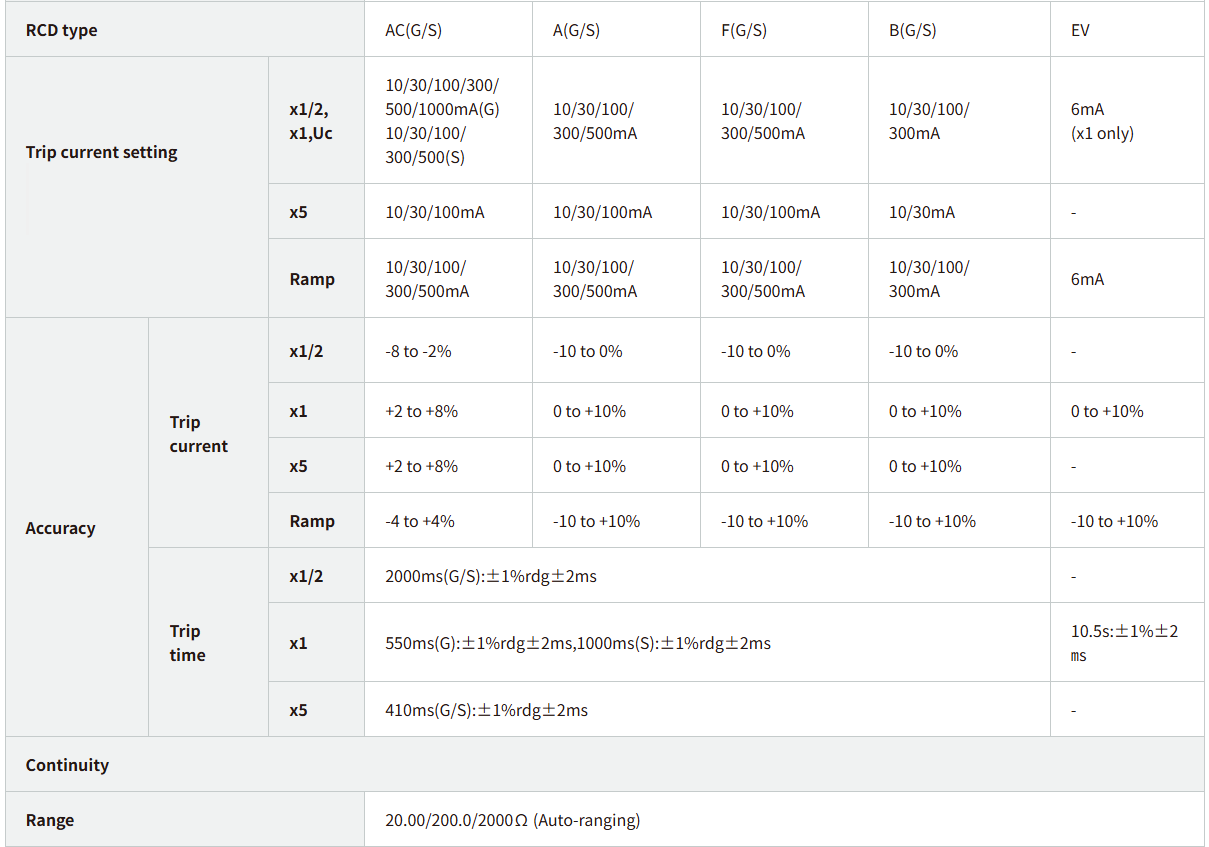

• RCD
  0鸗ype AC, A, F, B(General & Selective), EV and Variable RCDs.
  0鸖ingle and Auto test, Ramp test and Contact voltage.
• EARTH
  Earth resistance test 2 and 3 wires with all accessories included.
• INSULATION
  Resistance test 100, 250, 500 & 1000V with auto discharge voltage.

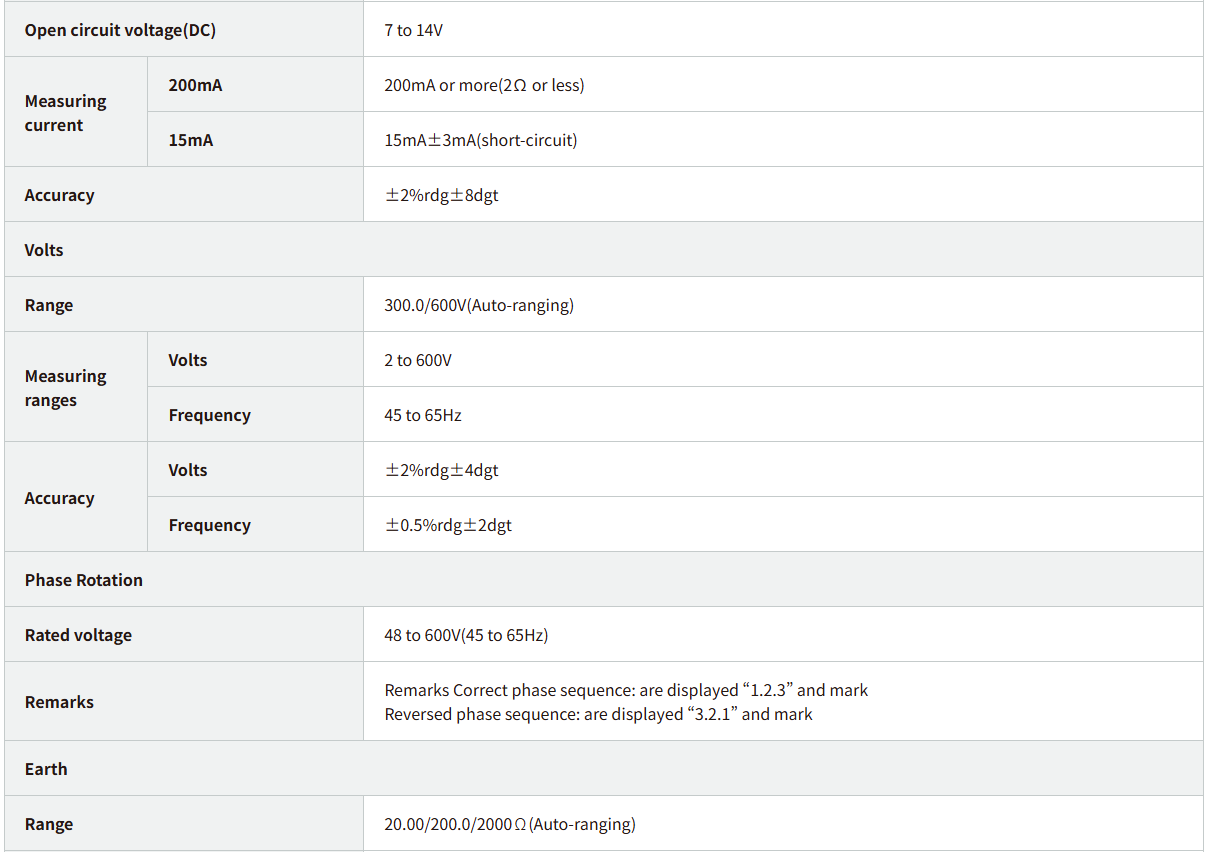

• CONTINUITY
  Continuity test at 200mA or 15mA with selectable buzzer for fast judgment.
• PHASE ROTATION
  On 3-phase lines with clear indication of the sequence on the display.
• VOLTS
  TRMS Voltage measurements 2 to 600V, Mains Frequency.

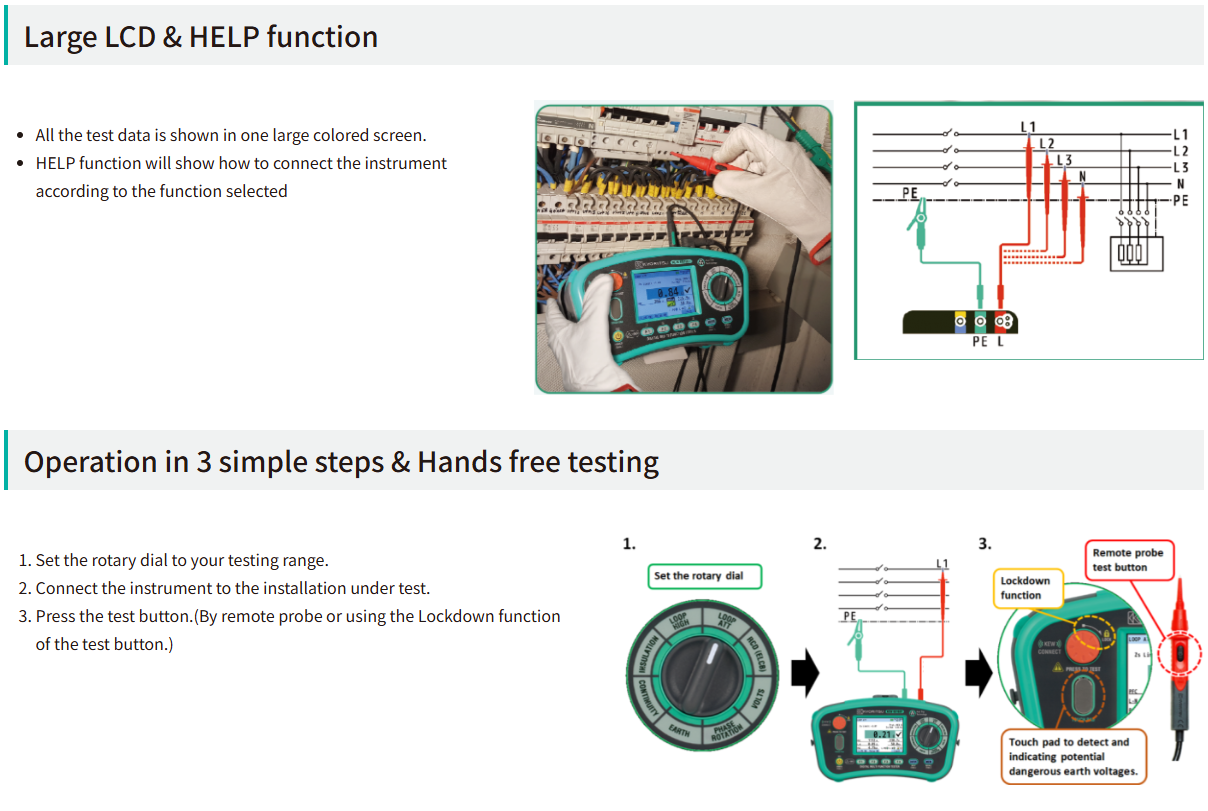

• HELP
  Display shows how to connect the instrument according to the function selected.
• SPD
  Surge Protection Device test, for SPD that uses varistor.

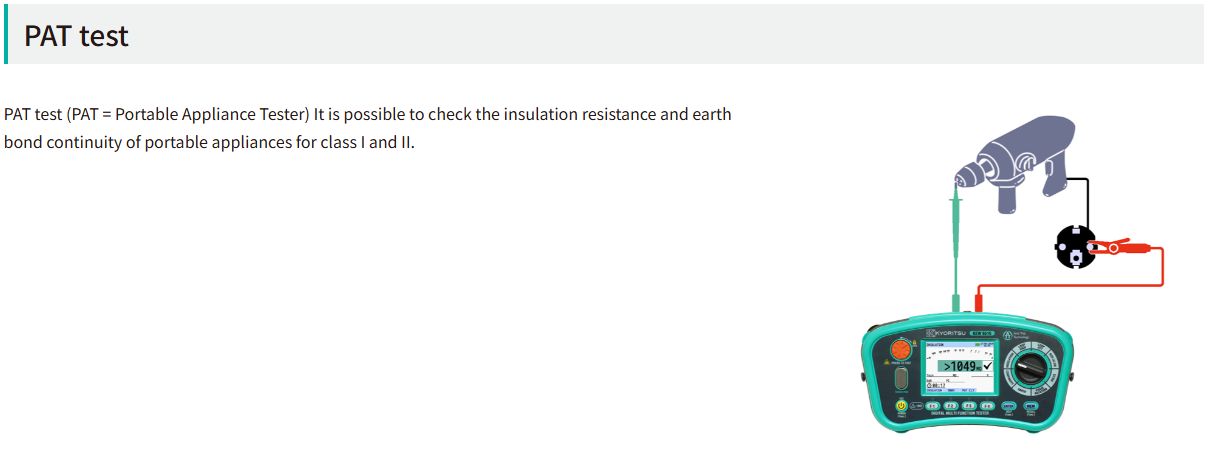

• PAT
  Portable Appliance Tester function, for Insulation and Protective conductor resistance test

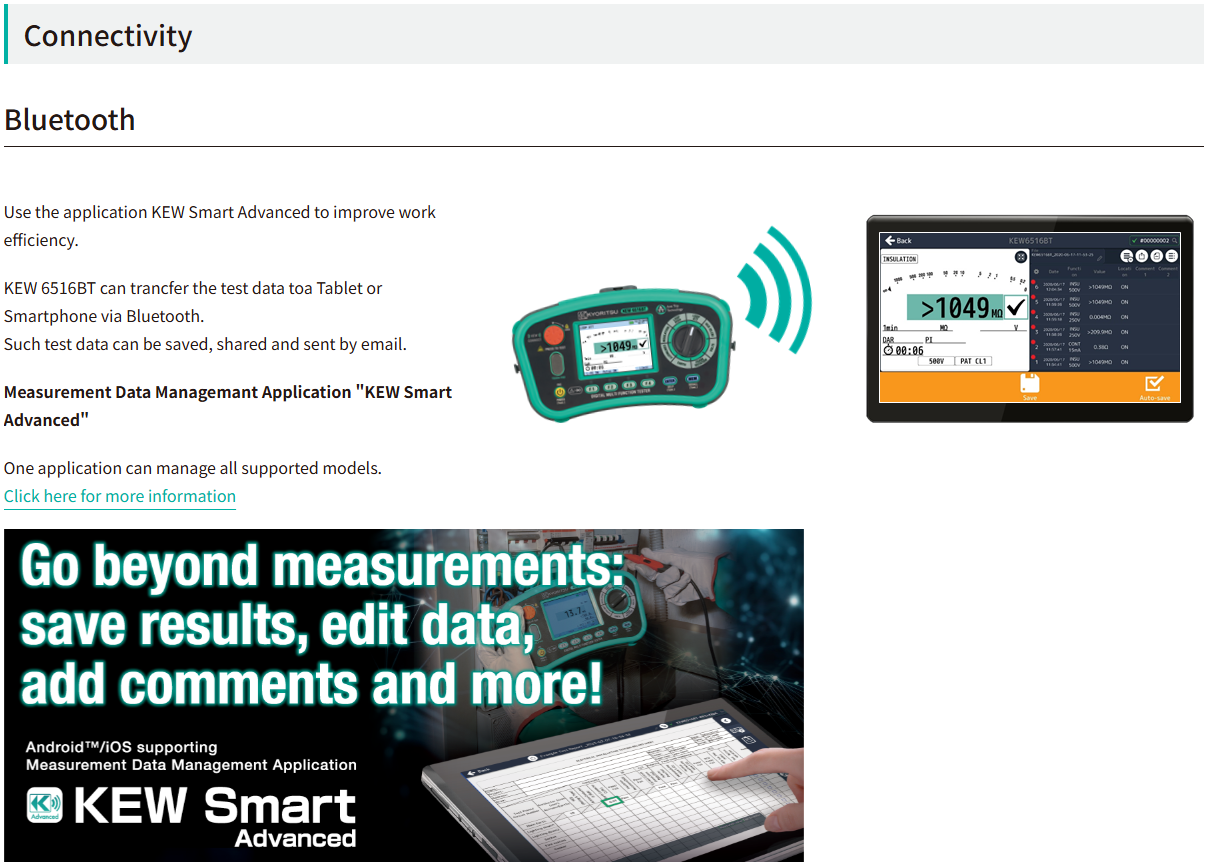

• Bluetooth
  Communication by "KEW CONNECT"

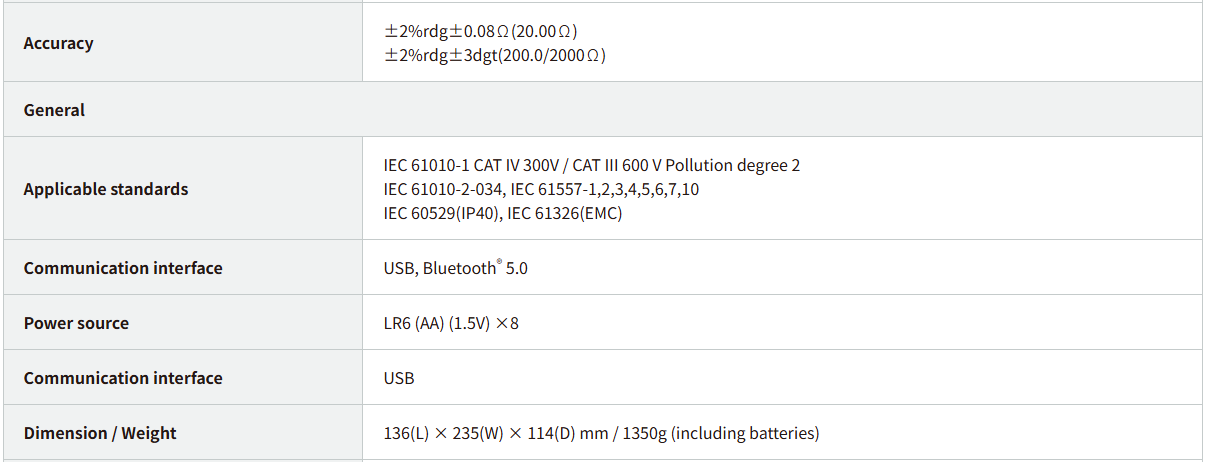

• SAFETY
  IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V, IEC 61557-1,2,3,4,5,6,7,10.
