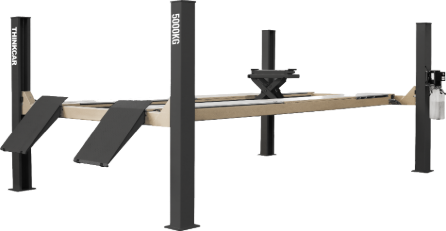

Four Post Alignment Lift TVL450
Four Post Alignment Lift TVL450



Four Post Alignment Lift TVL450

OBD Automotive Technology Sdn Bhd flag
分类: ThinkCar Lift 当前有货
欲了解更多详情，请游览我们的官方网站 obdtech.com.my
游览官方网站 联络我们
详情

features
  • ·Pneumatic synchronous unlocking.
  • ·Pillar design, easy to install.
  • ·The platform is made of bent steel plates and the beams are made of square tubes.
  • ·The cylinder adopts front fixation style to eliminate the risk of cylinder breakage.
  • ·The platform spacing is adjustable to adapt to vehicles with different tire spacing.
  • ·Cylinder 100% pressure holding test.

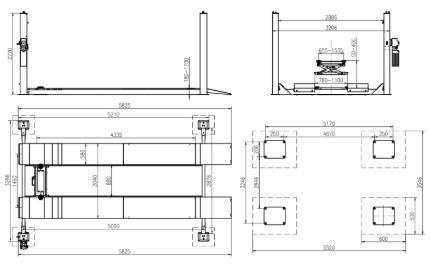

Specifications
Rated load
5000kg
Lifting height
1700mm+400mm
Initial height
180 mm
Lifting time
≤50s
Lowering time
≥40s
Platform length
5000mm
Platform width
500mm
Power
2.2kw
Voltage
220V/380V
Hydraulic Oil
10L( Winter: N32# Summer: N46# )
Net weight
1500kg
Working Temperature
5-40℃
Air Pressure
0.6-0.8Mpa
