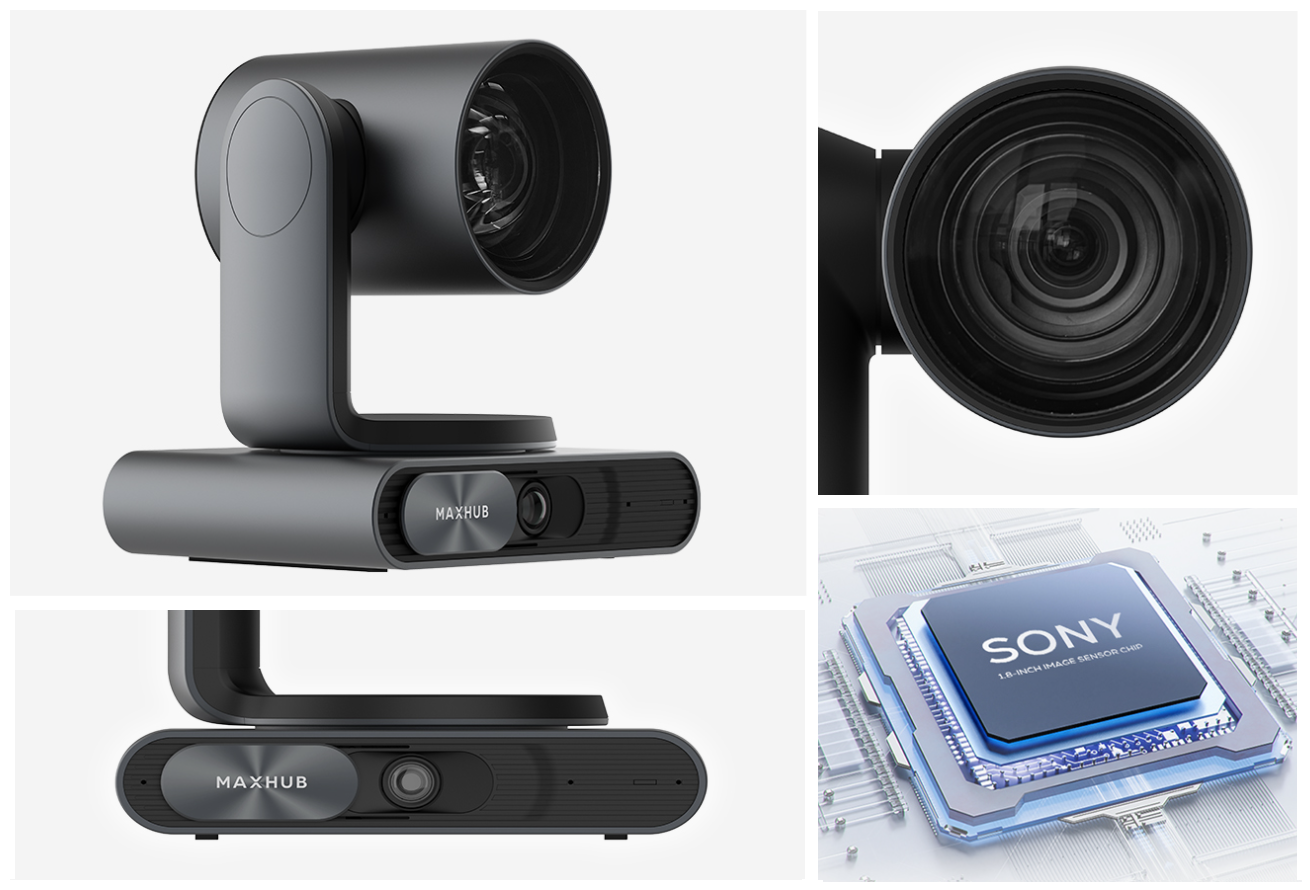

Experience superior visual quality and expanded coverage with a dual-camera system. Sony 1.8-inch, 8MP image sensors capture detailed 4K video from multiple viewpoints.
Ensure every participant is seen and heard. An F1.8 aperture lens excels in various lighting conditions, while 12x optical and 16x digital zoom capabilities allow you to frame participants perfectly. The 90° DFOV provides comprehensive coverage of even the largest meeting spaces.
.png)
LASTING ELEGANCE

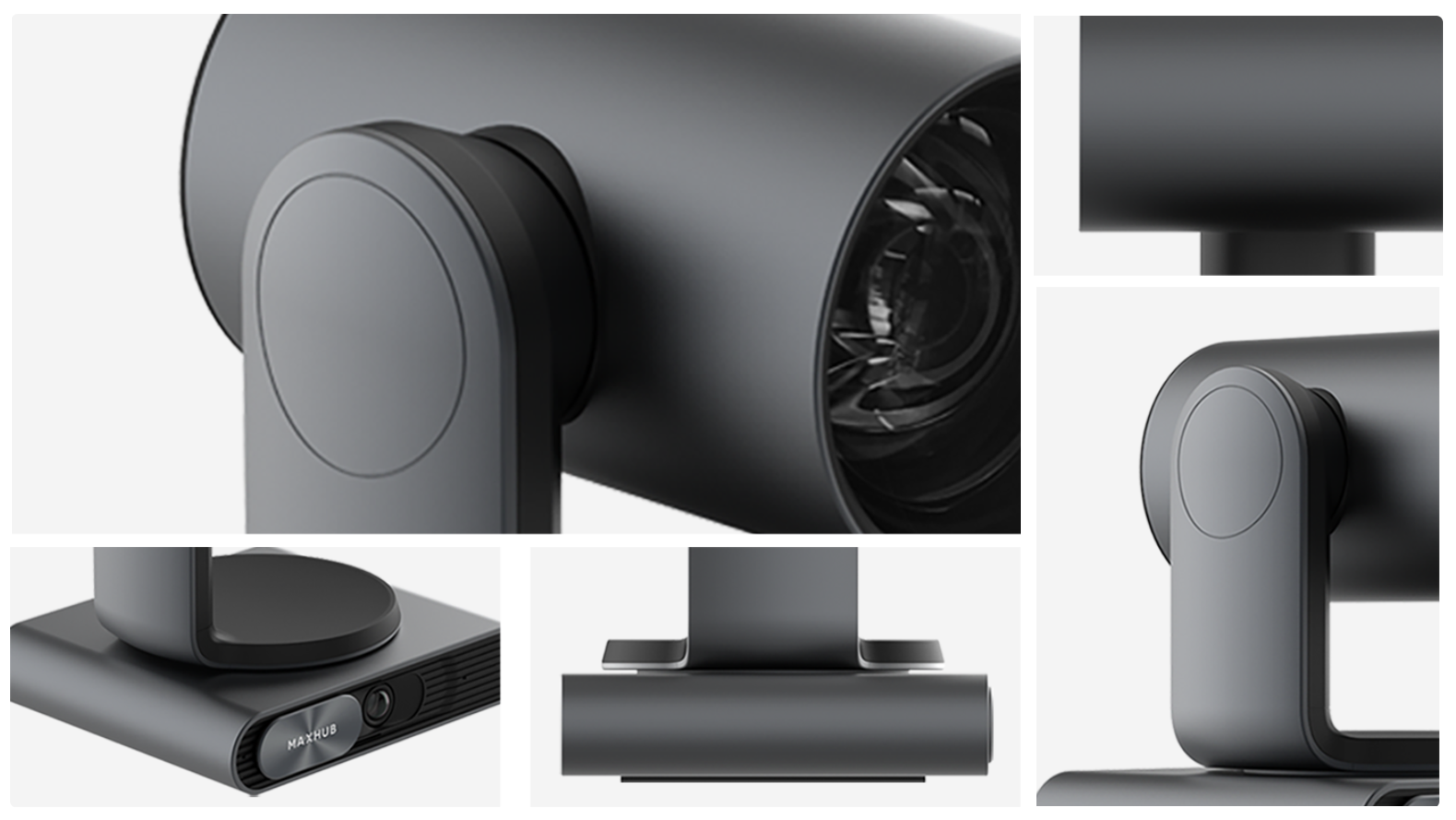

Invest in a design that endures. The ultra-high strength aluminum alloy casing and anodized metal surface ensure lasting performance and a timeless aesthetic.
.png)
.png)
.png)
| Model | UC P30 |
| Dual Camera | |
| PTZ Camera | |
| Image Sensor | Sony 4K, 8.42M pixel |
| Video Outputs (USB 3.0) | H.264/MJPEG up to 2160p@30fps, YUV up to 1080p@30fps |
| Video Outputs (USB 2.0) | H.264/MJPEG up to 1080p@30fps |
| Video Outputs (HDMI) | H.264/MJPEG up to 2160@30fps |
| Video Outputs (IP) | H.264/MJPEG up to 2160p@30fps (First Stream) H.264/MJEPG up to 720p@30fps (Second Stream) |
| Optical Zoom | 12x |
| Digital Zoom | 3x |
| Field of View (FOV) | DFOV 90°/ HFOV 80°/ VFOV 49.2° |
| Lens Focal Length | 4.8 mm ~ 57.8 mm |
| Lens Aperture (F#) | 1.8 ~ 3.6 |
| Motorized Pan & Tilt | Pan: ±170°, Tilt: ±90°; |
| Preset Number | 10 Presets via IR Remote, 128 Presets via RS232 |
| Image Flip and Image Mirror | Yes |
| Panoramic Camera | |
| 8MP, Sony Sensor | |
| 120° DFOV | |
| Manual Tilt: ± 10° | |
| Electric Privacy Cover | |
| Camera LED Indicator | |
| AI Features | |
| Auto Framing | |
| Speaker Tracking | |
| Presenter Tracking | |
| IO Ports | |
| USB 3.0 Type-C ×1 (Device) | |
| USB 2.0 Type-A ×1 (Host) | |
| Mic in (3.5 mm) ×1 | |
| HDMI 1.4 out ×1 | |

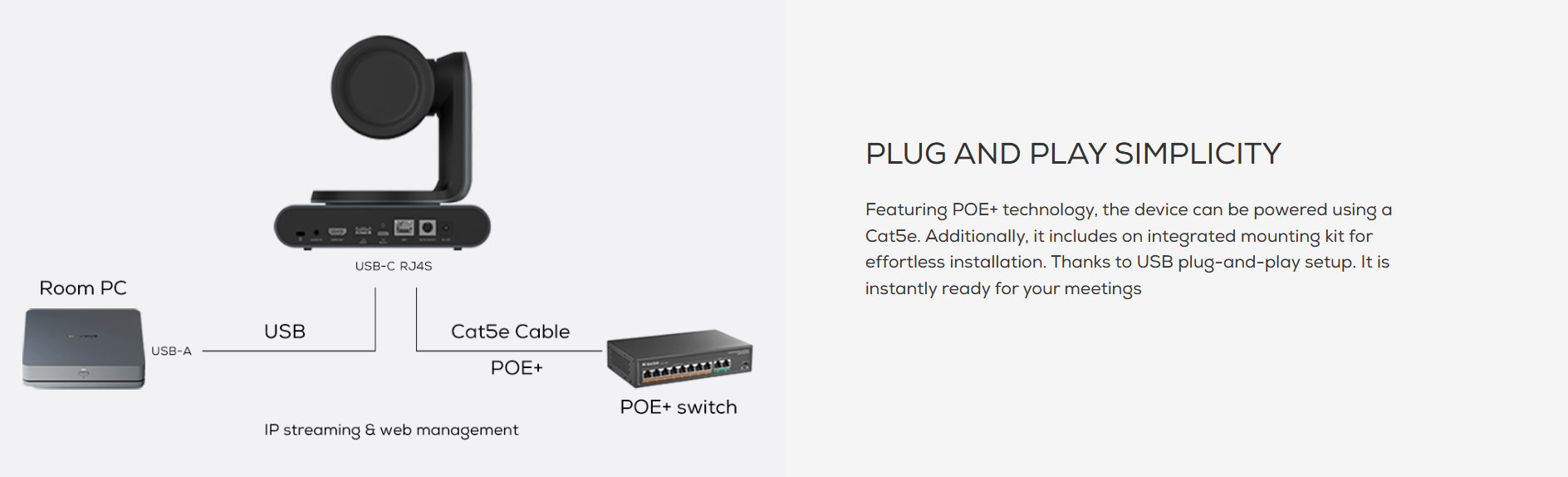

| RJ45 ×1 (IP Stream, POE+) | |
| RS232 ×1 (VISCA/Pelco-D/Pelco-P Protocol) | |
| Security Lock Slot ×1 |
| What’s in the Package | |
| UC P30 × 1 | |
| USB Cable C-A (2m / 6.56 ft) × 1 | |
| Power Adapter × 1 | |
| Remote Control × 1 | |
| Mounting Kits × 1 | |
| Quick Start Guide × 1 | |
| Power | |
| Power Supply | DC in 12V, 2A / POE+ in (Max 25W) |
| Power Consumption | ≤ 22W |
| Mechanical Specifications | |
| Product Dimension | 181 × 151.5 × 178.4 mm / 7.13 × 5.96 × 7.02 inches |
| Package Dimension (1 unit) | 295 × 245 × 243 mm / 11.61 × 9.65 × 9.57 inches |
| Package Dimension (4 units) | 610 × 510 × 265 mm / 24.02 × 20.08 × 10.43 inches |
| Net Weight (1 unit) | 2.3 kg / 5.34 lbs |
| Gross Weight (1 unit) | 3.95 kg / 8.71 lbs |
| Gross Weight (4 units) | 16.9 kg / 37.26 lbs |
