H6

Intelligent Thermal Camera

With a built-in self-developed high-sensitivity IR detector with a maximum resolution of 640x480, a 13MP visible light camera, and 5 focusing modes, Hammer Series, the high-precision thermal camera designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic "hammer" shape. 30Hz infrared frame rate for fast and accurate access to more temperature data of moving targets, far beyond the same level of products.

640x480IR Resolution

13MP Visible Light

30Hz Frame Rate

OTA Upgrade

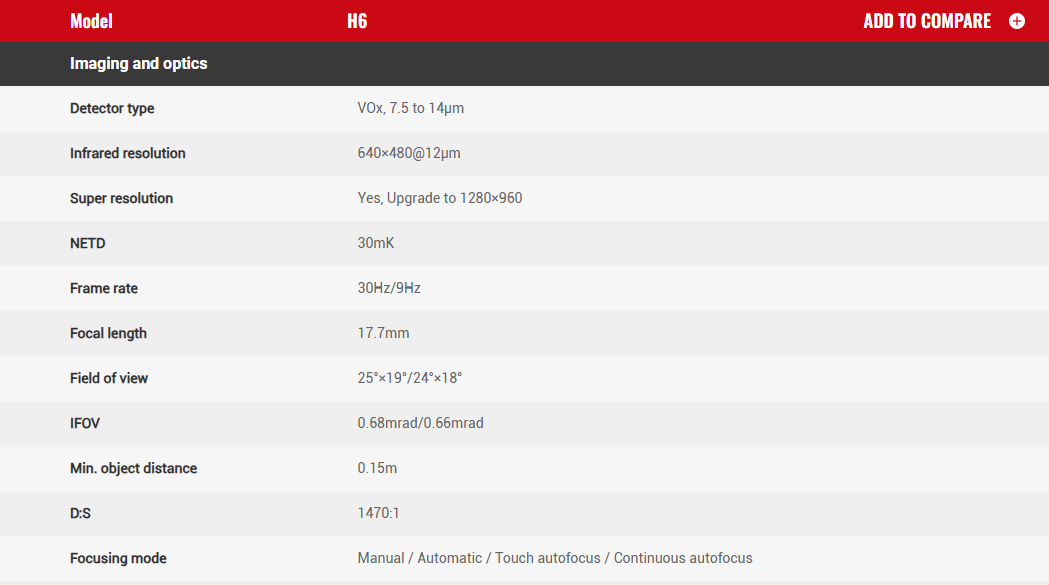

Up to 640x480 IR Resolution:

A new generation of self-developed infrared focal plane detectors with a resolution of 640x480 coupled with super-resolution reconstruction for high-quality imaging


30Hz IRGD Frame Rate:

IR video of raw data with frame rates up to 30Hz, ready to screenshot for temperature analysis

Wide-range Measurement with Rich Application Scenarios:

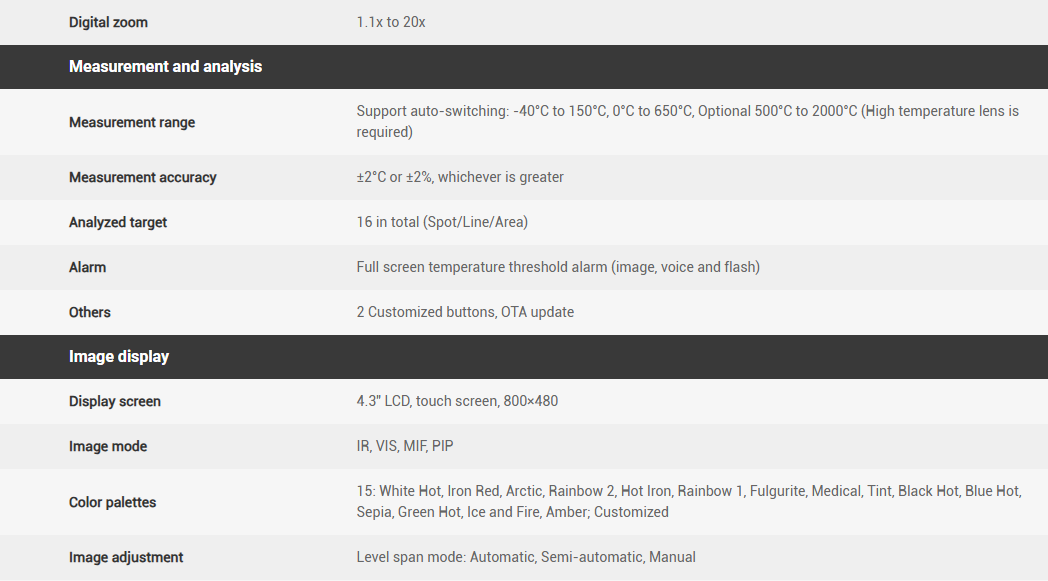

Temperature measurement range -40℃ to 650℃, up to 2000℃ (with high-temperature lens)


Real-time Presentation of Intuitive Temperature Data:

IR, VL, MIF, and PIP modes provide a visual view of the target temperature data and automatically present the highest, lowest, and central temperatures of the full screen


OTA Upgrade for the Latest System Version:

The device can be upgraded by connecting to the network.
