Features
| Specification | ||
| Line Pull | : | 1,2000lbs/5,442kgs |
| Motor | : | DC 12V/24V series wound |
| Gearing | : | Three stage planetary |
| Brake | : | 100% full load double cone braking |
| Gear Ratio | : | 216:1 |
| Synthetic Rope | : | 3/8'×90' (9.5mm×27m) |
| Dimensions | : | 24.4' L×6.29' D×11.51' H (620mm L×160mm D×292.5mm H) |
| Drum Diameter | : | 63.5mm×229mm |
| Line Pull | |||
| Layer of Wire Rope | Max Line Pull | ||
| 1 | 1,2000lbs/5,442kgs | ||
| 2 | 9,789lbs/4,445kgs | ||
| 3 | 8,273lbs/3,760kgs | ||
| 4 | 7,199lbs/3,255kgs | ||
| Line Speed and Amp Draw (1st Layer of Rope On The Drum) | |||
| Load | Line Speed | AMP Draw(12V) | AMP Draw（24V） |
| No Load | 29.3FPM/9MPM | 60 | 60 |
| 4,000lbs/1,814kgs | 11.5FPM/3.5MPM | 150 | 121 |
| 8,000lbs/3,650kgs | 8.6FPM/2.6MPM | 240 | 190 |
| 1,2000lbs/5,442kgs | 5.9FPM/1.8MPM | 320 | 252 |
| Standard Accessories | ||
| Controller | : | - |
| Control Unit | : | - |
| Mounting Hardware | : | - |
| Handsaver Strap | : | - |
| Synthetic Rope | : | - |
| Hawse Fairlead | : | - |
| Hook | : | - |
| Package | ||
| Winch weight | : | 36.7kgs/80.9lbs |
| Gross Weight | : | 38kgs/83.8lbs |
| Box Dimension | : | 655×193×445mm(25.8〃x7.6〃x17.5〃) |

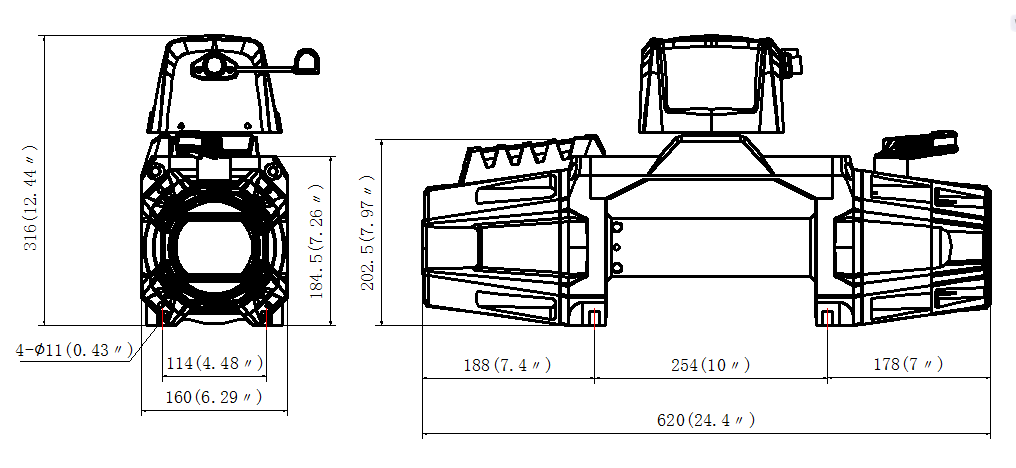

| Dimensions (mm) |
.png)
