Features
| Specification | ||
| Line Pull | : | 9,500lbs/4,309kgs |
| Motor | : | DC 12V/24V series wound |
| Gearing | : | Three stage planetary |
| Gear Ratio | : | 156:1 |
| Brake | : | 100% full load double cone braking |
| Synthetic Rope | : | 11/31'×90' (9mm×27m) |
| Dimensions | : | 24.4' L×6.29' D×11.51' H (620mm L×160mm D×292.5〃mm H) |
| Drum Diameter | : | 63.5mm×229mm |
| Line Pull | |||
| Layer of Wire Rope | Max Line Pull | ||
| 1 | 95,00lbs/4,309kgs | ||
| 2 | 7,800lbs/3,500kgs | ||
| 3 | 6,550lbs/2,977kgs | ||
| 4 | 5,700lbs/2,578kgs | ||
| Line Speed and Amp Draw (1st Layer of Rope On The Drum) | |||
| Load | Line Speed | AMP Draw(12V) | AMP Dram（24V） |
| No Load | 64FPM/19.5MPM | 60 | 40 |
| 2,000lbs/907kgs | 15.4FPM/4.7MPM | 150 | 106 |
| 6,000lbs/2,722kgs | 11.2FPM/3.4MPM | 246 | 187 |
| 9,500lbs/4,309kgs | 8.2FPM/2.5MPM | 370 | 259 |
| Standard Accessories | ||
| Controller | : | - |
| Control Unit | : | - |
| Mounting Hardware | : | - |
| Handsaver Strap | : | - |
| Synthetic Rope | : | - |
| Hawse Fairlead | : | - |
| Hook | : | - |
| Package | ||
| Winch weight | : | 36kgs/79.4lbs |
| Gross Weight | : | 37.3kgs/82.2lbs |
| Box Dimension | : | 655×193×445mm(25.8〃x7.6〃x17.5〃) |

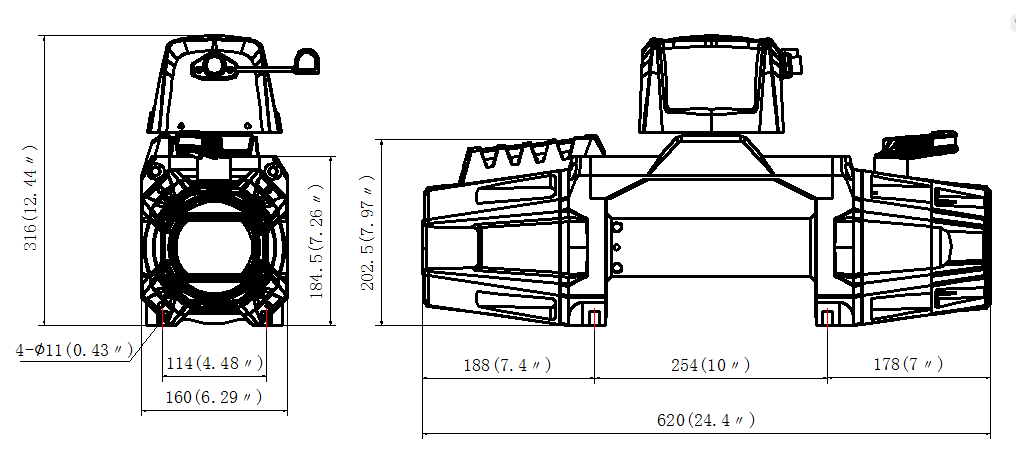

| Dimensions (mm) |
