The Pistol Type Smart Screwdrivers: 马来西亚的首选 SEM Equipment Sdn. Bhd.

详情

Model :

PWEB3511
PWEB4411

Features :

Equipped with the TAMAGAWA permanent magnet synchronous servo motor.
Ergonomic handle design,more comfortable to hold servo motor
Front high brightness lighting ven in the poor light environment can be perfectly assembled
Professional concept of modular,combined design scheme
Leading servo motor drive and precision deceleration mechanism
Blowing/ suction optional automatic feeding mode
Structure, convenient and flexible installation way,suitable variety of applications
Safe and reliable special cable and connector configuration
Multi-style,multi-series,multi-specification product selection
Beautiful and compact appearance

Components :

Advantages :

Wide Torque Range Coverage:
- Supports a wide torque range, meeting the tightening requirements of various applications. (From securing small screws in 3C industries like mobile phones to meeting high torque demands in heavy industries like automotive manufacturing) Custom screw driver bits can be made according to customer needs.
One-stop service
- Comprehensive package available: includes intelligent screw machine, controller, software, screws, air blowers, screw feeders, balancing arms, and screwdriver bits.
Digital control (torque, speed, Angle)
- With unique control technology, torque values during the Tightening process can be set and managed, enabling complete digital control of torque, speed, and angle.
High precision
- The torque precision can reach ±5%, fulfilling product quality control requirements.
Superior Performance
- Advanced Japanese motor technology, offering higher dynamic response and more stable torque output, meeting the needs of various extreme tightening processes.
Long Lifespan
- Features permanent magnet synchronous servo motors, ensuring a longer product lifespan.
Data Monitoring and Traceability
- Collects data and handles anomalies, displaying real-time tightening data including torque, angle, and time, and reducing rework costs due to issues like floating or stripped screws.
Storage Data
- Local storage capacity for 600 days of tightening records, with support for data upload.
Multiple Tightening Strategies
- Capable of implementing various strategies like single-step, two-step, self-tapping, and mating surface, customizable for various applications.
Industrial Design
- Egonomically designed to increase comfort.
Visual Display
- Equipped with a screen and LED lights for better visibility and faster problem identification, improving problem-solving efficiency.
Multiple Communication Methods
- Supports RS232, RS485, Ethernet, and other communication protocols, enabling high-speed Ethernet access and strong expandability

Applications :

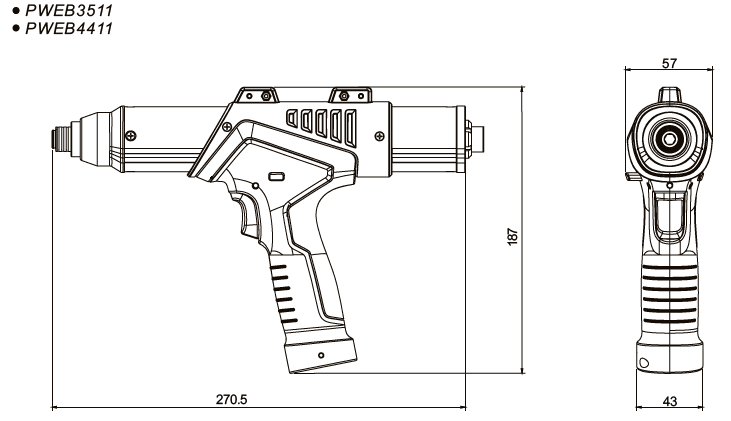

Dimension :

Specifcations :

Motor Power	Model	Adapted controller	Tool cable	Torque output range			Speed range (rpm)	Adapted outer diameter of screw (mm)	Applicable batch head	weight (kg)
Motor Power	Model	Adapted controller	Tool cable	kgf.cm	N.m	lbf.in	Speed range (rpm)	Adapted outer diameter of screw (mm)	Applicable batch head	weight (kg)
DC90W	PWEB3511	ACT-H75( )( )	-	10~75	1.0~7.5	8.80~66.00	1~350	4.0~7.0	Hex(6.35mm)	-
AC 90W	PWEB4411	ACT-H84( )( )	-	10~70	1.0~7.0	8.80-62.00	1~900	4.0~7.0	Hex (6.35mm)	-
