Model :
.png)
.png)
| Capabilities | Repeatability (mm) | ±0.1 | |
| Gear Lead (mm) | 166.6mm | ||
| Upper pulla load (kg) | 120 | ||
| Stroke Pitch (mm) | 500-5000mm / 50mm pitch | ||
| Parts | Gearbox Number (mm) | 90 | |
| Gear Specification (M) | 2M | ||
| High Rigidity Linear Guide (mm) | 20X15.5 | ||

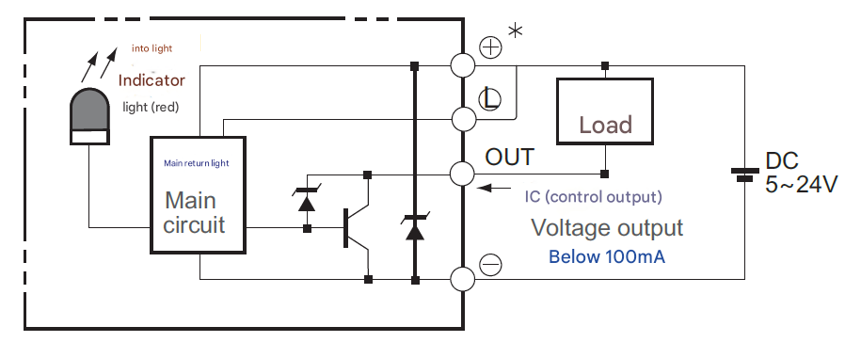

| Home Sensor | Outside | EE-SX672 (NPN) | |
| Build-in | EE-SX674 (NPN) | ||
