KF-300S/KW-317L Saw Wire & Flux

详情

KF-300S/KW-317L
Basicity：2.5
The weld metal has a low-carbon austenitic structure containing 19.5% Cr, 13% Ni, and 3.5% Mo

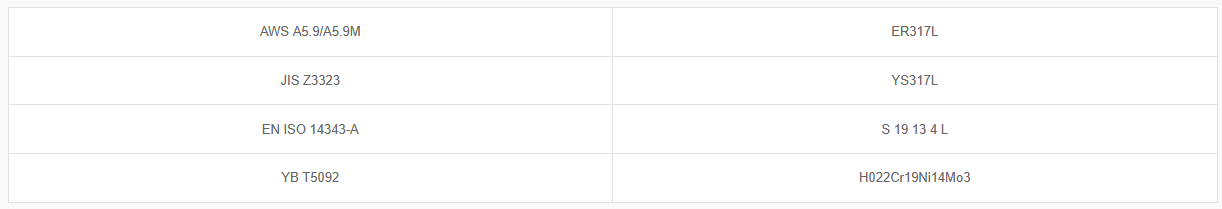

Classification


Application and Features

• The weld metal has a low-carbon austenitic structure containing 19.5% Cr, 13% Ni, and 3.5% Mo
• KF-300S provides good operability and slag detachability, producing welds with an excellent bead appearance. It also offers superior mechanical properties and corrosion resistance
• It is suitable for welding critical chemical containers, and is particularly effective for vessels requiring corrosion resistance to non-oxidizing acids and organic acids, such as sulfuric and sulfurous acid

Welding Position


Welding Instruction

- Please refer to the precautions for submerged arc welding (SAW)

Application
- It is suitable for welding critical chemical containers, and is particularly effective for vessels requiring corrosion resistance to non-oxidizing acids and organic acids, such as sulfuric and sulfurous acid

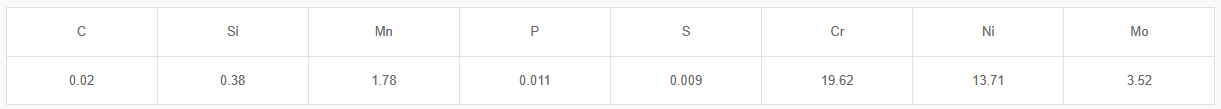

Typical Chemical Composition of  Weld Metal (wt%)

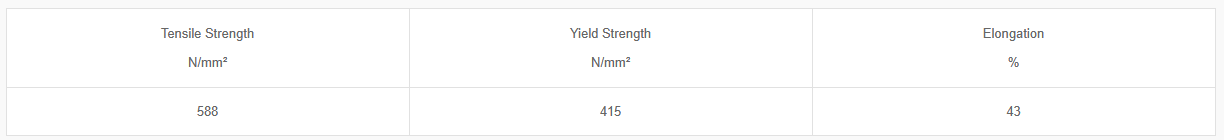

Typical Mechanical Properties of Weld Metal

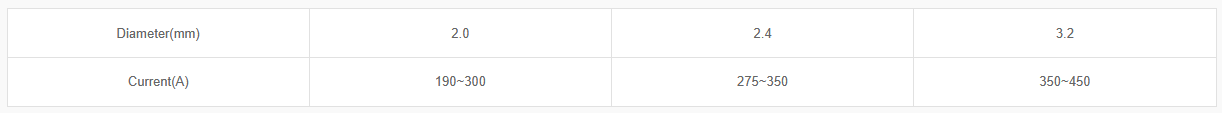

Size and Polarity (DC+)
