Specifications
- Thermosel :: The Thermosel System is ideal for a range of high-temperature applications, including:
Hot Melts
Asphalt
Waxes
Polymers
Why Choose the Thermosel System?
Ensures accurate and reproducible viscosity measurements in elevated temperature environments.
Provides reliable data for industries working with hot melts, asphalt, waxes, polymers, and more.
Offers precise temperature control for stable consistent results.
Features optional accessories to enhance functionality and flexibility.
Streamlined usability allows for easy operation, even for unskilled operations.
Delivers consistent, high-quality results with minimal effort.
What’s Included:
Alignment Bracket: Precise positioning of the spindle and sample chamber.
Thermo Container: Heating Chamber with a safety guard and insulating cap.
Five Disposable Sample Chambers
One removeable sample chamber
Extracting Tools
Optional Magnetic Coupling
Related Accessories:
RheocalcT Software: Enables computer control, data collection, and temperature ramping capabilities.
Disposable Sample Chambers and Spindles: Disposable SC4-27D spindles and HT-2DB chambers are available for purchase in packs of 100, perfect for materials that are difficult to clean.
详情
Thermosel System provides a stable, precisely controlled sample environment for measuring the viscosity of materials at elevated temperatures. With accurate temperature control and integration with standard AMETEK Brookfield viscometers, the Thermosel System ensures reproducible viscosity measurements for challenging materials such as hot melts, asphalt, wax, and polymers.
Features and Benefits
- Accurate Elevated Temperature Testing: The Thermosel allows precise control of sample temperatures up to +300°C, ensuring stable, reproducible results, even for difficult-to-measure materials.
- Small Sample Volume with Temperature Control: The small sample volume insulated sample chamber reduces temperature gradients, resulting in more consistent data. The rotating spindle acts as a built-in stirring device, further improving accuracy.
- Programmable Temperature Controller: Offers single or up to 10 programmable set points for automated temperature control. Temperature ramping between set points is also available when used with RheocalcT software.
- Magnetic Coupling Option: Available with an optional magnetic spindle coupling system that allows quick attachment and removal of spindles, helping to prevent damage and streamline operation.
- Disposable Sample Chambers and Spindles: For materials that are difficult to clean, the Thermosel supports disposable sample chambers and spindles (SC4-27D), ideal for asphalt or other sticky substances.

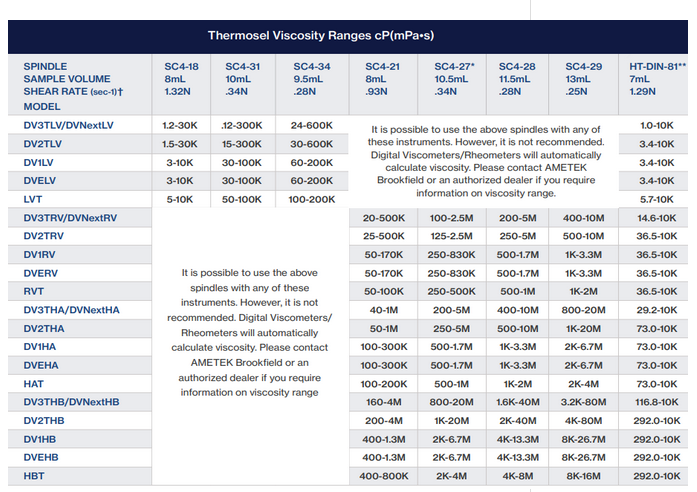

Spindle Types (Sample Volume in mL) and Viscosity Ranges (cP/mPa·s):
- SC4-18 (8mL, 132N)
- DV3TLV/DVNextLV:1.2-30K
- DV2TLV: 1.5-30K
- DV1LV: 3-10K
- DVELV: 3-10K
- LVT: 5-10K
- RVT: 20-500K
- SC4-31 (10mL, .34N)
- DV3TLV/DVNextLV: 0.12-300K
- DV2TLV: 15-300K
- DV1LV: 30-100K
- DVELV: 30-100K
- LVT: 50-100K
- RVT: 100-2.5M
- SC4-34 (9.5mL, .28N)
- DV3TLV/DVNextLV: 24-600K
- DV2TLV: 30-600K
- DV1LV: 60-200K
- DVELV: 60-200K
- LVT: 100-200K
- RVT: 200-5M
- SC4-21 (8mL, .93N)
- Compatible models: ranges 100-2.5M to 400-10M
- SC4-27 (10.5mL, .34N)
- Compatible models: ranges 125-2.5M to 500-10M
- SC4-28 (11.5mL, .28N)
- Compatible models: ranges 250-500K to 800-20M
- SC4-29 (13mL, .25N)
- Compatible models: ranges 250-1.7M to 1K-3.3M
- HT-DIN-81 (7mL, 1.29N)
- Compatible models: ranges 1.0-10K to 292.0-10K
- Viscometer/ Rheometer Models:
- Compatible with all digital viscometers/rheometers but not recommended. The system automatically calculates viscosity.
- Additional Spindle Notes:
- Disposable spindle options are available.
- Magnetic coupling is an option for spindles to ease operation and reduce damage risk from frequent changes.
.png)
M=1 million K=1 thousand N=RPM cP=centipoise mPa·s=Millipascal·seconds
† Spindle SC4-18 1.32x10(rpm)=13.2 sec-1
*Optional disposable SC4-27D spindle is available in quantities of 100, Part No. SC4-27D-100. Requires special chuck/closer, Part No. SC4-DSY, for attachment to viscometer.
**The 81 spindle, Part No. HT-DIN-81, works in an HT-2 or HT-2DB chamber.
